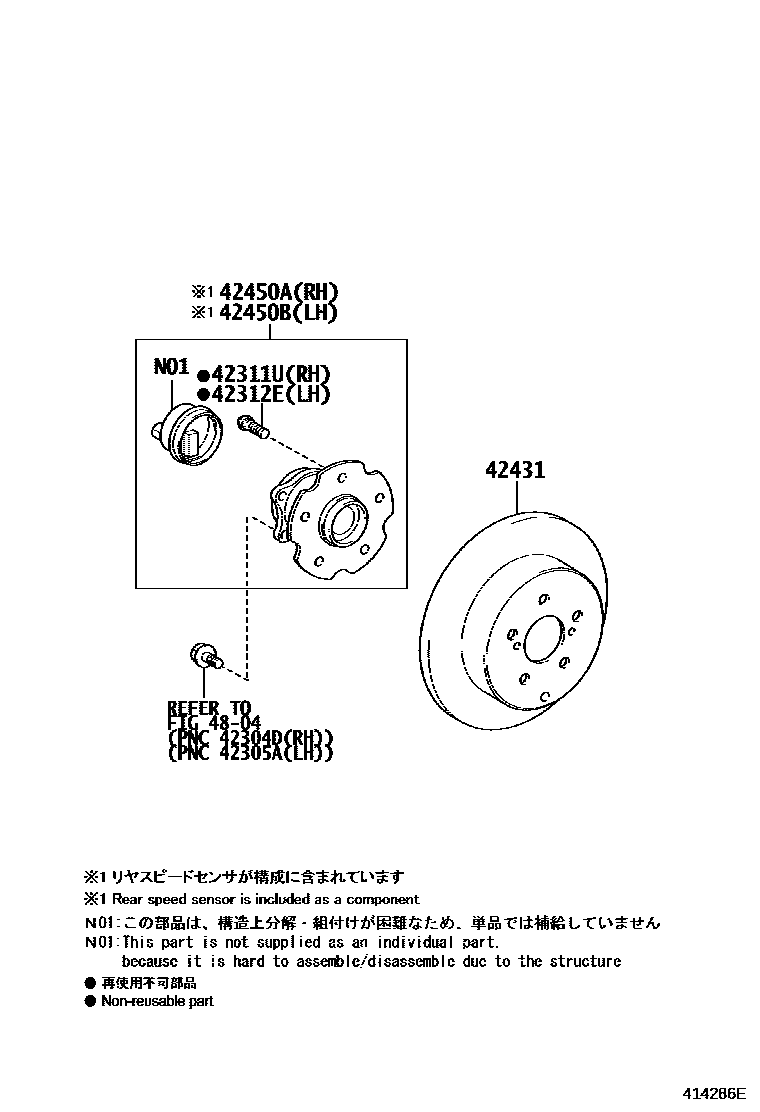

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202001

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iAGH3#,AYH30,GGH3#201501-201801

42431DISC, REAR

main42431-58030×2iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-58020iAGH35,AYH30,GGH35201501-201801

main42450-28030iAGH30..07S..Z;AGH30,GGH30..ALPHD202001

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-58020iAGH35,AYH30,GGH35201501-201801

main42450-28030iAGH30..07S..Z;AGH30,GGH30..ALPHD202001

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

6 parts on this diagram · 4 diagrams in section
