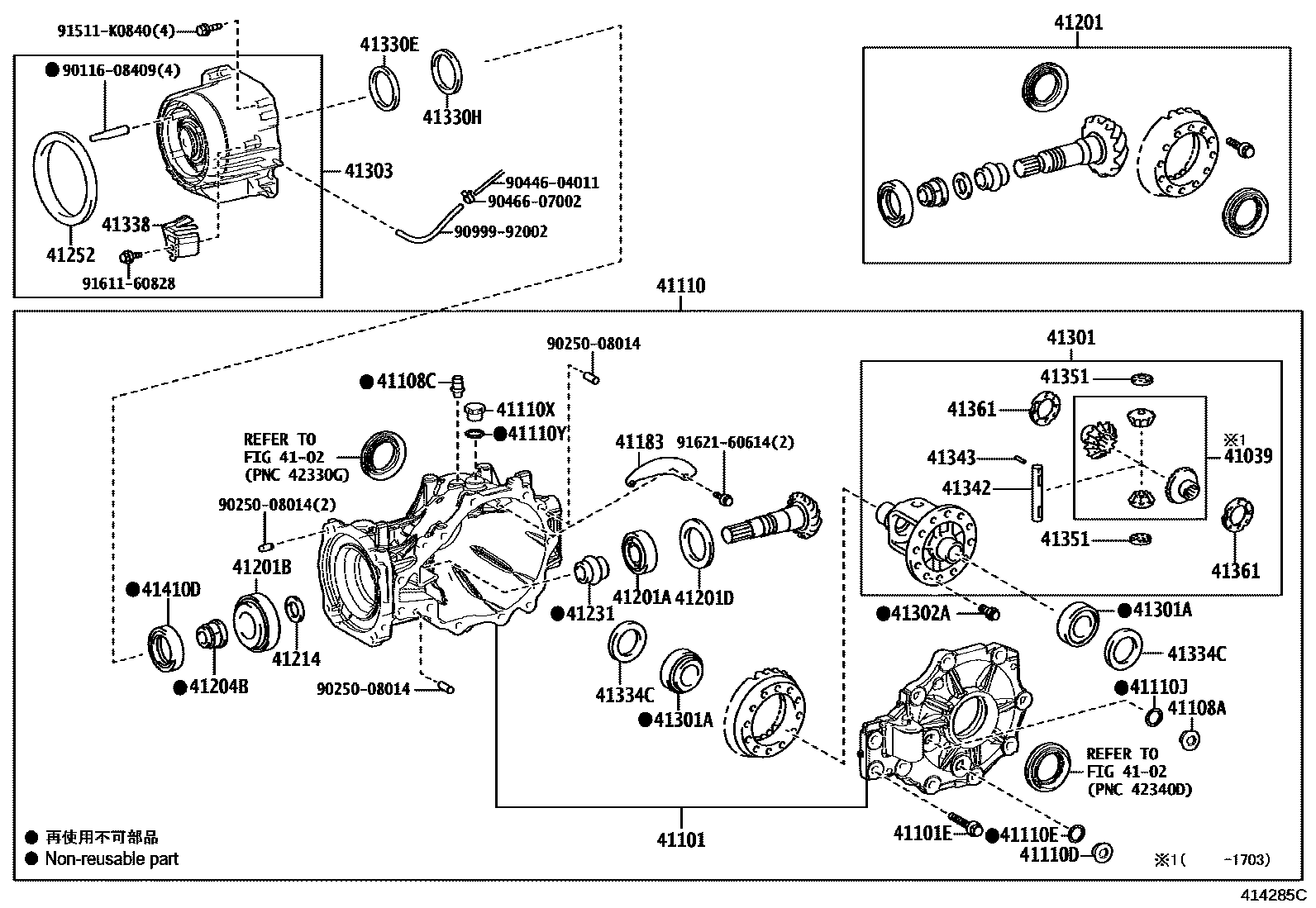

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-48030iAGH35,GGH35201501-201703

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-48012iAGH35,GGH35201501-201512

main41101-48013iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201512-202104

41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)

main90105-10371iAGH35,GGH35201501-202104

41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)

main90341-18023iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)

main90930-03075iAGH35,GGH35201501-202104

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-58030iAGH35,GGH35201501-202104

41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)

main90341-18051iAGH35,GGH35201501-202104

41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)

main12157-10010iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)

main12157-10010iAGH35,GGH35201501-202104

41110XPLUG (FOR DIFFERENTIAL INSPECTION)

main90341-18006iAGH35,GGH35201812-202104

main90341-18034iAGH35,GGH35201501-201811

41110YGASKET (FOR DIFFERENTIAL INSPECTION PLUG)

main12157-10010iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL

main41183-48010iAGH35,GGH35201501-202104

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-49165iAGH35,GGH35201501-201911

main41201-49166iAGH35,GGH35201911-202104

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35154iAGH35,GGH35201501-202104

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30099iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90564-35041iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-35043iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-35045iAGH35,GGH35201501-202104

main90564-35047iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-35049iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-35051iAGH35,GGH35201501-202104

main90564-35053iAGH35,GGH35201501-202104

main90564-35055iAGH35,GGH35201501-202104

main90564-35057iAGH35,GGH35201501-202104

main90564-35059iAGH35,GGH35201501-202104

main90564-35061iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-35063iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-35065iAGH35,GGH35201501-202104

main90564-35071iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-35073iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-35075iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-35077iAGH35,GGH35201501-202104

main90564-35079iAGH35,GGH35201501-202104

main90564-35081iAGH35,GGH35201501-202104

main90564-35083iAGH35,GGH35201501-202104

main90564-35085iAGH35,GGH35201501-202104

main90564-35087iAGH35,GGH35201501-202104

main90564-35089iAGH35,GGH35201501-202104

main90564-35091iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-35093iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-35095iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-35165iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-35167iAGH35,GGH35201501-202104

41204BNUT (FOR REAR DRIVE PINION)

main90178-30001iAGH35,GGH35201501-202104

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main90560-30012iAGH35,GGH35201501-202104

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-33030iAGH35,GGH35201501-202104

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-42013iAGH35,GGH35201501-202104

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-48060iAGH35,GGH35201501-202104

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-38048iAGH35,GGH35201501-202104

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-11060iAGH35,GGH35201501-202104

41303COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL

main41303-58010iAGH35,GGH35201501-202104

41330EWASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)

main90208-74003iAGH35,GGH35201501-202104

41330HSPACER (FOR TRANSMISSION COUPLING)

main90560-68002iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90564-30075iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-30076iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-30077iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-30078iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-30079iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-30080iAGH35,GGH35201501-202104

main90564-30081iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-30082iAGH35,GGH35201501-202104

main90564-30083iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-30084iAGH35,GGH35201501-202104

main90564-30085iAGH35,GGH35201501-202104

main90564-30086iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-30088iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-30089iAGH35,GGH35201501-202104

main90564-30090iAGH35,GGH35201501-202104

main90564-30091iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-30092iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-30093iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-30094iAGH35,GGH35201501-202104

main90564-30095iAGH35,GGH35201501-202104

main90564-30096iAGH35,GGH35201501-202104

main90564-30097iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-30098iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-30099iAGH35,GGH35201501-202104

main90564-30100iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-30101iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-30102iAGH35,GGH35201501-202104

main90564-30103iAGH35,GGH35201501-202104

main90564-30104iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

main90564-30105iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-30106iAGH35,GGH35201501-202104

main90564-30107iAGH35..07S..Z;AGH35,GGH35..ALPHD201501-202104

main90564-30108iAGH35,GGH35201501-202104

main90564-30109iAGH35,GGH35201501-202104

main90564-30110iAGH35,GGH35201501-202104

main90564-30111iAGH35,GGH35201501-202104

main90564-30112iAGH35,GGH35201501-202104

main90564-30113iAGH35,GGH35201501-202104

main90564-30114iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)201501-202104

41338BRACKET, CONNECTOR CLAMP

main41338-20010iAGH35,GGH35201501-202104

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-48030iAGH35,GGH35201501-202001

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-04053iAGH35,GGH35201501-202001

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-10030iAGH35,GGH35201501-202001

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-10070iAGH35,GGH35201501-202001

main41361-10080iAGH35,GGH35201501-202001

main41361-10090iAGH35,GGH35201501-202001

main41361-10100iAGH35,GGH35201501-202001

main41361-10110iAGH35,GGH35201501-202001

main41361-10120iAGH35,GGH35201501-202001

41410DSEAL, OIL DIAPHRAGM

main90310-54003iAGH35,GGH35201501-202104

9011608409

main90116-08409

9025008014

main90250-08014

9044604011

main90446-04011

9046607002

main90466-07002

9099992002

main90999-92002

91511K0840

main91511-K0840

9161160828

main91611-60828

9162160614

main91621-60614

42 parts on this diagram · 2 diagrams in section
