IGNITION COIL & SPARK PLUG / GLOW PLUG

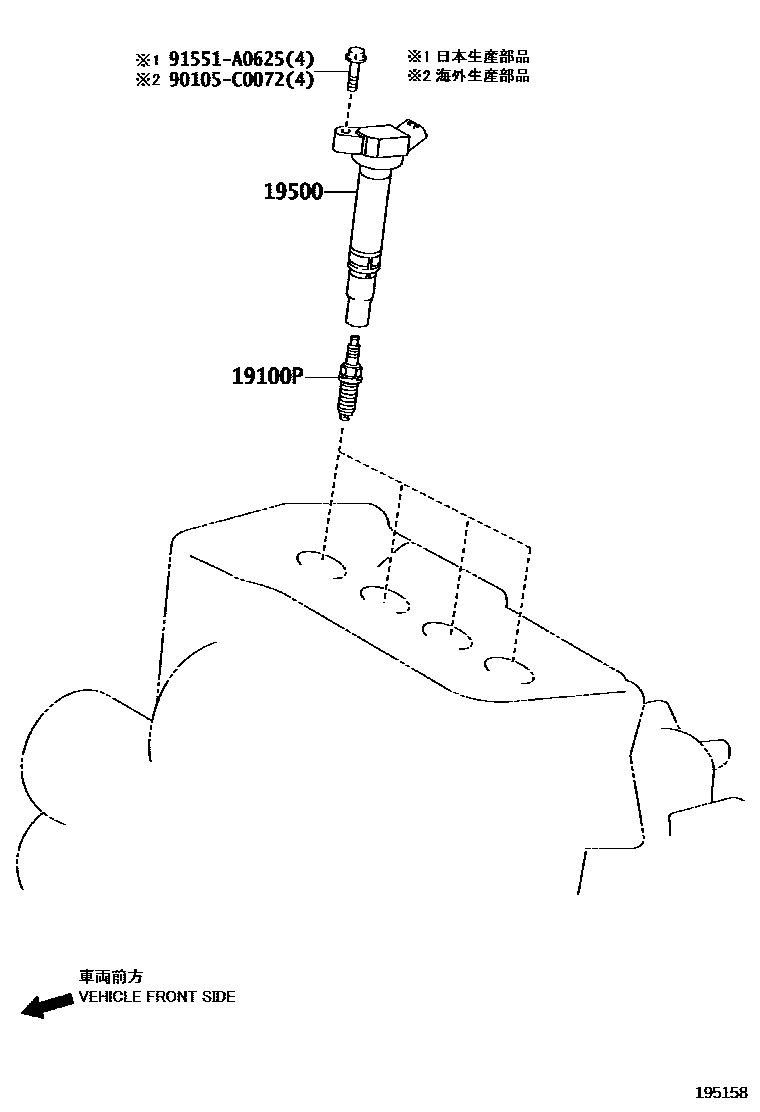

Parts diagram

19100PPLUG, SPARK

main90919-01233×4i201801-202001

main90919-01247×6i201501-201801

main90919-01259×4i201801-202001

main90919-01263×6i202001-202104

main90919-C1001×4i201501-201507

main90919-C1008×4i201507-201801

19500COIL ASSY, IGNITION

main90919-02255×6i201501-201801

main90919-02256×4i202001

main90919-02273×6i202307

main90919-02280×6i202001-202104

main90919-C2004×4i201801-202001

90105C0072

main90105-C0072

91551A0625

main91551-A0625

4 parts on this diagram · 3 diagrams in section
