EXHAUST PIPE

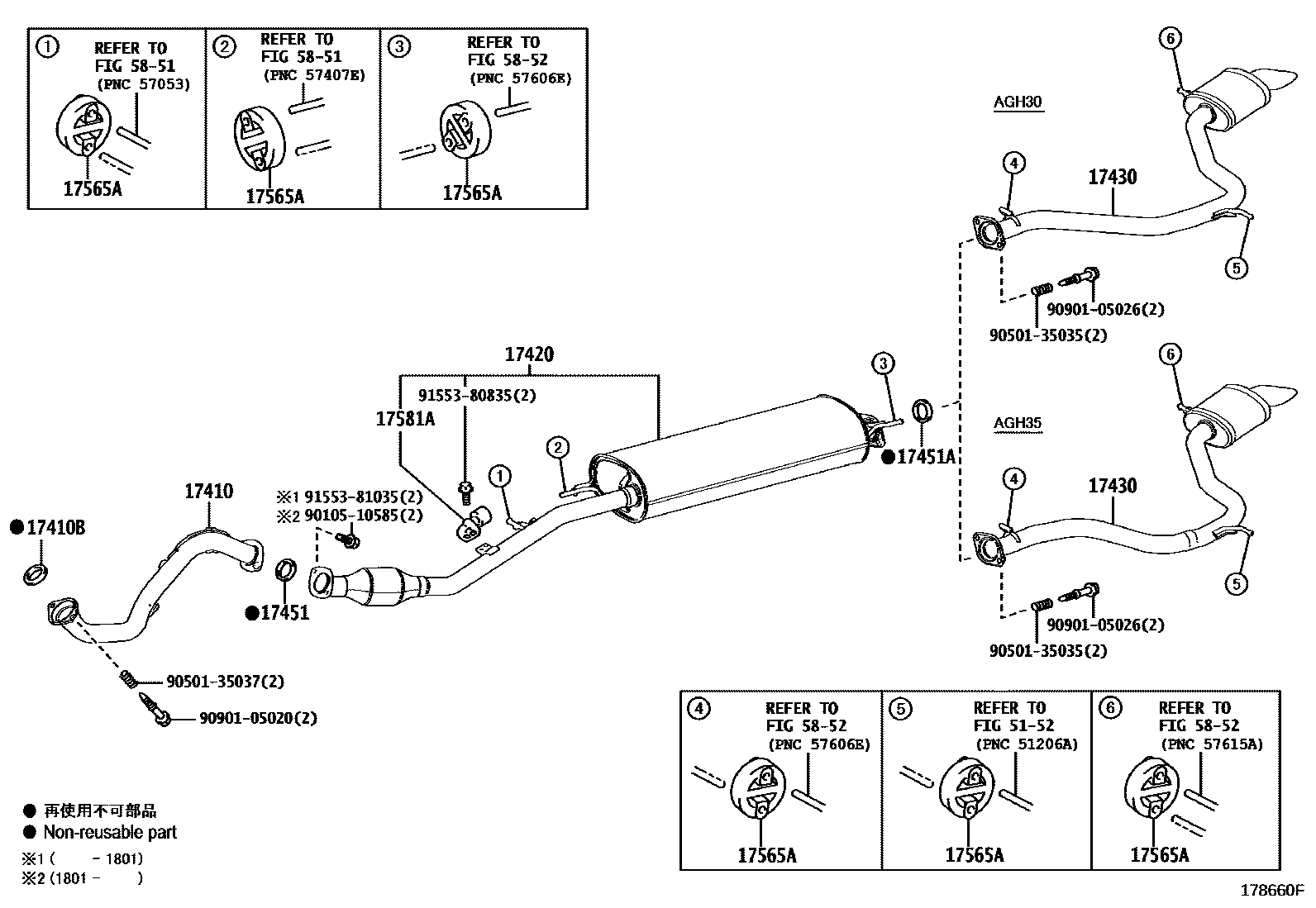

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

main17410-31630i201501-201801

main17410-31L90i202001-202104

main17410-36460i202001

main17410-36470i201801-202001

17410BGASKET, EXHAUST PIPE

main17451-28040i202001

main90917-06089×2i202001-202104

17420PIPE ASSY, EXHAUST, CENTER

main17420-36240i201801-202001

main17420-36260i202001

17430PIPE ASSY, EXHAUST, TAIL

main17430-31D70i201501-201705

main17430-31D71i202001-202011

main17430-31D90i201501-201705

main17430-31D91i202001

main17430-36370i201501-201705

main17430-36371i201801-202001

main17430-36380i201501-201705

main17430-36381i201801-202001

main17430-V2010i202012-202104

main17430-V2020i202012-202205

main17430-V2120i202205

17451GASKET, EXHAUST PIPE

main90917-06078i201501-201801

main90917-06089i201501-201801

17451AGASKET, EXHAUST PIPE, NO.2

main17451-28022i201501-201801

main17451-28040i201801-202001

main90917-06090i202001

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×6i201801-202001

17581ADAMPER, EXHAUST PIPE

main17581-75060i201501-201801

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9010510585

main90105-10585

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155380835

main91553-80835

9155381035

main91553-81035

18 parts on this diagram · 5 diagrams in section
