WATER PUMP

0001 1 0002 1 0003 1 0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

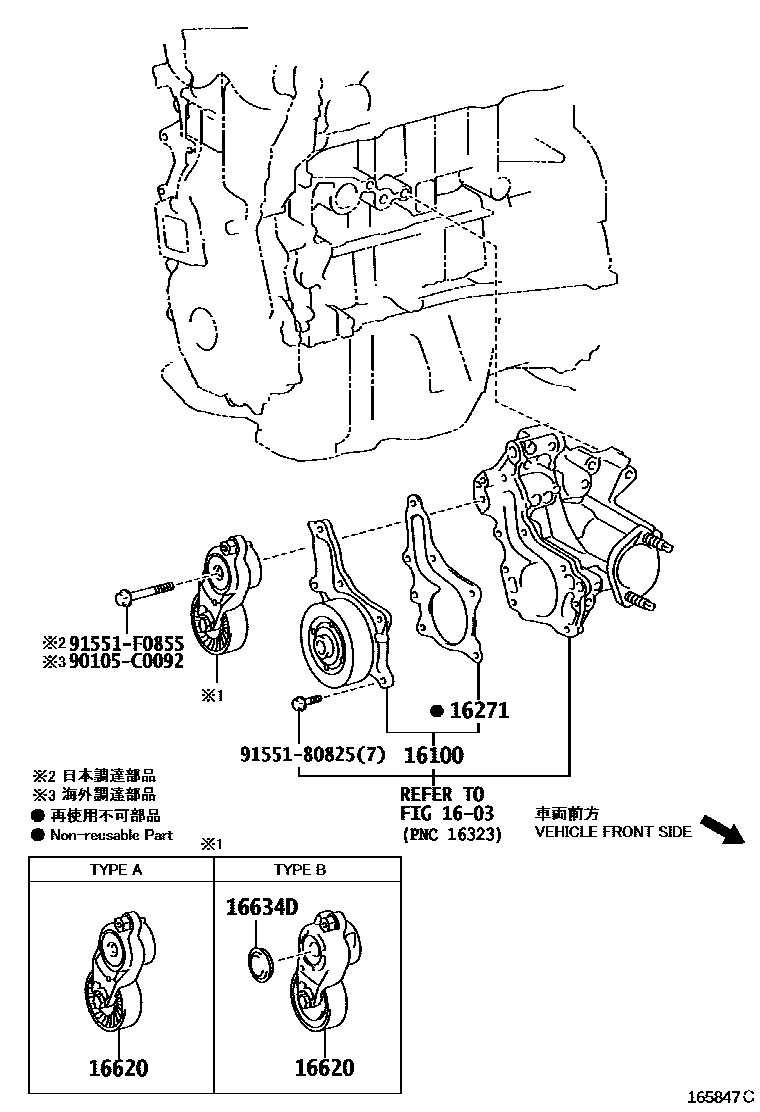

16100PUMP ASSY, ENGINE WATER

main16100-09600i2ARFE..AGH3#201501-201801

main16100-39456i2GRFE..GGH3#201501-201801

main16100-39515i2ARFE..AGH3#..ALPHD;2ARFE..AGH3#..07S..Z202001-202107

main16100-39516i2ARFE..AGH3#..ALPHD;2ARFE..AGH3#..07S..Z202107

main16100-39575i2ARFXE..AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main16100-39615i2GRFKS..GGH3#202001-202004

main16100-39616i2GRFKS..GGH3#..ALPHD202004

16271GASKET, WATER PUMP

main16271-31030i2GRFE..GGH3#201501-201801

main16271-31050i2GRFKS..GGH3#..VFIRE202001-202104

main16271-36010i2ARFE..AGH3#; 2ARFE..AGH30201501-201801

main16271-36030i2ARFXE..AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V042i2AR#..AGH3#,AYH30201801-202001

main16620-0V050i2AR#..AGH3#,AYH30201501-201508

main16620-0V051i2AR#..AGH3#,AYH30201801-202001

main16620-31040i2GRFE..GGH3#201501-201801

main16620-31090i2GRFKS..GGH3#201801-202001

main16620-36013i2AR#..AGH3#,AYH30201812-202001

main16620-36011i2ARFE..AGH30201501-201509

main16620-36012i2ARFE..AGH30201510-201712

16634DCOVER, DUST

main16628-0V010i2AR#..AGH3#,AYH30201501-201801

90105C0092

main90105-C0092

9155180825

main91551-80825

91551F0855

main91551-F0855

8 parts on this diagram · 4 diagrams in section
