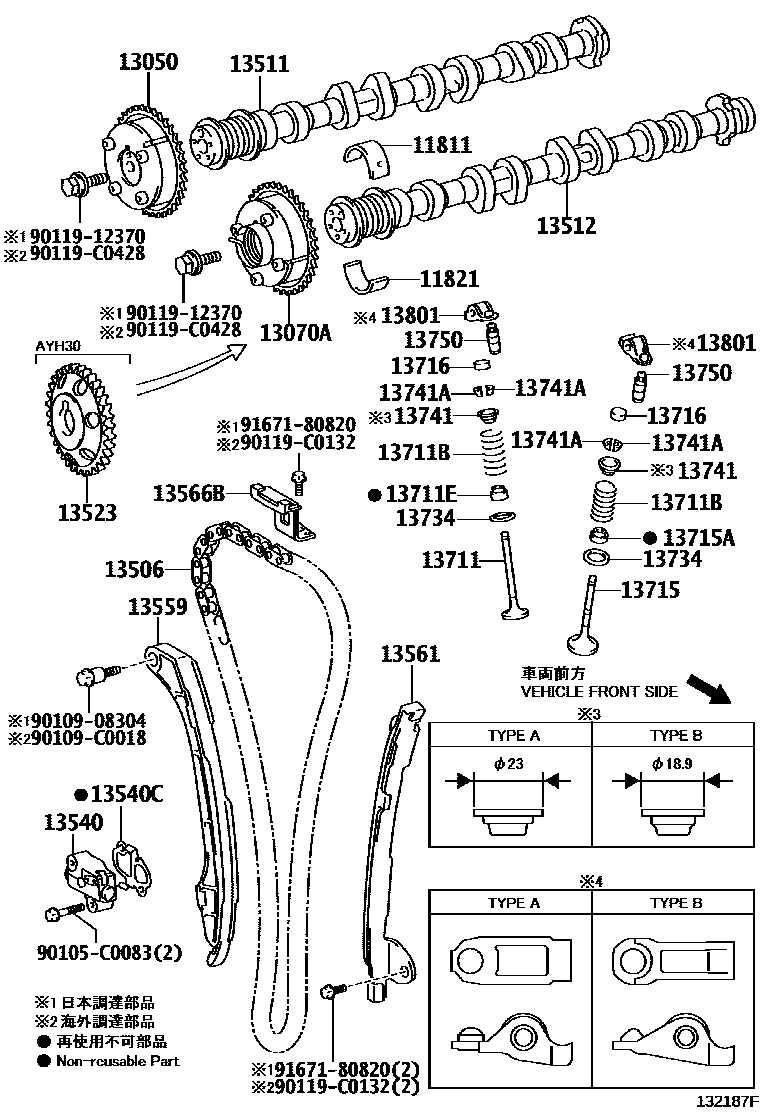

CAMSHAFT & VALVE

0001 1*347 0002 1*524 0003 1 0004 1

11811BEARING, CAMSHAFT, NO.1

main11811-0V010i2AR#..AGH3#,AYH30201801-202001

main11811-36010i2ARFE..AGH3#..08S..Z;2AR#..AGH3#,AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

11821BEARING, CAMSHAFT, NO.2

main11821-0V010i2AR#..AGH3#,AYH30201801-202001

main11821-36010i2AR#..AGH3#,AYH30201812-202001

13050GEAR ASSY, CAMSHAFT TIMING

main13050-0V070i2ARFE..AGH3#201501-201801

main13050-0V080i2ARFXE..AYH30201501-201801

main13050-31170×2i2GRFE..GGH3#201501-201801

main13050-31200×2i2GRFKS..GGH3#..VFIRE202001-202104

main13050-36020i2ARFXE..AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main13050-36030i2ARFE..AGH3#..08S..Z;2ARFE..AGH3#..VFIRE..(V,X)202001-202104

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-0V030i2ARFE..AGH3#201501-201801

main13070-31070×2i2GRFKS..GGH3#201801-202001

main13070-36030i2ARFE..AGH3#..08S..Z;2ARFE..AGH3#..VFIRE..(V,X)202001-202104

13506CHAIN SUB-ASSY

main13506-0V020i2ARFXE..AYH30201801-202001

main13506-0V030i2ARFE..AGH3#201801-202001

main13506-31031i2GRFE..GGH3#201501-201801

main13506-31060i2GRFKS..GGH3#201801-202001

main13506-36030i2ARFE..AGH3#..08S..Z;2AR#..AGH3#,AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

13511CAMSHAFT

main13501-0V020i2ARFE..AGH3#201501-201801

main13501-0V030i2ARFXE..AYH30201801-201901

main13501-31091i2GRFE..GGH3#201708-201801

main13501-31100i2GRFE..GGH3#201501-201708

main13501-36030i2ARFXE..AYH30..Z;2ARFXE..AYH30..ALPHD202001

main13501-36050i2ARFE..AGH3#..ALPHD;2ARFE..AGH3#..07S..Z202001

13512CAMSHAFT, NO.2

main13502-0V020i2ARFE..AGH3#201501-201801

main13502-0V030i2ARFXE..AYH30201501-201801

main13502-31061i2GRFE..GGH3#201708-201801

main13502-31080i2GRFE..GGH3#201501-201708

main13502-31110i2GRFKS..GGH3#201801-202001

main13502-36020i2ARFXE..AYH30..Z;2ARFXE..AYH30..ALPHD202001

main13502-36030i2ARFE..AGH3#201812-202001

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-36020i2ARFXE..AYH30201801-202001

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0V040i2AR#..AGH3#,AYH30201501-201801

main13540-31050i2GRFKS..GGH3#201801-202001

main13540-31060i2GRFE..GGH3#201501-201801

main13540-36041i2AR#..AGH3#,AYH30..ALPHD;2AR#..AGH3#,AYH30..07S..Z202001

main13540-36040i2ARFE..AGH30201801-201806

13540CGASKET(FOR CHAIN TENSIONER)

main13552-0V020i2AR#..AGH3#,AYH30201501-201801

main13552-36010i2AR#..AGH3#,AYH30201812-202001

13559SLIPPER, CHAIN TENSIONER

main13559-0V020i2ARFXE..AYH30201801-202001

main13559-0V040i2ARFE..AGH3#201501-201801

main13559-31020i2GRFE..GGH3#201501-201801

main13559-31040i2GRFKS..GGH3#201801-202001

main13559-36040i2AR#..AGH3#,AYH30201812-202001

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-0V020i2ARFXE..AYH30201501-201801

main13561-0V040i2ARFE..AGH3#201801-202001

main13561-31021i2GRFE..GGH3#201501-201801

main13561-31040i2GRFKS..GGH3#..ALPHD202001

main13561-36030i2AR#..AGH3#,AYH30..ALPHD;2AR#..AGH3#,AYH30..07S..Z202001

13566BGUIDE, TIMING CHAIN

main13566-0V021i2AR#..AGH3#,AYH30201801-202001

main13566-36011i2ARFE..AGH3#..08S..Z;2AR#..AGH3#,AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

13711VALVE, INTAKE

main13711-0V020×8i2AR#..AGH3#,AYH30201801-202001

main13711-31101×12i2GRFKS..GGH3#..VFIRE202001-202104

main13711-36060×8i2ARFE..AGH3#..08S..Z;2AR#..AGH3#,AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

13711BSPRING, COMPRESSION(FOR INNER)

main90501-33027×24i2GRFE..GGH3#201501-201801

main90501-34022×16i2ARFE..AGH3#..08S..Z;2AR#..AGH3#,AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main90501-34023×24i2GRFKS..GGH3#..ALPHD202001

main90501-C0019×16i2AR#..AGH3#,AYH30201501-201602

main90501-C0053×16i2AR#..AGH3#,AYH30201801-202001

main90501-34016×16i2ARFE..AGH30201501-201505

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101×8i2ARFE..AGH3#..08S..Z;2AR#..AGH3#,AYH30..VFIRE..(EL,ELZ,V,X,ZR); 2GRFKS..GGH3#..VFIRE202001-202104

main90913-T2001×8i2AR#..AGH3#,AYH30201501-201801

13715VALVE, EXHAUST

main13715-0V020×8i2AR#..AGH3#,AYH30201801-202001

main13715-31150×12i2GRFKS..GGH3#..ALPHD202001

main13715-36020×8i2ARFE..AGH3#..08S..Z;2AR#..AGH3#,AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02112×8i2AR#..AGH3#,AYH30..ALPHD;2AR#..AGH3#,AYH30..07S..Z; 2GRFKS..GGH3#..ALPHD202001

main90913-T2003×8i2AR#..AGH3#,AYH30201801-202001

13716CAP, VALVE STEM

main13716-0Y010×16i2AR#..AGH3#,AYH30201801-202001

main13716-75020×16i2AR#..AGH3#,AYH30; 2ARFE..AGH30; 2GRFE..GGH3#201501-201801

13734SEAT, VALVE SPRING

main13734-0P020×16i2AR#..AGH3#,AYH30201801-202001

main13734-62020×24i2ARFE..AGH30; 2GRFE..GGH3#201501-201801

13741RETAINER, VALVE SPRING

main13741-0Y020×16i2AR#..AGH3#,AYH30201501-201602

main13741-0Y050×16i2AR#..AGH3#,AYH30201602-201801

main13741-20021×16i2AR#..AGH3#,AYH30201501-201602

main13741-36010×16i2AR#..AGH3#,AYH30; 2GRFKS..GGH3#201801-202001

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×48i2AR#..AGH3#,AYH30; 2ARFE..AGH30; 2GRFE..GGH3#201501-201801

main90913-C3002×32i2AR#..AGH3#,AYH30201801-202001

13750ADJUSTER ASSY, VALVE LASH

main13750-0V020×16i2AR#..AGH3#,AYH30201501-201602

main13750-0V030×16i2AR#..AGH3#,AYH30201602-201801

main13750-31030×24i2GRFE..GGH3#201501-201801

main13750-36020×16i2ARFE..AGH3#..08S..Z;2AR#..AGH3#,AYH30..VFIRE..(EL,ELZ,V,X,ZR); 2GRFKS..GGH3#..VFIRE202001-202104

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-0P020×16i2AR#..AGH3#,AYH30201501-201602

main13801-0V020×16i2AR#..AGH3#,AYH30201602-201801

main13801-36020×16i2AR#..AGH3#,AYH30..ALPHD;2AR#..AGH3#,AYH30..07S..Z; 2GRFKS..GGH3#..ALPHD202001

main13801-23011×16i2ARFE..AGH30201501-201505

90105C0083

main90105-C0083

9010908304

main90109-08304

90109C0018

main90109-C0018

9011912370

main90119-12370

90119C0132

main90119-C0132

90119C0428

main90119-C0428

9167180820

main91671-80820

31 parts on this diagram · 4 diagrams in section
