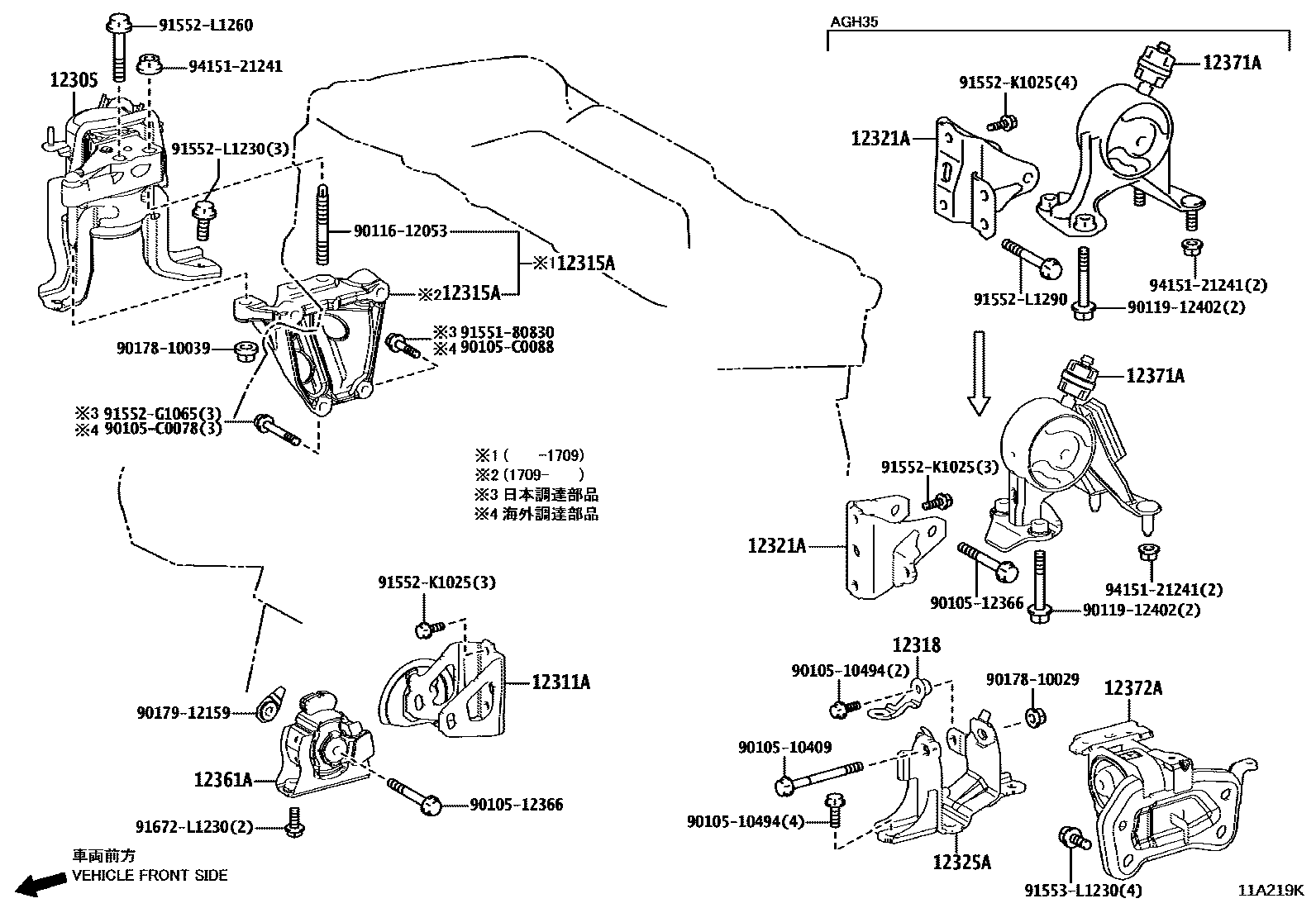

MOUNTING

0001 1 0002 1 0003 1 0004 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-31060i2GRFE..GGH3#201501-201801

main12305-31110i2GRFKS..GGH3#..VFIRE202001-202104

main12305-36070i2ARFE..AGH3#..08S..Z;2ARFE..AGH3#..VFIRE..(V,X)202001-202104

main12305-36080i2ARFXE..AYH30201801-202001

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-28301i2ARFXE..AYH30201501-201801

main12311-31180i2GRFE..GGH3#201501-201801

main12311-31260i2GRFKS..GGH3#201801-202001

main12311-36150i2ARFE..AGH3#..08S..Z;2ARFE..AGH3#..VFIRE..(V,X)202001-202104

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31130i2GRFE..GGH3#201501-201801

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0V030i2AR#..AGH3#,AYH30201501-201709

main12315-0V031i2AR#..AGH3#,AYH30201709-201801

main12315-31160i2GRFKS..GGH3#..ALPHD202001

main12315-36010i2AR#..AGH3#,AYH30; 2ARFE..AGH30201501-201709

main12315-36011i2AR#..AGH3#,AYH30; 2ARFE..AGH30201709-201801

12318STAY, ENGINE MOUNTING, LH

main12318-36010i2ARFE..AGH3#..08S..Z;2ARFE..AGH3#..VFIRE..(V,X)202001-202104

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-31170i2GRFE..GGH30201501-201801

main12321-31180i2GRFE..GGH35201501-201801

main12321-31231i2GRFKS..GGH30201801-202001

main12321-31241i2GRFKS..GGH35..VFIRE202001-202104

main12321-36090i2ARFXE..AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main12321-36130i2ARFE..AGH30201501-201801

main12321-36140i2ARFE..AGH35201801-202001

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-31020i2GRFE..GGH3#201501-201801

main12325-31090i2GRFKS..GGH3#201801-202001

main12325-36070i2ARFXE..AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main12325-36090i2ARFE..AGH3#201501-201801

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31460i2GRFE..GGH3#201501-201801

main12361-31530i2GRFKS..GGH3#201801-202001

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-36190i2ARFE..AGH3#..ALPHD;2ARFE..AGH3#..07S..Z202001

main12361-36200i2ARFXE..AYH30201501-201801

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-31340i2GRFE..GGH30201501-201801

main12371-31350i2GRFE..GGH35201501-201801

main12371-31450i2GRFKS..GGH30..VFIRE202001-202104

main12371-31460i2GRFKS..GGH35201801-202001

main12371-36150i2ARFE..AGH30201801-202001

main12371-36160i2ARFE..AGH35201801-202001

main12371-36170i2ARFXE..AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-31080i2GRFE..GGH3#201501-201801

main12372-31130i2GRFKS..GGH3#..VFIRE202001-202104

main12372-36090i2ARFE..AGH3#201801-202001

main12372-36100i2ARFXE..AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

9010510409

main90105-10409

9010510494

main90105-10494

9010512366

main90105-12366

90105C0078

main90105-C0078

90105C0088

main90105-C0088

9011612053

main90116-12053

9011912402

main90119-12402

9017810029

main90178-10029

9017810039

main90178-10039

9017912159

main90179-12159

9155180830

main91551-80830

91552G1065

main91552-G1065

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91552L1260

main91552-L1260

91552L1290

main91552-L1290

91553L1230

main91553-L1230

91672L1230

main91672-L1230

9415121241

main94151-21241

30 parts on this diagram · 4 diagrams in section
