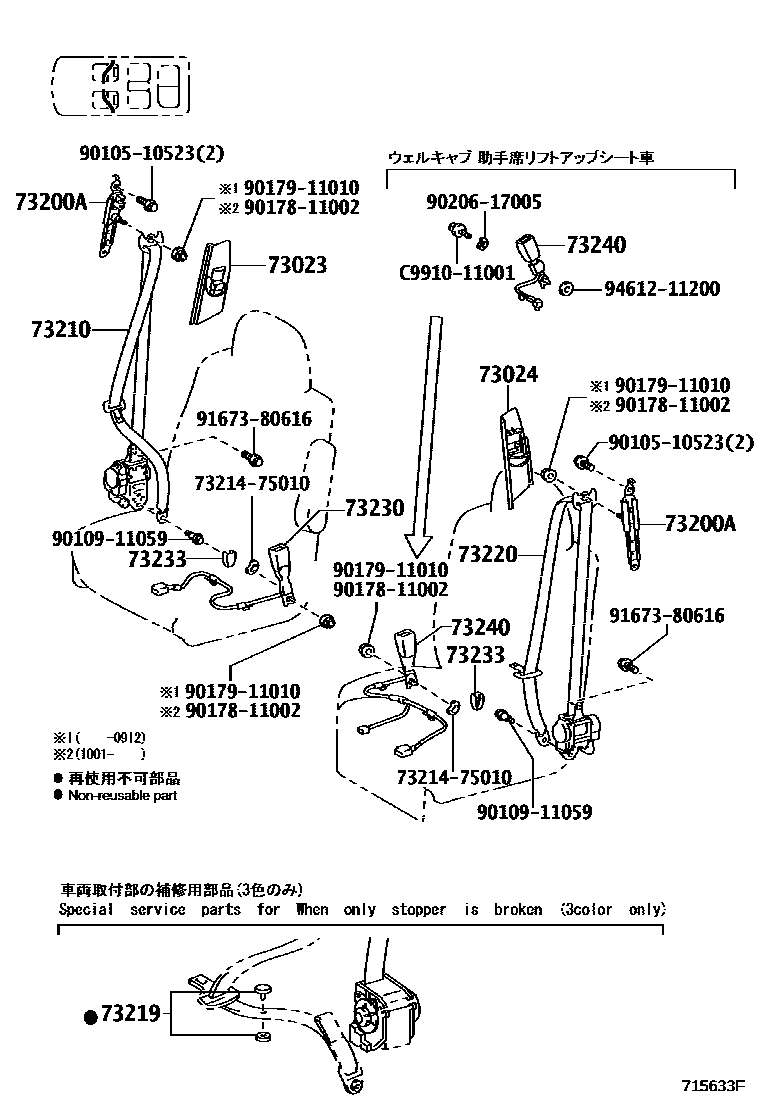

SEAT BELT

0001 1���� ��� 0002 1�� NO.1 ��� 0003 1�� NO.1 ���(���� ������� OR �0004 1�� NO.1 ��� 0005 1�� NO.2 ���

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-30010-A3iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

SHELL,TRIM0#

main73023-30010-B2iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

LT.GRAY,TRIM1#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-30010-A3iANH2#,GGH2#..07S..(240S,350S,35Z)..CBU;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201110

SHELL,TRIM0#

main73024-30010-B2iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201501

LT.GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010×2iANH2#,GGH2#..CBU200804-201110

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-58030-A0iANH2#..07S..240S;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU; GGH2#..07S..(350S,35Z)..CBU200804-201004

main73210-58030-C0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201004

BLACK,TRIM1#

main73210-58031-A1iANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU; GGH2#..07S..(350S,35Z)..CBU201004-201110

main73210-58031-C1iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201004-201110

BLACK,TRIM1#

main73210-58031-C2iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201501

BLACK,TRIM1#

main73210-58020-A0iGGH2#..(350G,35V)..CBU; GGH2#..07S..(350G,35V)..CBU; GGH2#..07S..(350S,35Z)..CBU200804-201004

main73210-58020-C0iGGH2#..07S..(350S,35Z)..CBU200804-201004

main73210-58021-A1iGGH2#..(350G,35V)..CBU; GGH2#..07S..(350G,35V)..CBU; GGH2#..07S..(350S,35Z)..CBU201004-201110

main73210-58021-C1iGGH2#..07S..(350S,35Z)..CBU201004-201110

main73210-58021-C2iATH20,GGH2#..07S..(350S,35Z,HBDSR,HBDZR)..CBU; GGH2#..07S..(350S,35Z)..CBU201110-201501

73219STOPPER, TONGUE PLATE

main73219-33010iANH2#,GGH2#..CBU200804-201110

main73219-33020iANH2#,GGH2#..CBU200804-201110

main73219-33030iANH2#,ATH20,GGH2#..CBU201110-201501

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-58030-A0iANH2#..07S..240S;ANH2#,GGH2#..(240G,240X,24V,24X,350G,350X,35V,35X)..CBU200804-201004

SHELL,TRIM0#

main73220-58030-C0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201004

BLACK,TRIM1#

main73220-58031-A1iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201301

SHELL,TRIM0#

main73220-58031-C1iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201004-201110

BLACK,TRIM1#

main73220-58031-C2iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201110-201301

BLACK,TRIM1#

main73220-58032-A1iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201302-201306

SHELL,TRIM0#

main73220-58032-C2iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201302-201306

BLACK,TRIM1#

main73220-58033-A1iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201307-201501

SHELL,TRIM0#

main73220-58033-C2iANH2#,ATH20,GGH2#..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU201307-201501

BLACK,TRIM1#

main73220-58020-A0iGGH2#..(350G,35V)..CBU; GGH2#..07S..(350G,35V)..CBU; GGH2#..07S..(350S,35Z)..CBU200804-201004

main73220-58020-C0iGGH2#..07S..(350S,35Z)..CBU200804-201004

main73220-58021-A1iGGH2#..(350G,35V)..CBU; GGH2#..07S..(350G,35V)..CBU; GGH2#..07S..(350S,35Z)..CBU201004-201110

main73220-58021-C1iGGH2#..07S..(350S,35Z)..CBU201004-201110

main73220-58021-C2iATH20,GGH2#..07S..(350S,35Z,HBDSR,HBDZR)..CBU; GGH2#..07S..(350S,35Z)..CBU201110-201501

main73220-58040-A0iGGH2#..07S..(350G,35V)..CBU; GGH2#..07S..(350S,35Z)..CBU200804-201004

main73220-58040-C0iGGH2#..07S..(350S,35Z)..CBU200804-201004

main73220-58041-A1iGGH2#..07S..(350G,35V)..CBU; GGH2#..07S..(350S,35Z)..CBU201004-201110

main73220-58041-C1iGGH2#..07S..(350S,35Z)..CBU201004-201110

main73220-58041-C2iANH2#,ATH20,GGH2#..07S..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU; ANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU201110-201501

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-58060-A0iANH2#..07S..240S;ANH2#,GGH2#..(240X,24X,350X,35X)..CBU200804-201003

SHELL,TRIM0#

main73230-58060-C0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201003

BLACK,TRIM1#

main73230-58061-A0iANH2#..07S..240S;ANH2#,GGH2#..(240X,24X,350X,35X)..CBU201004-201110

SHELL,TRIM0#

main73230-58061-C0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201004-201110

BLACK,TRIM1#

main73230-58070-A0iANH2#,GGH2#..(240G,24V,350G,35V)..CBU; GGH2#..07S..(350S,35Z)..CBU200804-201003

main73230-58071-A0iANH2#,GGH2#..(240G,24V,350G,35V)..CBU; GGH2#..07S..(350S,35Z)..CBU201004-201110

main73230-58072-A0iANH2#,ATH20,GGH2#..(240G,24V,350G,35V,HBDG,HBDV)..CBU201110-201501

SHELL,TRIM0#

main73230-58050-A0iGGH2#..(350G,35V)..CBU; GGH2#..07S..(350G,35V)..CBU; GGH2#..07S..(350S,35Z)..CBU200804-201003

main73230-58050-C0iGGH2#..07S..(350S,35Z)..CBU200804-201003

main73230-58051-A0iGGH2#..(350G,35V)..CBU; GGH2#..07S..(350G,35V)..CBU; GGH2#..07S..(350S,35Z)..CBU201004-201110

main73230-58051-C0iGGH2#..07S..(350S,35Z)..CBU201004-201110

main73230-58052-A0iATH20,GGH2#..(350G,35V,HBDG,HBDV)..CBU201209-201501

main73230-58052-C0iANH2#,ATH20,GGH2#..07S..(240S,24Z,350S,35Z,HBDSR,HBDZR)..CBU; ATH20..(HBDSR,HBDZR)..CBU201209-201501

main73230-58070-C0iGGH2#..07S..(350S,35Z)..CBU200804-201003

main73230-58071-C0iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU201106-201110

main73230-58072-C0iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU201110-201209

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-A1×2iANH2#,ATH20,GGH2#..(240G,240X,24V,24X,350G,35V,HBDG,HBDV,HBDX)..CBU201110-201501

SHELL,TRIM0#

main73233-60020-C0×2iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201110

BLACK,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-58030-A0iANH2#..07S..240S;ANH2#,GGH2#..(240X,24X,350X,35X)..CBU200804-201003

SHELL,TRIM0#

main73240-58030-C0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU200804-201003

BLACK,TRIM1#

main73240-58031-A0iANH2#..(240X,24X)..CBU201110-201501

SHELL,TRIM0#

main73240-58031-C0iANH2#,GGH2#..(240S,24Z,350S,35Z)..CBU201004-201110

BLACK,TRIM1#

main73240-58040-A0iANH2#,GGH2#..(240G,24V,350G,35V)..CBU; GGH2#..07S..(350S,35Z)..CBU200804-201003

main73240-58041-A0iANH2#,GGH2#..(240G,24V,350G,35V)..CBU201110-201501

SHELL,TRIM0#

main73240-58080-A0iATH20..HBDX..CBU201112-201501

SHELL,TRIM0#

main73240-58020-A0iGGH2#..(350G,35V)..CBU; GGH2#..07S..(350G,35V)..CBU; GGH2#..07S..(350S,35Z)..CBU200804-201003

main73240-58020-C0iGGH2#..07S..(350S,35Z)..CBU200804-201003

main73240-58021-A0iGGH2#..(350G,35V)..CBU201209-201501

main73240-58021-C0iANH2#,GGH2#..07S..(240S,24Z,350S,35Z)..CBU201209-201501

main73240-58040-C0iGGH2#..07S..(350S,35Z)..CBU200804-201003

main73240-58041-C0iGGH2#..07S..(350S,35Z)..CBU201004-201110

main73240-58060-A0supersedes 73240-58070-A0iATH20..HBDG,HBDV201112-201501

main73240-58060-C0iATH20..(HBDSR,HBDZR)..CBU201209-201501

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9020617005

main90206-17005

9167380616

main91673-80616

9461211200

main94612-11200

C991011001

mainC9910-11001

18 parts on this diagram · 5 diagrams in section
