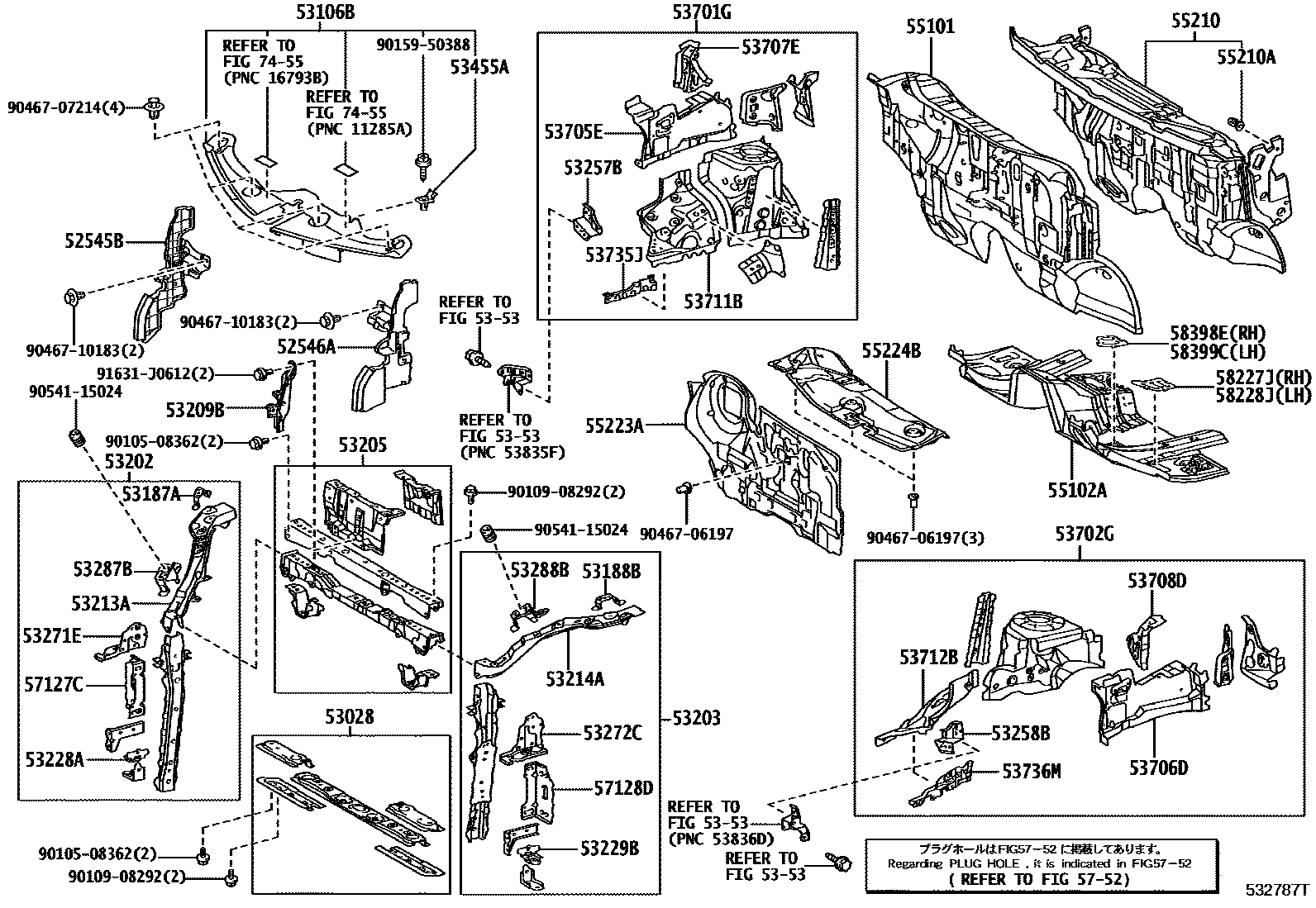

FRONT FENDER APRON & DASH PANEL
52545BSEAL, FRONT BUMPER SIDE, NO.2 RH
52546ASEAL, FRONT BUMPER SIDE, NO.2 LH
53028SUPPORT SUB-ASSY, RADIATOR, LOWER
53106BCOVER SUB-ASSY, RADIATOR
53187ASTAY, RADIATOR SUPPORT, RH
53188BSTAY, RADIATOR SUPPORT, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1
53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53271EBRACKET, HEADLAMP MOUNTING, RH
53272CBRACKET, HEADLAMP MOUNTING, LH
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53455ACLAMP, HOOD SUPPORT ROD
5353HOOD & FRONT FENDER
53701GAPRON SUB-ASSY, FRONT FENDER, RH
53702GAPRON SUB-ASSY, FRONT FENDER, LH
53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53707EAPRON SUB-ASSY, FENDER SIDE, RH
53708DAPRON SUB-ASSY, FENDER SIDE, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53735JPATCH, FRONT FENDER APRON, NO.5
53736MPATCH, FRONT FENDER APRON, NO.6
55101PANEL SUB-ASSY, DASH
55102APANEL SUB-ASSY, DASH, LOWER
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
55223AINSULATOR, DASH PANEL, OUTER
55224BINSULATOR, DASH PANEL, OUTER NO.2
57127CREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57128DREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
5752HOLE PLUG
58227JPLATE, FLOOR PANEL SIDE, RH
58228JPLATE, FLOOR PANEL SIDE, LH
58398ECOVER, FLOOR UNDER, NO.1
58399CCOVER, FLOOR UNDER, NO.2
7455CAUTION PLATE
9010508362
main90105-08362
9010908292
main90109-08292
9015950388
main90159-50388
9046706197
main90467-06197
9046707214
main90467-07214
9046710183
main90467-10183
9054115024
main90541-15024
91631J0612
main91631-J0612
54 parts on this diagram · 2 diagrams in section
