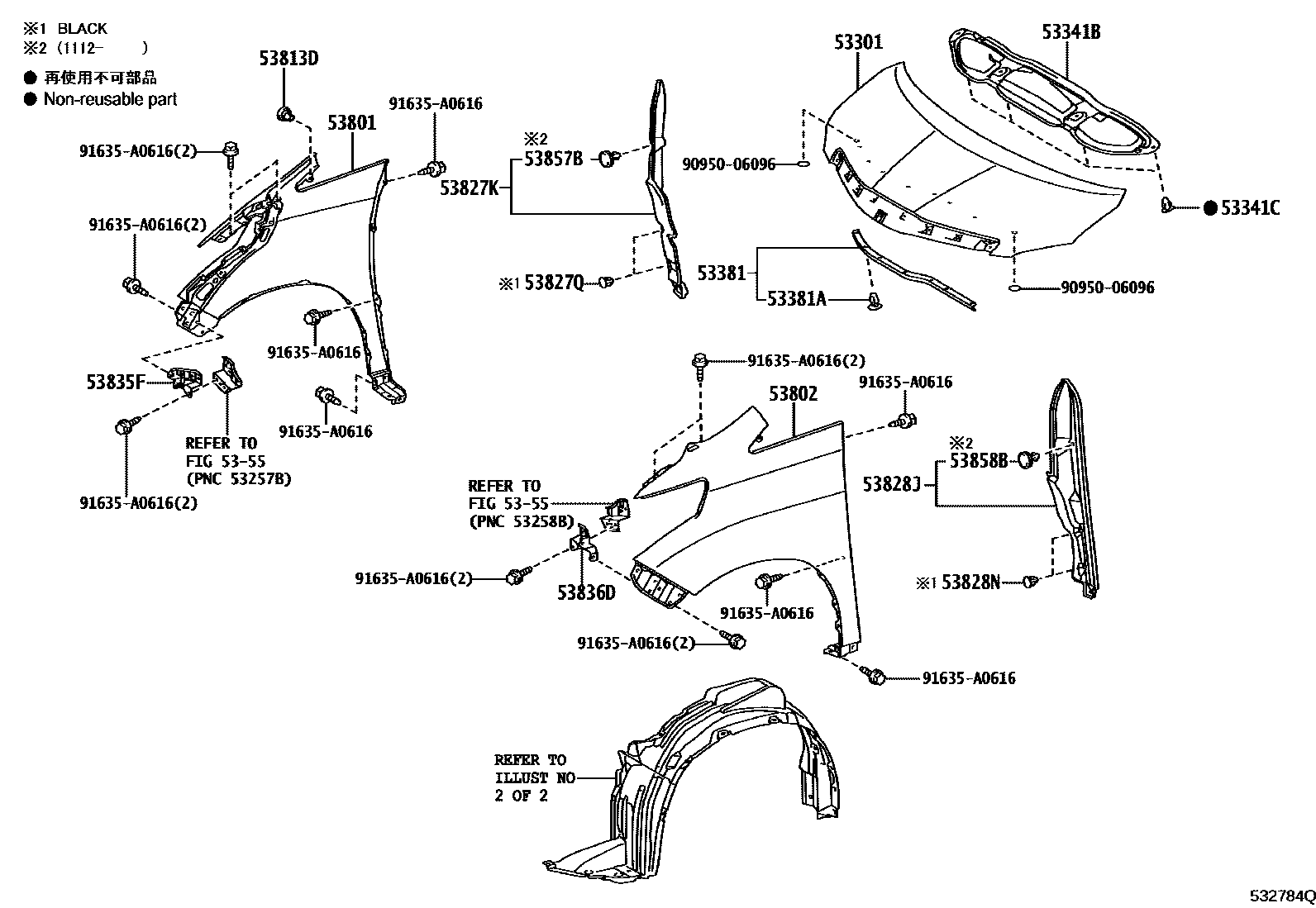

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53301HOOD SUB-ASSY

main53301-58020iANH2#,GGH2#..ALPHD..CBU200804-201110

main53301-58030iANH2#,GGH2#..VFIRE..CBU200804-201110

53341BINSULATOR, HOOD

main53341-58030iANH2#,GGH2#..CBU201110

main53341-58050iATH20201112

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×4iANH2#,GGH2#..CBU200804-201110

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-58030iANH2#,GGH2#..CBU200804-201110

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iANH2#,GGH2#..CBU200804-201110

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

53801FENDER SUB-ASSY, FRONT RH

main53801-58010iANH2#,GGH2#..(240G,240X,350G,350X)..CBU200804-201110

main53801-58020iANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU201110

main53801-58030iANH2#,GGH2#..(240S,350S)..CBU200804-201110

main53801-58040iANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU201110

53802FENDER SUB-ASSY, FRONT LH

main53802-58030iANH2#,GGH2#..(240G,240X,350G,350X)..CBU200804-201110

main53802-58040iANH2#,GGH2#..(24V,24X,35V,35X)..CBU200804-201110

main53802-58050iANH2#,GGH2#..(240S,350S)..CBU200804-201110

main53802-58060iANH2#,GGH2#..(24Z,35Z)..CBU200804-201110

main53802-58070supersedes 53802-58030iANH2#,ATH20,GGH2#..ALPHD..(240G,240X,350G,HBDG,HBDX)..CBU201110

main53802-58080supersedes 53802-58050iANH2#,ATH20,GGH2#..(240S,350S,HBDSR)..CBU201110

main53802-58090supersedes 53802-58040iANH2#,ATH20,GGH2#..VFIRE..(24V,24X,35V,HBDV,HBDX)..CBU201110

main53802-58100supersedes 53802-58060iANH2#,ATH20,GGH2#..(24Z,35Z,HBDZR)..CBU201110

53813DEXTENSION, FRONT FENDER

main53813-28130×2iANH2#,ATH20,GGH2#..CBU201309-201408

main53813-48010×2iANH2#,ATH20,GGH2#..CBU201110-201308

main53813-58010×2iANH2#,ATH20,GGH2#..CBU201409

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-58030iANH2#,GGH2#..CBU200804-201110

main53827-58031iANH2#,ATH20,GGH2#..CBU201301

53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main53857-47011×2iANH2#,ATH20,GGH2#..CBU201301-201501

main90467-10005-C0×2iANH2#,GGH2#..CBU200804-201110

BLACK

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-58070iANH2#,GGH2#..CBU200804-201110

main53828-58071iANH2#,ATH20,GGH2#..CBU201301

53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main53857-47011×2iANH2#,ATH20,GGH2#..CBU201301-201501

main90467-10005-C0×2iANH2#,ATH20,GGH2#..CBU201110-201212

BLACK

53835FBRACE, FRONT FENDER TO EXTENSION, RH

main53835-58030iANH2#,GGH2#..CBU200804-201110

53836DBRACE, FRONT FENDER TO EXTENSION, LH

main53836-58030iANH2#,GGH2#..CBU200804-201110

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iANH2#,ATH20,GGH2#..CBU201112

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iANH2#,ATH20,GGH2#..CBU201112

9095006096

main90950-06096

91635A0616

main91635-A0616

19 parts on this diagram · 3 diagrams in section
