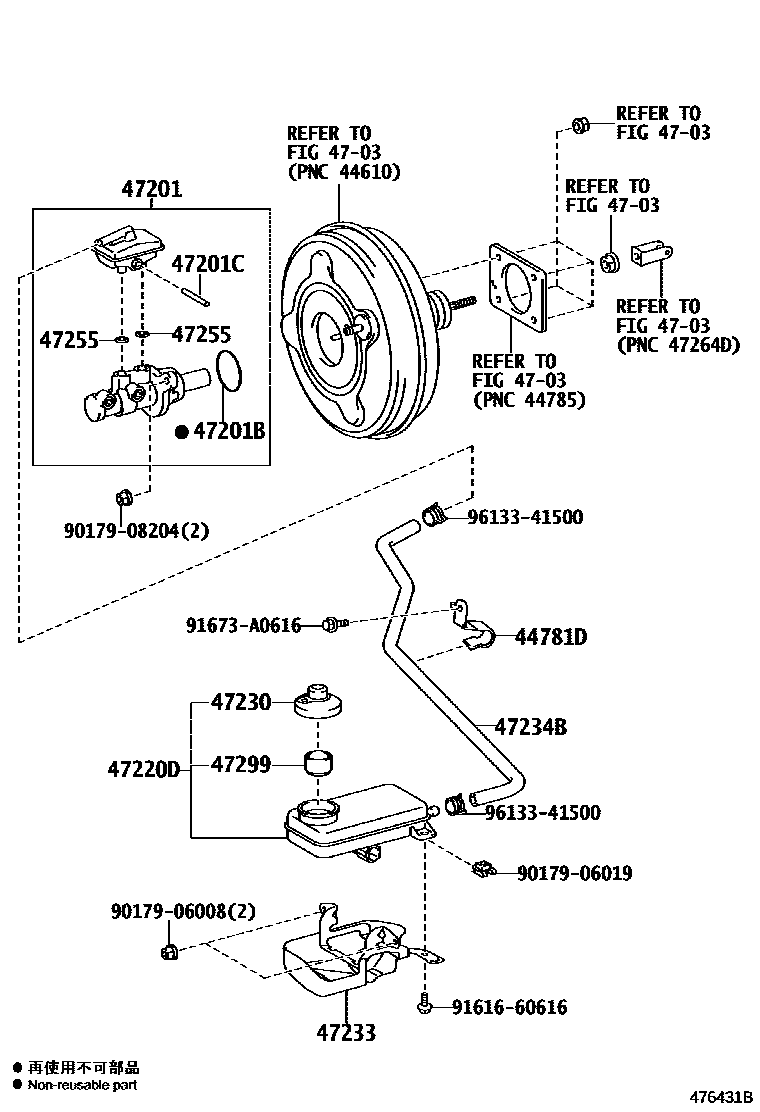

BRAKE MASTER CYLINDER

0001 1 0002 1

44781DBRACKET, RESERVOIR HOSE

main44781-28040iATH20201112

main44781-58010iANH2#,GGH2#..CBU200804-201008

main44781-58011iANH2#,GGH2#..CBU201009-201110

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28660iANH2#,GGH2#..CBU200804-201110

main47201-58040iANH2#,GGH2#..CBU201110-201209

main47201-58041iANH2#,GGH2#..CBU201210-201501

main47201-58060iATH20..CBU201112-201501

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iANH2#,GGH2#..CBU200804-201110

47201CRING PIN, BRAKE MASTER CYLINDER

main90015-AE401iANH2#,GGH2#..CBU200804-201110

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-58020iANH2#,GGH2#..CBU200804-201110

main47220-58021iANH2#,GGH2#..CBU201411-201501

main47220-58030iATH20..CBU201112-201501

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28240iANH2#,GGH2#..CBU200804-201110

main47230-58010iATH20..CBU201112-201501

main47230-58021iANH2#,GGH2#..CBU201411-201501

47233BRACKET, RESERVOIR

main47233-28140iATH20..CBU201112-201501

main47233-58030iANH2#,GGH2#..CBU201110-201501

main47233-58050iATH20..CBU201112-201501

47234BTUBE, RESERVOIR, NO.1

main47234-58040iANH2#,GGH2#..CBU200804-201110

main47234-58060iATH20201112

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iATH20201112

main90015-AT001×2iANH2#,GGH2#..CBU200804-201110

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-30190iATH20..CBU201112-201501

main47299-52110iANH2#,GGH2#..CBU200804-201110

main47299-58021iANH2#,GGH2#..CBU201411-201501

9017906008

main90179-06008

9017906019

main90179-06019

9017908204

main90179-08204

9161660616

main91616-60616

91673A0616

main91673-A0616

9613341500

main96133-41500

17 parts on this diagram · 2 diagrams in section
