HEATING & AIR CONDITIONING - WATER PIPING

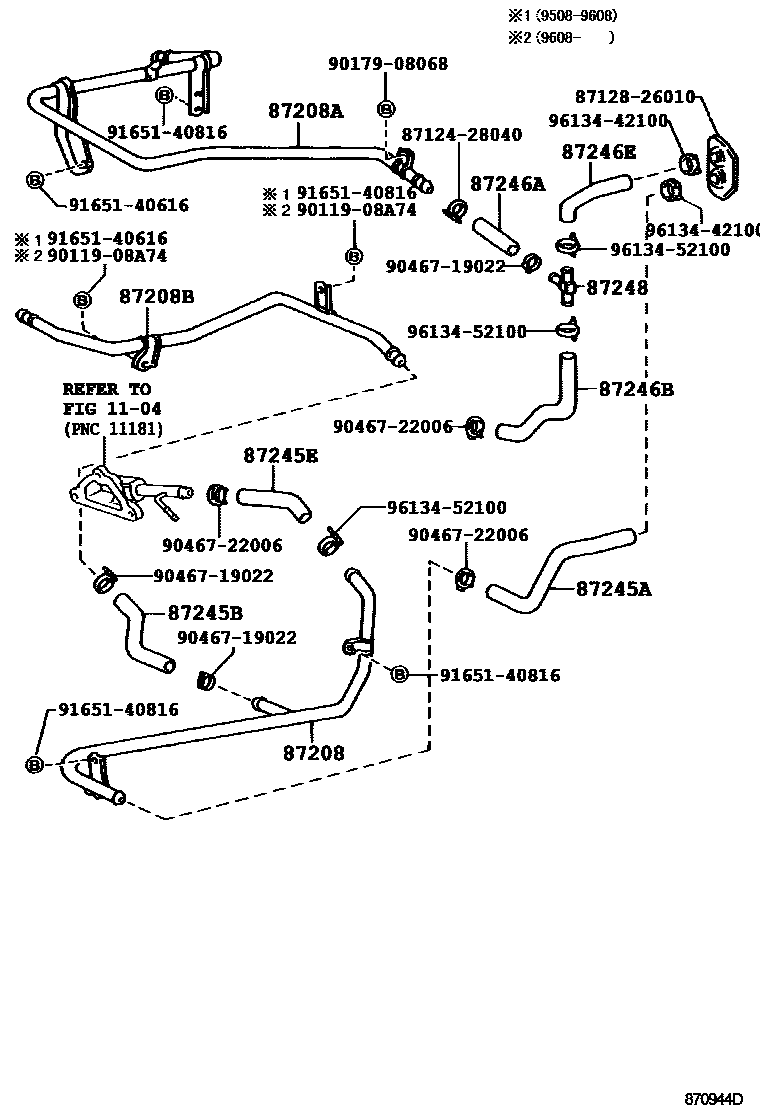

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

87208PIPE SUB-ASSY, HEATER WATER

main16206-67020i199907-199911

main16206-67021i199911-200205

main87208-26450i199508-199804

main87208-26480i199508-199907

main87208-26661i199907-200501

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-26220i199508-199907

main87208-26460i199508-199804

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-26260i199508-199907

main87208-26470i199508-199804

87245AHOSE, HEATER WATER, INLET A

main87245-26320i199508-199804

main87245-26510i199508-199708

main87245-26550i199508-199907

main87245-2F220i199907-200501

main87245-2F510i199907-200205

87245BHOSE, HEATER WATER, INLET B

main87245-26550i199907-200205

main87245-26580i199508-199804

main87245-2F210i199907-200501

87245EHOSE, HEATER WATER, INLET E

main87245-26560i199508-199907

main87245-26590i199508-199804

main87245-2F530i199907-200205

87246AHOSE, HEATER WATER, OUTLET A

main87245-26540i199508-199907

main87245-2F190i199708-199907

main87245-2F540i199907-200205

main99556-20200i199508-199804

87246BHOSE, HEATER WATER, OUTLET B

main87245-26500i199508-199804

main87245-26530i199907-200205

main87245-2F200i199907-200501

87246EHOSE, HEATER WATER, OUTLET E

main87245-26490i199508-199804

main87245-26520i199508-199708

main87245-26530i199508-199907

main87245-2F230i199708-199907

main87245-2F520i199907-200205

87248PIPE SUB-ASSY, WATER

main87248-26200i199708-199907

main87248-60460i199508-199907

8712428040CLAMP, HEATER

main87124-28040

8712826010GROMMET, HEATER

main87128-26010

9011908A74

main90119-08A74

9017908068

main90179-08068

9046719022

main90467-19022

9046722006

main90467-22006

9165140616

main91651-40616

9165140816

main91651-40816

9613442100

main96134-42100

9613452100

main96134-52100

21 parts on this diagram · 8 diagrams in section
