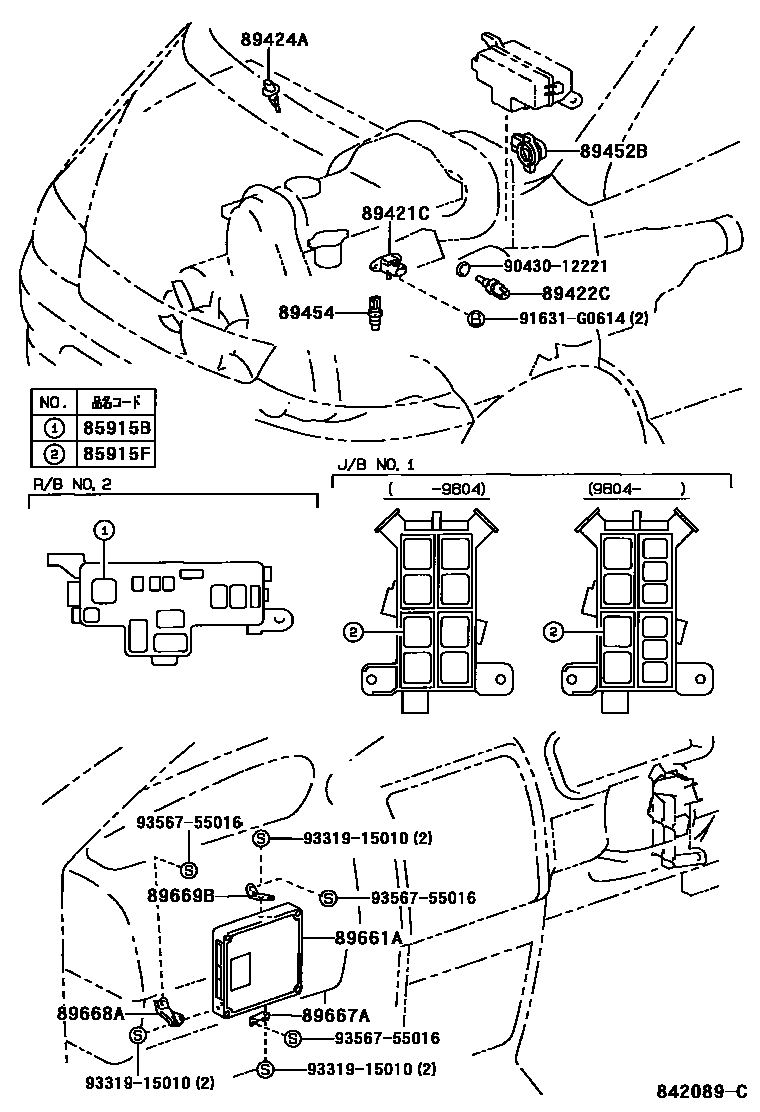

ELECTRONIC CONTROLED DIESEL (ECD)
85915BRELAY, MAIN (FOR DIESEL TURBO)
85915FRELAY, SPILL VALVE
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89452BSENSOR, THROTTLE POSITION
89454SENSOR, FUEL TEMPERATURE
89661ACOMPUTER, ENGINE CONTROL
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3
9043012221
main90430-12221
91631G0614
main91631-G0614
9331915010
main93319-15010
9356755016
main93567-55016
15 parts on this diagram · 2 diagrams in section
