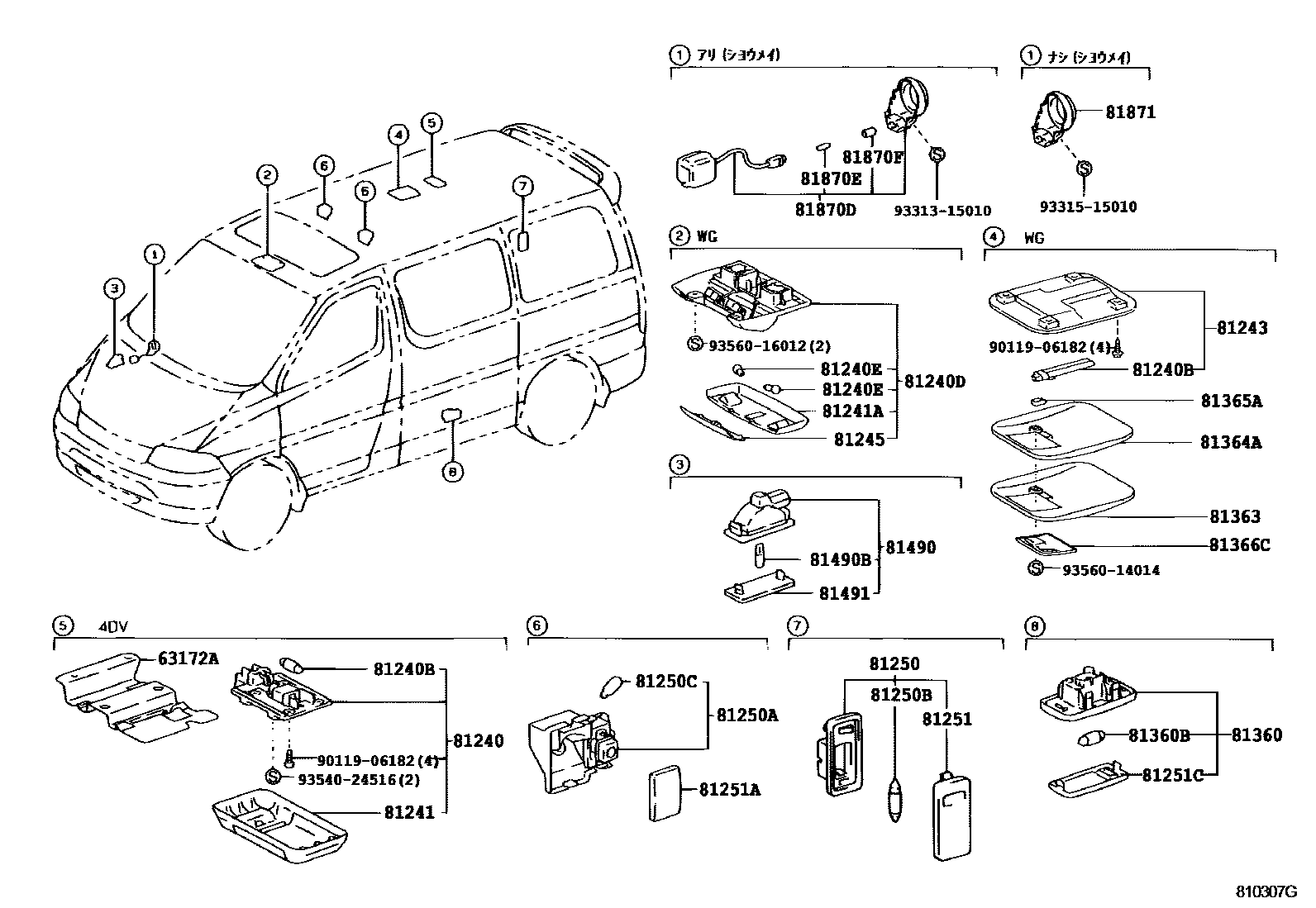

INTERIOR LAMP

63172ABASE, ROOM LAMP

main63172-26030iKCH12199508-199708

81240LAMP ASSY, ROOM, NO.1

main81240-12020-B3iKCH12199508-199708

LT.BLUISH GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-11046iKCH10,16,RCH11,VCH1#199508-199907

main99132-12100iKCH12199508-199708

81240DLAMP ASSY, ROOM, NO.2

main81240-95J08-A1iKCH1#,VCH1#..G199804-199907

main81240-95J08-A3iKCH1#,VCH1#,2#199907-200501

IVORY,TRIM0#

main81240-95J08-B0iKCH10,16,RCH11199508-199708

LT.BLUISH GRAY,TRIM1#

main81240-95J08-B2iKCH1#,RCH11,VCH1#..G199708-199907

LT.GRAY,TRIM1#

81240EBULB, ROOM LAMP, NO.2

main90981-12020×2iKCH1#,VCH1#,2#199907-200501

81241LENS, ROOM LAMP, NO.1

main81241-12020iKCH12199508-199708

81241ALENS, ROOM LAMP, NO.2

main81241-95J08iKCH1#,VCH1#,2#199907-200501

81243BODY, ROOM LAMP, NO.1

main81243-26080-A0iKCH1#,VCH1#..Q199708-199907

IVORY,TRIM4#

main81243-26080-B0iKCH10,16,RCH11199508-199708

LT. BLUISH GRAY,TRIM1#

main81243-26080-B3iKCH1#,RCH11,VCH1#..G199708-199907

LT.GRAY,TRIM1#

81245COVER, ROOM LAMP, NO.2

main81245-95J07-A1iKCH1#,VCH1#..G; KCH1#,VCH1#..Q199804-199907

main81245-95J07-B0iKCH10,16,RCH11,VCH1#199508-199804

LT. BLUISH GRAY,TRIM1#

81250LAMP ASSY, ROOM, NO.2

main81250-13020-B2iKCH1#,RCH11,VCH1#..G199708-199907

BLUISH GRAY,TRIM1#

main81250-13020-E1iKCH1#,VCH1#199907-200205

SANDAL WOOD,TRIM0#

81250ALAMP ASSY, SPOT

main81250-26020-A0iVCH2#199907-200501

main81250-26020-B0iKCH10,16,RCH11199508-199708

main81250-26020-B2iKCH1#,RCH11,VCH1#..G199708-199907

main81290-26020-A0iVCH2#199907-200501

main81290-26020-B0iKCH10,16,RCH11199508-199708

main81290-26020-B2iKCH1#,RCH11,VCH1#..G199708-199907

81250BBULB, ROOM LAMP, NO.2

main90981-11021iKCH10,16,RCH11,VCH1#199508-199907

81250CBULB, SPOT LAMP

main99132-12050×2iKCH10,16,RCH11,VCH1#199508-199907

81251LENS, ROOM LAMP, NO.2

main81251-12030iKCH10,16,RCH11,VCH1#199508-199907

81251ALENS, SPOT LAMP

main81251-26020×2iKCH10,16,RCH11,VCH1#199508-199907

81251CLENS, REAR ROOM LAMP, RH NO.2

main81251-12030iKCH1#,VCH1#,2#..4D200108-200501

81360LAMP ASSY, STEP OR SPOT

main81250-95J05-B0iKCH10,16,RCH11199508-199708

BLUISH GRAY,TRIM1#

main81250-95J05-E1iVCH2#200205-200501

ANTELOPE,TRIM0#

main81250-95J05-E2iKCH1#,VCH1#..4D; KCH1#,VCH1#..5D; VCH2#199907-200205

SANDAL WOOD,TRIM0#; SANDAL WOOD,TRIM04

81360BBULB, STEP OR SPOT LAMP

main99132-13050×2iVCH1#..5D199708-199907

81363LENS, ROOM LAMP, OUTER

main81363-26010iKCH10,16,RCH11,VCH1#199508-199907

81364ALENS, ROOM LAMP, INNER

main81364-26010iKCH1#,VCH1#199907-200205

81365AKNOB, ROOM LAMP SWITCH

main81365-26010iKCH10,16,RCH11,VCH1#199508-199907

main81365-26010-A0iKCH1#,VCH1#199907-200205

IVORY,TRIM0#

81366CBASE, ROOM LAMP SWITCH

main81366-26010-A0iKCH1#,VCH1#..Q199708-199907

IVORY,TRIM4#

main81366-26010-B0iKCH10,16,RCH11199508-199708

LT. BLUISH GRAY,TRIM1#

main81366-26010-B3iKCH1#,RCH11,VCH1#..G199708-199907

LT.GRAY,TRIM1#

81490LAMP ASSY, FOOT

main81490-26010iKCH10,16,RCH11,VCH1#..Q199508-199907

81490BBULB (FOR FOOT LAMP)

main90981-11018iKCH10,16,RCH11,VCH1#..Q199508-199907

81491LENS, FOOT LAMP

main81261-50010iKCH10,16,RCH11,VCH1#..Q199508-199907

81870DLAMP ASSY, KEY CYLINDER

main81870-26010iKCH10,16,RCH11199508-199703

main81870-26011iKCH10,16,RCH11,VCH1#199703-199907

81870EBULB, KEY CYLINDER LAMP

main90981-11014iKCH10,16,RCH11,VCH1#199508-199907

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070iKCH10,16,RCH11199508-199708

81871LENS, KEY ILLUMINATION

main81871-95J00iKCH12199508-199708

9011906182

main90119-06182

9331315010

main93313-15010

9331515010

main93315-15010

9354024516

main93540-24516

9356014014

main93560-14014

9356016012

main93560-16012

35 parts on this diagram · 1 diagram in section
