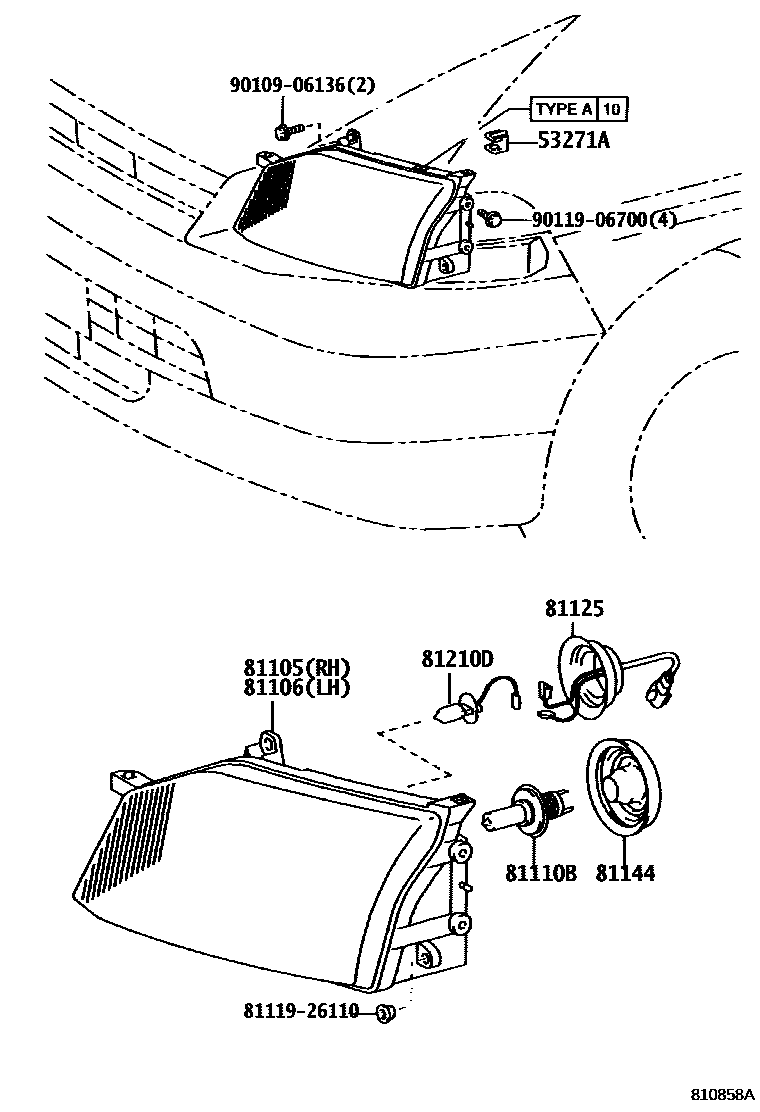

HEADLAMP

0001 1 0002 1 0003 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2iKCH1#,RCH11,VCH1#199508-199907

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-26110iKCH10,16,RCH11199508-199512

main81105-26120iKCH12199508-199708

main81105-26190iKCH10,16,RCH11199512-199608

main81105-26191iKCH10,16,RCH11199608-199708

main81105-26192iKCH1#,RCH11,VCH1#199708-199907

main81105-26330iKCH1#,VCH1#,2#199907-200501

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-26110iKCH10,16,RCH11199508-199512

main81106-26120iKCH12199508-199708

main81106-26190iKCH10,16,RCH11199512-199608

main81106-26191iKCH10,16,RCH11199608-199708

main81106-26192iKCH1#,RCH11,VCH1#199708-199907

main81106-26330iKCH1#,VCH1#,2#199907-200501

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iKCH1#,VCH1#,2#199907-200501

main90981-22003×2iKCH1#,RCH11,VCH1#199508-199907

81125CORD, HEADLAMP

main81125-26110×2iKCH10,16,RCH11199508-199512

main81125-26190×2iKCH10,16,RCH11199512-199608

81144COVER, HEADLAMP, NO.1

main81139-87641×2iKCH1#,RCH11,VCH1#199508-199907

81210DBULB, FOG LAMP

main90981-13041×2iVCH10..Q;KCH10,16,RCH11,VCH16199512-199907

main90981-13069×2iKCH10,16,RCH11199508-199512

8111926110SCREW, HEADLAMP

main81119-26110

9010906136

main90109-06136

9011906700

main90119-06700

10 parts on this diagram · 3 diagrams in section
