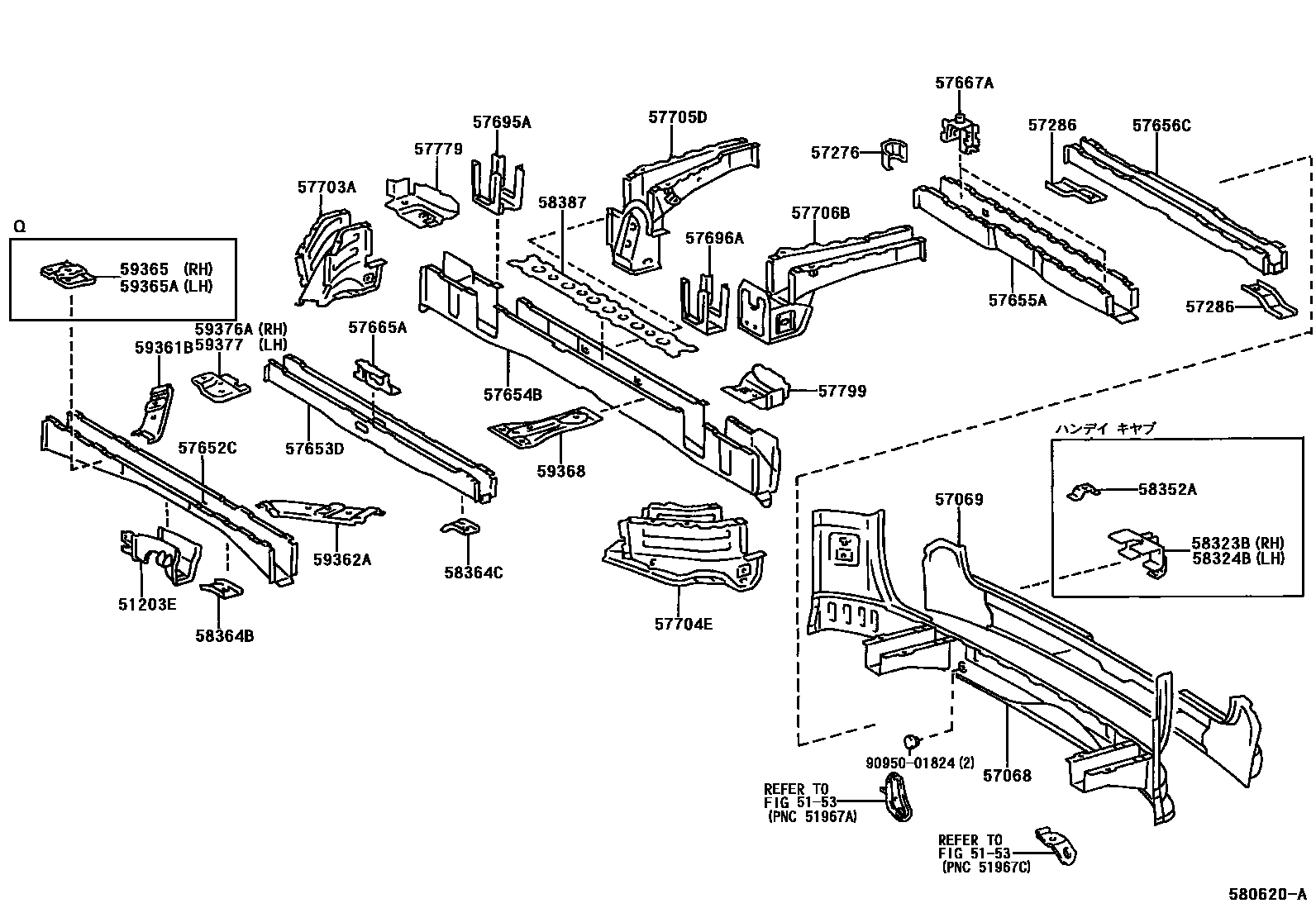

REAR FLOOR PANEL & REAR FLOOR MEMBER
51203EBRACKET SUB-ASSY, CENTER BEARING SUPPORT
5153SPARE WHEEL CARRIER
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57276GUSSET, REAR FLOOR CROSSMEMBER, NO.4
57286GUSSET, REAR FLOOR CROSSMEMBER, NO.5
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653DMEMBER, REAR FLOOR CROSS, NO.2
57654BMEMBER, REAR FLOOR CROSS, NO.3
57655AMEMBER, REAR FLOOR CROSS, NO.4
57656CMEMBER, REAR FLOOR CROOS, NO.5
57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4
57695AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH
57696AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH
57703ABRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT RH
57704EBRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT LH
57705DBRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR RH
57706BBRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR LH
57779RETAINER, UPPER CONTROL LINK, UPPER
57799GUSSET, REAR FLOOR CROSSMEMBER
58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH
58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH
58352ABRACKET, REAR FLOOR STAY
58364BBRACKET, FUEL TANK SUPPORT
58364CBRACKET, FUEL TANK SUPPORT
58387PLATE, REAR FLOOR FINISH
59361BRETAINER, REAR SEAT, NO.1 A
59362ARETAINER, REAR SEAT, NO.1 B
59365RETAINER, REAR SEAT, NO.2 A
59365ARETEINER, REAR SEAT, NO.2
59368RETAINER, REAR SEAT, NO.2 D
59376ARETAINER, REAR SEAT, NO.4
59377RETAINER, REAR SEAT, NO.4
9095001824
main90950-01824
35 parts on this diagram · 5 diagrams in section
