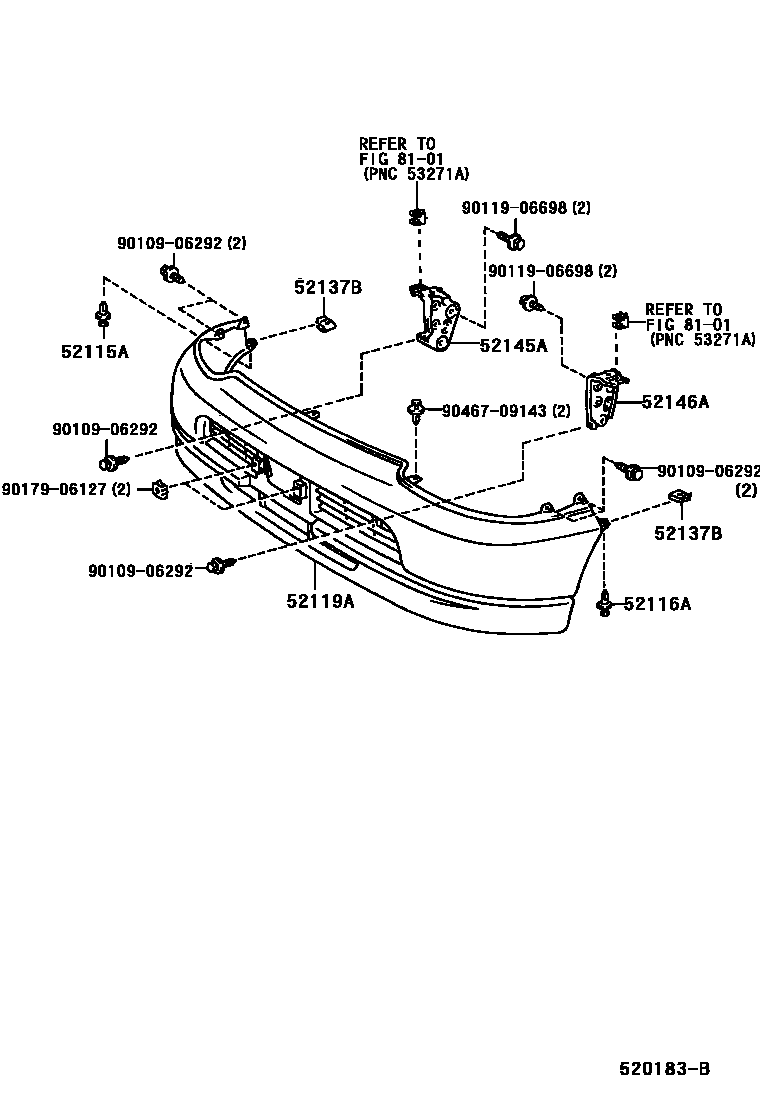

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-26040iKCH1#,VCH1#,2#..DX,QLTD; KCH1#,VCH1#..G200003-200501

main52115-26080iKCH1#,VCH1#,2#199907-200003

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-26040iKCH1#,VCH1#,2#..DX,QLTD; KCH1#,VCH1#..G200003-200501

main52115-26080iKCH1#,VCH1#,2#199907-200003

52119ACOVER, FRONT BUMPER

main52119-26150iKCH12199508-199708

main52119-26170-B0iKCH10,16,RCH11,VCH1#199608-199907

BL.GRAY ME,2BA

main52119-26170-B1iKCH10,16,RCH11199601-199608

GRAY ME.OP.,2BW

main52119-26170-B2iKCH10,16,RCH11..G199608-199708

main52119-26170-D0iKCH1#,RCH11,VCH1#..G; KCH1#,VCH1#..Q199708-199907

LT.GRAISH ROSE OP,2EC; LT.GRAISH ROSE OP,2EE

main52119-26170-G0iKCH10,16,RCH11..Q199508-199708

BLACKISH GREEN M,2AZ

main52119-26170-G1iKCH1#,VCH1#..G199804-199907

main52119-26170-H0iKCH10,16,RCH11199508-199608

DK. TEAL GREEN MC.,2BP

main52119-26170-K0iKCH10,16,RCH11,VCH1#199608-199907

DK.GRAYISH PURPLE ME,2CJ

main52119-26180-B0iKCH10,16,RCH11199608-199708

main52119-26180-B1iKCH10,16,RCH11199601-199608

main52119-26180-B2iKCH10,16,RCH11..Q199604-199708

main52119-26180-G0iKCH10,16,RCH11..Q199508-199708

main52119-26180-H0iKCH10,16,RCH11199508-199608

main52119-26180-K0iKCH10,16,RCH11199608-199708

main52119-26181-B0iKCH1#,RCH11,VCH1#199708-199907

main52119-26181-B1iKCH1#,RCH11,VCH1#199708-199907

main52119-26181-B2iKCH1#,RCH11,VCH1#199708-199907

main52119-26181-D0iKCH1#,RCH11,VCH1#..G; KCH1#,VCH1#..Q199708-199907

main52119-26181-G1iKCH1#,VCH1#..G199804-199907

main52119-26181-K0iKCH1#,RCH11,VCH1#199708-199907

main52119-26380-A0iVCH2#199907-200307

SUPER WHITE 2,040

main52119-26380-A1iVCH2#199907-200501

WHITE,058

main52119-26380-B0iKCH1#,VCH1#199907-200205

GRAY ME.OP.,2BW

main52119-26380-B1iKCH1#,VCH1#199907-200205

GRAY M.M.,2FX

main52119-26380-B2iVCH22; VCH28199907-200307

SILVER ME.,2GD

main52119-26380-B3iVCH2#199907-200501

SILVER ME.,199

main52119-26380-B4iKCH1#,VCH1#..G..5D200108-200204

main52119-26380-B5iVCH2#200405-200412

SILVER M.M.,1E7

main52119-26380-E0iVCH1#..4D200108-200204

main52119-26380-G0iKCH1#,VCH1#199907-200205

GRAYISH BREEN M,2FY

main52119-26380-K0iKCH1#,VCH1#199907-200205

DK.GRAYISH PURPLE ME,2CJ

main52119-26390-B0iKCH1#,VCH1#199907-200205

main52119-26390-B1iKCH1#,VCH1#..G..5D200108-200204

main52119-26390-B2iKCH1#,VCH1#..4D199907-200205

main52119-26390-B3iKCH1#,VCH1#..G..5D200108-200204

main52119-26390-E0iKCH1#,VCH1#..G..5D200004-200107

main52119-26390-G0iKCH1#,VCH1#199907-200205

main52119-26390-K0iKCH1#,VCH1#199907-200205

mainC221620090B0iKCH1#,VCH1#..4D200004-200205

mainC221620090B1iKCH1#,VCH1#..4D199910-200003

52137BPLATE, FRONT BUMPER BRACKET, NO.1

main52137-26020×2iKCH1#,RCH11,VCH1#199508-199907

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-26020iKCH1#,RCH11,VCH1#199508-199907

main52145-26050iKCH1#,VCH1#,2#199907-200501

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-26020iKCH1#,RCH11,VCH1#199508-199907

main52146-26050iKCH1#,VCH1#,2#199907-200501

8101HEADLAMP

→ Go to FIG 81-01

9010906292

main90109-06292

9011906698

main90119-06698

9017906127

main90179-06127

9046709143

main90467-09143

11 parts on this diagram · 2 diagrams in section
