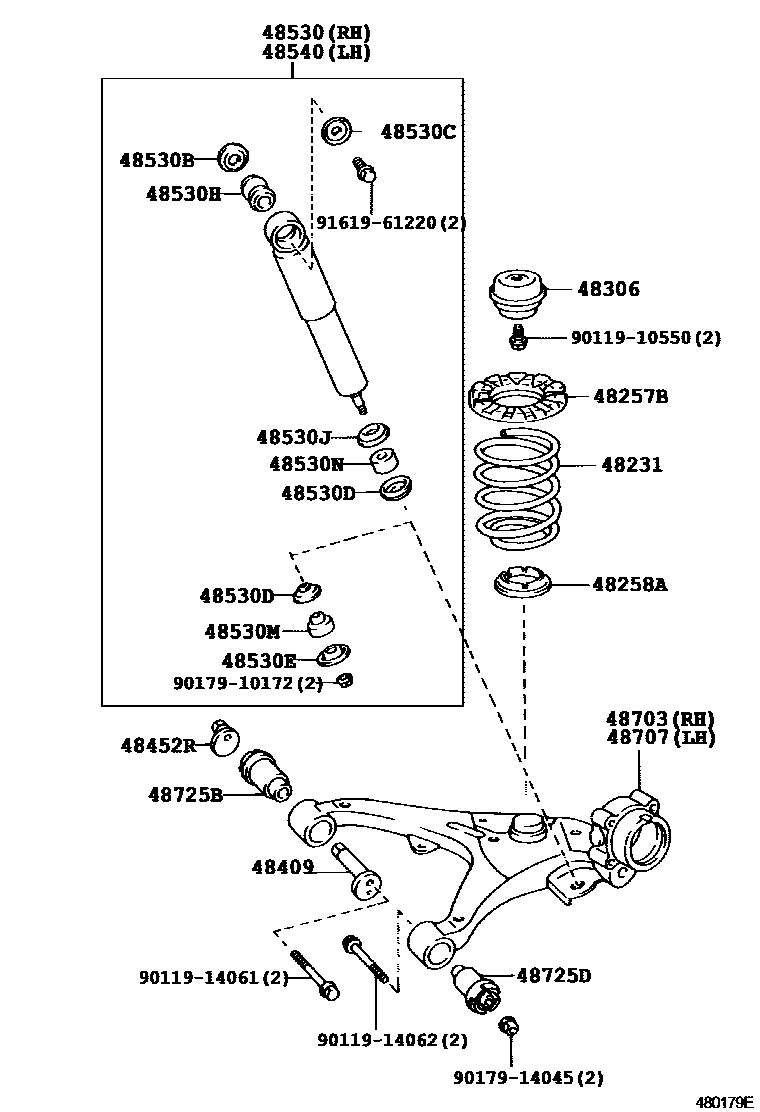

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48231SPRING, COIL, REAR

main48231-26260×2iKCH10,RCH11199508-199708

main48231-26280×2iKCH16199510-199907

main48231-26321×2iKCH12199508-199708

main48231-26350×2iVCH10;KCH10,RCH11..G199708-199907

main48231-26360×2iVCH16199708-199907

main48231-26390×2iKCH10..Q199708-199907

main48231-26450×2iVCH10..G199907-200205

main48231-26460×2iVCH10..QLTD199907-200205

main48231-26470×2iKCH10..G199907-200205

main48231-26480×2iKCH10..QLTD199907-200205

main48231-26490×2iKCH16,VCH16199907-200205

main48231-26510×2iVCH22199907-200501

main48231-26520×2iVCH28199907-200501

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-26050×2iKCH1#,RCH11,VCH1#199508-199907

main48257-26060×2iKCH1#,VCH1#,2#199907-200501

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-26050×2iKCH1#,RCH11,VCH1#199508-199907

48306BUMPER SUB-ASSY, REAR SPRING

main48306-26100×2iKCH12199508-199708

main48306-26120×2iKCH1#,VCH1#,2#199907-200501

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-26050×2iKCH1#,RCH11,VCH1#199508-199907

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-26010×2iKCH1#,RCH11,VCH1#199508-199907

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80219iVCH10;KCH10,RCH11..G199708-199907

main48531-80298iKCH12199508-199708

main48531-80299iKCH10,RCH11199508-199708

main48531-80460iKCH16199510-199708

main48531-80650iKCH10..Q199708-199907

main48531-80652iKCH16,VCH16199708-199907

main48531-80680iKCH10,VCH10,22199907-200501

main48531-80681iVCH16;KCH16..G199907-200205

main48531-80682iKCH16..5D199907-200004

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011×2iKCH1#,RCH11,VCH1#199508-199907

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03015×2iKCH1#,RCH11,VCH1#199508-199907

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-02077×4iKCH1#,RCH11,VCH1#199508-199907

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-02125×2iKCH1#,RCH11199508-199704

main90948-02169×2iKCH1#,RCH11,VCH1#199704-199907

48530HBUSH, REAR SHOCK ABSORBER

main90385-19006×2iKCH10,16,RCH11,VCH1#199508-199907

main90385-19008×4iKCH12199508-199705

main90385-19009×4iKCH12199705-199708

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-02165×2iKCH1#,RCH11,VCH1#199508-199907

48530MCUSHION, REAR SHOCK ABSORBER, NO.4

main90948-01059×2iKCH1#,VCH1#,2#199907-200501

48530NCUSHION, REAR SHOCK ABSORBER, NO.5

main90948-01060×2iKCH1#,VCH1#,2#199907-200501

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80219iVCH10;KCH10,RCH11..G199708-199907

main48531-80298iKCH12199508-199708

main48531-80299iKCH10,RCH11199508-199708

main48531-80460iKCH16199510-199708

main48531-80650iKCH10..Q199708-199907

main48531-80652iKCH16,VCH16199708-199907

main48531-80680iKCH10,VCH10,22199907-200501

main48531-80681iKCH16..QLTD200004-200205

main48531-80682iVCH28199907-200501

48703ARM SUB-ASSY, REAR SUSPENSION, RH

main48703-26040iKCH1#,VCH1#199907-200205

main48703-26050iKCH12199508-199708

main48703-26060iKCH10,16,RCH11; KCH12199508-199708

48707ARM SUB-ASSY, REAR SUSPENSION, LH

main48707-26020iKCH1#,RCH11,VCH1#199708-199907

main48707-26030iKCH12199508-199708

main48707-26040iKCH10,16,RCH11; KCH12199508-199708

48725BBUSH, REAR SUSPENSION ARM, NO.1

main48725-26010×2iKCH12199508-199708

main48725-26030×2iKCH10,16,RCH11,VCH1#199508-199907

main48725-26050×2iVCH2#199907-200501

main48725-26090×2iKCH1#,VCH1#199907-200205

48725DBUSH, REAR SUSPENSION ARM, NO.3

main48725-26020×2iKCH10,16,RCH11,VCH1#199508-199907

main48725-26040×2iKCH12199508-199708

main48725-26080×2iVCH2#199907-200501

main48725-26100×2iKCH1#,VCH1#199907-200205

9011910550

main90119-10550

9011914061

main90119-14061

9011914062

main90119-14062

9017910172

main90179-10172

9017914045

main90179-14045

9161961220

main91619-61220

26 parts on this diagram · 2 diagrams in section
