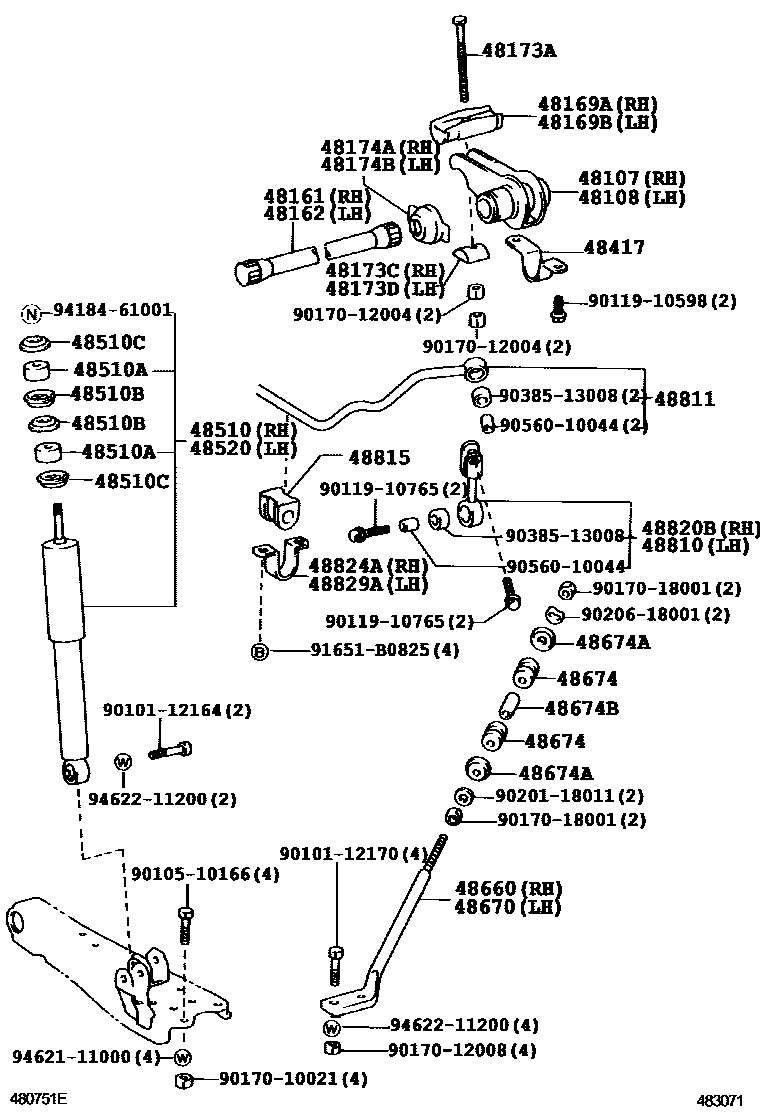

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0005 1 0006 1 0007 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-26070iKCH1#,RCH11199508-199708

main48107-26080iKCH1#,RCH11,VCH1#199708-199907

48108ARM SUB-ASSY, ANCHOR, LH

main48108-26070iKCH16199510-199708

main48108-26080iKCH10,VCH10,22199907-200501

main48108-26090iKCH16,VCH16,28199907-200501

48161SPRING, TORSION BAR, RH

main48161-26300iKCH12199508-199708

main48161-26310iKCH10..G199708-199907

main48161-26320iKCH16,VCH28..DX,G199907-200501

main48161-26330iKCH16..QLTD199907-200205

main48161-26340iRCH11,VCH10199508-199907

main48161-26360iKCH10,VCH22199907-200501

main48161-26440iKCH10..Q199708-199907

main48161-26460iVCH16199708-199907

main48161-26470iKCH16199708-199907

48162SPRING, TORSION BAR, LH

main48162-26300iKCH12199508-199708

main48162-26310iVCH10199907-200205

main48162-26320iKCH16199510-199708

main48162-26340iRCH11,VCH10199508-199907

main48162-26360iKCH10,VCH22199907-200501

main48162-26420iKCH16..QLTD199907-200205

main48162-26430iKCH16,VCH28..DX,G199907-200501

main48162-26440iKCH10..Q199708-199907

main48162-26460iVCH16199907-200205

main48162-26470iKCH16199708-199907

48169ASWIVEL, ANCHOR ARM, RH

main48169-26060iKCH1#,RCH11,VCH1#199508-199907

48169BSWIVEL, ANCHOR ARM, LH

main48169-26060iKCH1#,RCH11,VCH1#199508-199907

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12165×2iKCH1#,VCH1#,2#199907-200501

48173CSEAT, ANCHOR ARM ADJUSTER, RH

main48173-27010iKCH1#,VCH1#,2#199907-200501

48173DSEAT, ANCHOR ARM ADJUSTER, LH

main48173-27010iKCH1#,RCH11,VCH1#199508-199907

48174ACOVER, TORSION BAR DUST, RH

main48174-26010iKCH1#,RCH11,VCH1#199508-199907

48174BCOVER, TORSION BAR DUST, LH

main48174-26010iKCH1#,RCH11,VCH1#199508-199907

48417BRACKET, SPRING

main48417-26030×2iKCH1#,RCH11,VCH1#199708-199907

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-29765iKCH12199508-199708

main48511-29775iKCH10,RCH11199508-199708

main48511-29795iKCH16199510-199708

main48511-80045iKCH16,VCH28..DX,G199907-200501

main48511-80049iKCH10..Q199708-199907

main48511-80054iVCH10;KCH10,RCH11..G199708-199907

main48511-80073iKCH10..QLTD199907-200205

main48511-80074iKCH16..QLTD199907-200205

main48511-80075iVCH16199907-200205

main48511-80076iVCH10199907-200004

main48511-80085iKCH10..G200004-200205

main48511-80088iVCH10200004-200205

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01031×4iKCH1#,RCH11,VCH1#199508-199907

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02017×4iKCH1#,VCH1#,2#199907-200501

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002×4iKCH1#,RCH11,VCH1#199508-199907

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-29765iKCH12199508-199708

main48511-29775iKCH10,RCH11199508-199708

main48511-29795iKCH16199510-199708

main48511-80045iKCH16,VCH16199708-199907

main48511-80049iKCH10..Q199708-199907

main48511-80054iVCH10;KCH10,RCH11..G199708-199907

main48511-80073iKCH10..QLTD199907-200205

main48511-80074iKCH16..QLTD199907-200205

main48511-80075iVCH16199907-200205

main48511-80076iVCH10199907-200004

main48511-80085iKCH10..G200004-200205

main48511-80088iVCH10200004-200205

48660BAR ASSY, STRUT, RH

main48661-26020iKCH10,12,RCH11199508-199708

main48661-26040iKCH10,RCH11,VCH10199708-199907

48670BAR ASSY, STRUT, LH

main48661-26020iKCH10,12,RCH11199508-199708

main48661-26040iKCH10,RCH11,VCH10199708-199907

48674CUSHION, STRUT BAR

main48674-26021×4iKCH10,12,RCH11,VCH10199508-199907

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02062×4iKCH10,12,RCH11,VCH10199508-199907

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18005×2iKCH10,12,RCH11,VCH10199508-199907

48810LINK ASSY, FRONT STABILIZER, LH

main48810-26020iKCH10,RCH11,VCH10199708-199907

main48810-26030iKCH10,12,RCH11199508-199708

48811BAR, STABILIZER, FRONT

main48804-26040iKCH12199508-199708

main48804-26060iKCH10,RCH11199508-199708

main48811-26280iKCH16199510-199708

main48811-26330iKCH10,RCH11199708-199907

main48811-26340iKCH16,VCH16199708-199907

main48811-26361iKCH10,VCH10,22..DX,QLTD199907-200501

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-26180×2iKCH12199508-199708

main48815-26200×2iKCH10,RCH11199508-199708

main48815-26230×2iKCH16199510-199708

main48815-26260×2iKCH10,VCH10..G199907-200205

main48815-26310×2iKCH16,VCH16199708-199907

main48815-26330×2iKCH10,VCH10,22..DX,QLTD199907-200501

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-26020iKCH10,RCH11,VCH10199708-199907

main48820-26030iKCH10,12,RCH11199508-199708

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-26120iKCH10,RCH11199508-199708

main48824-26130iKCH12199508-199708

main48824-26150iKCH16199510-199708

main48824-26190iKCH10,VCH10,22199907-200501

main48824-26200iKCH16,VCH16,28199907-200501

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-26120iKCH10,RCH11199508-199708

main48824-26130iKCH12199508-199708

main48824-26190iKCH10,VCH10,22199907-200501

main48829-26090iKCH16199510-199708

main48829-26140iKCH16,VCH16199708-199907

9010112164

main90101-12164

9010112170

main90101-12170

9010510166

main90105-10166

9011910598

main90119-10598

9011910765

main90119-10765

9017010021

main90170-10021

9017012004

main90170-12004

9017012008

main90170-12008

9017018001

main90170-18001

9020118011

main90201-18011

9020618001

main90206-18001

9038513008

main90385-13008

9056010044

main90560-10044

91651B0825

main91651-B0825

9418461001

main94184-61001

9462111000

main94621-11000

9462211200

main94622-11200

45 parts on this diagram · 5 diagrams in section
