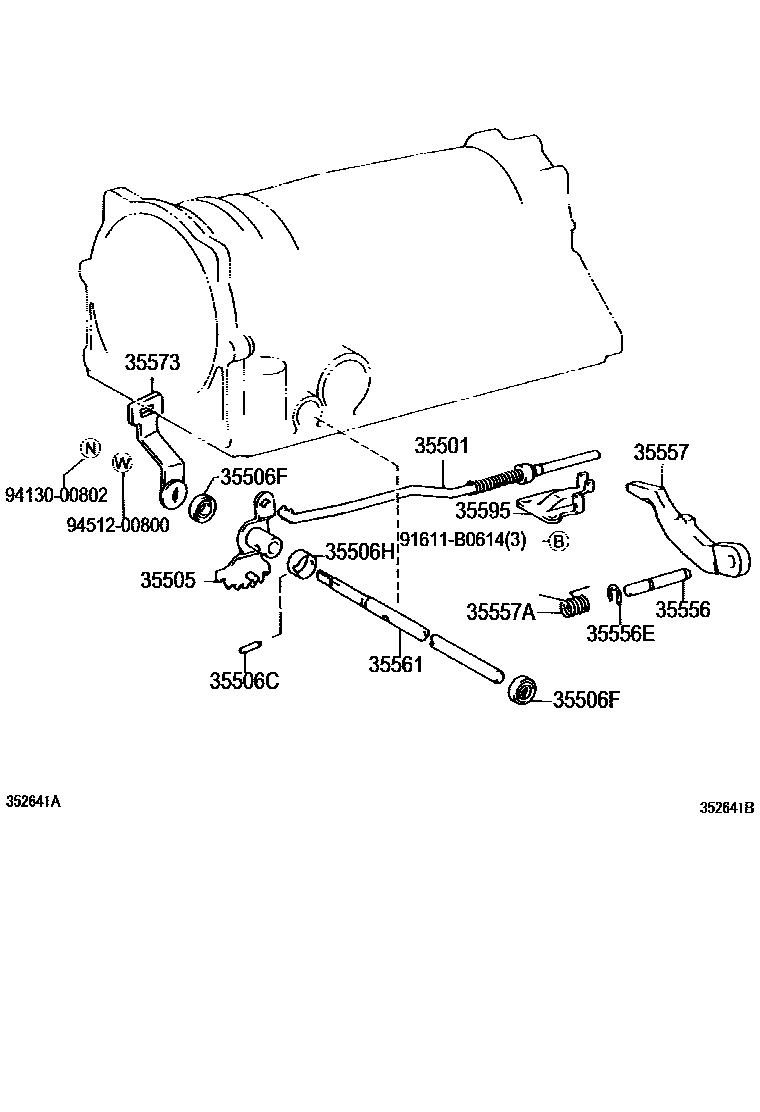

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A43DE 0003 1A340E,A340F,A343F 0004 1A343E,A343F 0005 1A43DE

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iRCH11199508-199804

main35501-30010iKCH1#,VCH1#199508-199907

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-28010iRCH11199508-199804

main35505-50010iKCH1#,VCH1#199508-199907

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iKCH1#,RCH11,VCH1#199508-199907

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003×2iRCH11199508-199804

main90311-12002×2iKCH1#,VCH1#199508-199907

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iRCH11199508-199804

main90560-20006iKCH1#,VCH1#199508-199907

main90560-20025iVCH2#200302-200501

35556SHAFT, PARKING LOCK PAWL

main35556-26010iRCH11199508-199804

main35556-30020iKCH1#,VCH1#199508-199907

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iKCH1#,RCH11,VCH1#199508-199907

35557PAWL, PARKING LOCK

main35557-26010iRCH11199508-199511

main35557-26020iRCH11199511-199804

main35557-30020iKCH1#,VCH1#199508-199907

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iRCH11199508-199804

main90508-21002iKCH1#,VCH1#,2#199907-200501

35561SHAFT, MANUAL VALVE LEVER

main35561-30060iRCH11199508-199804

main35561-35010iKCH1#,VCH1#199708-199907

main35561-35020iKCH1#199508-199708

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-26030iRCH11199508-199708

main35573-26040iKCH1#199508-199708

main35573-26050iKCH1#199708-199907

main35573-26060iRCH11199708-199804

main35573-26070iVCH1#199708-199907

35595BRACKET, PARKING LOCK PAWL

main35595-30010iKCH1#,VCH1#,2#199907-200501

main35595-40010iRCH11199508-199804

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

15 parts on this diagram · 5 diagrams in section
