VALVE BODY & OIL STRAINER (ATM)

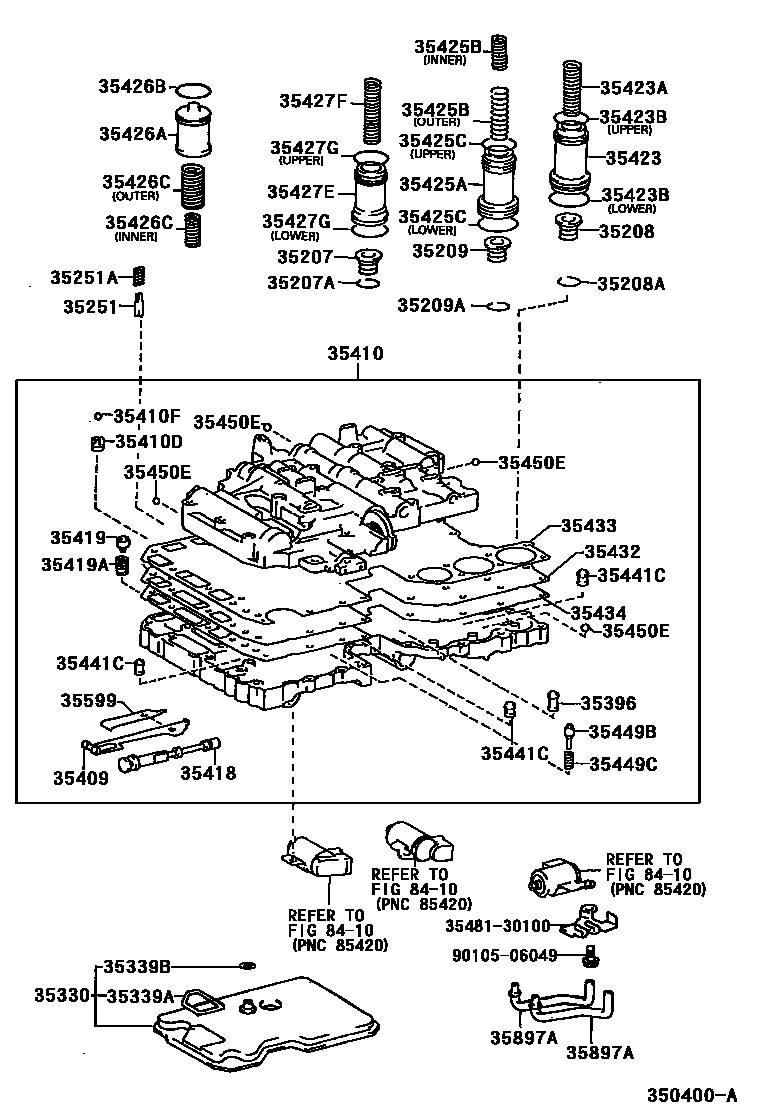

Parts diagram
35207SPRING SUB-ASSY, B-0 ACCUMULATOR
main35207-22010i199508-199907
35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)
main90521-22004i199907-200501
35208SPRING SUB-ASSY, B-2 ACCUMULATOR
main35208-22010i199708-199907
main35208-26010i199508-199804
main35208-30010i199907-200205
main35208-35010i199508-199907
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
main90521-22004i199508-199907
35209SPRING SUB-ASSY, C-2 ACCUMULATOR
main35209-22020i199508-199907
main35209-30010i199708-199907
35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
main90521-22004i199907-200501
35251BODY, CHECK BALL
main35251-30020i199508-199907
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
main90501-03005i199508-199907
35330STRAINER ASSY, VALVE BODY OIL
main35330-30011i199508-199907
main35330-30020i199907-200501
35339GASKET, OIL STRAINER
main35339-28030i199508-199804
35339AGASKET, OIL STRAINER, NO.1
main35339-30070i199508-199907
35339BGASKET, OIL STRAINER, NO.2
main90430-10010i199508-199907
35396STRAINER, THROTTLE OIL
main35396-30010i199508-199907
35409SPRING SUB-ASSY, MANUAL DETENT
main35409-22020i199907-200501
main35409-35010i199508-199804
35410BODY ASSY, TRANSMISSION VALVE
main35410-26360i199508-199708
main35410-26370i199510-199708
main35410-26390i199708-199907
main35410-26450i199708-199907
main35410-26570i199907-200501
main35410-26580i199907-200501
main35410-26590i199907-200205
main35410-26600i199907-200205
main35410-35381i199708-199907
main35410-35391i199708-199907
35410DVALVE, CHECK
main90917-10073i199508-199907
35410FBALL (FOR CHECK VALVE)
main90360-06004i199508-199907
35418VALVE, MANUAL
main35418-24010i199907-200501
main35418-30060i199508-199804
main35418-30070i199508-199907
35419VALVE, CHECK, NO.1
main35419-12030i199508-199907
main35419-22010i199508-199804
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
main90501-09093i199907-200501
main90501-11039i199508-199907
main90501-16083i199508-199804
35423PISTON, B-2 ACCUMULATOR
main35421-30020i199508-199804
main35423-30030i199508-199907
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
main90501-24014i199907-199911
main90501-25028i199911-200205
main90501-26041i199508-199804
main90501-27019i199907-200501
main90501-28011i199508-199907
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
main90301-23010i199708-199907
main90301-23194i199508-199708
main90301-29187i199508-199804
main90301-31002i199508-199708
main90301-31010i199708-199907
35425SEAT, PRESSURE REGULATOR VALVE SLEEVE
main35425-14010i199508-199804
35425APISTON, C-2 ACCUMULATOR
main35425-30020i199508-199907
main35441-30010i199508-199804
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
main90501-22015i199508-199907
main90501-22016i199907-199908
main90501-23093i199908-200501
main90501-25027i199508-199907
main90501-27013i199508-199804
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
main90301-18186i199508-199804
main90301-25003i199508-199708
main90301-25010i199708-199907
main90301-26190i199508-199804
main90301-31002i199508-199708
main90301-31010i199708-199907
35426APISTON, C-0 ACCUMULATOR
main35426-30010i199708-199907
main35426-40010i199508-199907
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
main90301-24001i199508-199708
main90301-24010i199907-200501
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
main90501-22008i199508-199907
main90501-23073i199508-199907
35427EPISTON, B-0 ACCUMULATOR
main35427-30030i199708-199907
main35427-30040i199508-199907
35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
main90501-21006i199508-199907
35427GRING, O (FOR B-0 ACCUMULATOR PISTON)
main90301-20002i199508-199708
main90301-20008i199708-199907
main90301-26002i199508-199708
main90301-26011i199907-200501
35432PLATE, VALVE BODY, NO.1
main35432-24041i199508-199907
main35432-26090i199508-199708
main35432-26130i199708-199804
main35432-26200i199907-200501
main35432-26320i199908-200501
main35432-26330i199907-200205
main35432-35130i199510-199907
main35432-35180i199708-199907
main35432-35190i199708-199907
main35432-60170i199907-199908
main35432-60180i199907-200205
35433GASKET, VALVE BODY, NO.1
main35433-22040i199508-199610
main35433-22041i199610-199804
main35433-30064i199508-199907
main35433-60040i199907-200501
35434GASKET, VALVE BODY, NO.2
main35434-22040i199508-199610
main35434-22041i199610-199804
main35434-30076i199508-199907
main35434-60040i199907-200501
35441CSTRAINER, SOLENOID OIL
main35441-12020i200408-200501
main35441-24010i199907-200501
main35441-24020i199907-200501
main35441-30020×2i199508-199907
main35441-30031i199508-199907
main35441-50030i199907-200408
35449BVALVE, PRESSURE RELIEF
main35449-32010i199508-199907
35449CSPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF)
main90501-09032i199508-199907
35450EBALL (FOR UPPER VALVE BODY)
main35495-22020×10i199708-199907
main35496-22030×2i199907-200501
35599COVER, MANUAL DETENT SPRING
main35599-22020i199508-199907
main35599-28010i199508-199804
35897ATUBE, 1ST & REVERSE BRAKE, NO.1
main35897-30010i199508-199804
main35897-30020×2i199508-199907
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
→ Go to FIG 84-10
3548130100BODY, GOVERNOR
main35481-30100
9010506049
main90105-06049

45 parts on this diagram · 17 diagrams in section
