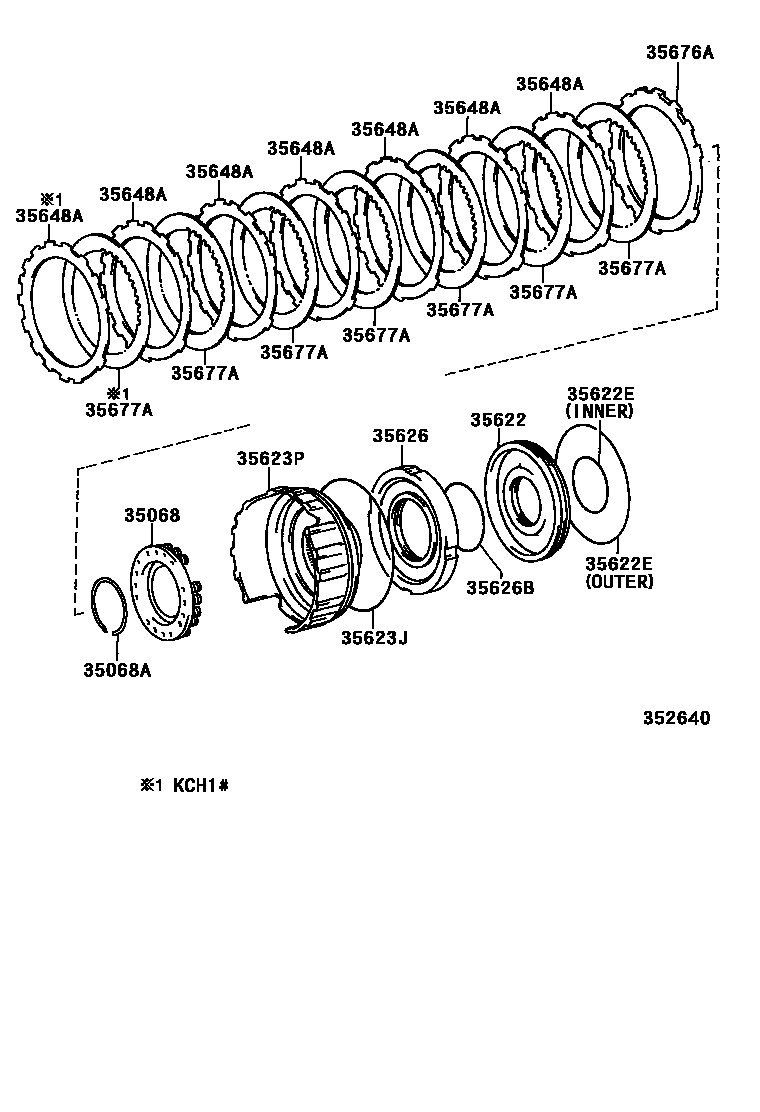

Toyota GRANVIA/GRAND HIACE — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-30011i199508-199708

main35068-50010i199708-199907

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262i199508-199907

35622PISTON, BRAKE, NO.2

main35622-22010i199508-199804

main35622-30010i199508-199907

35622ERING, O (FOR BRAKE PISTON NO.2)

main90301-56007i199907-200501

main90301-57188i199508-199804

main90301-99084i199907-200501

main90301-99193i199508-199907

35623PISTON, BRAKE, NO.3

main35623-22010i199508-199804

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99110i200404-200501

main90301-99192i199907-200205

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-14011i199508-199708

main35623-30012i199907-200501

35626SLEEVE, BRAKE REACTION

main35626-22010i199508-199804

main35626-30020i199508-199907

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-67005i199907-200501

main90301-68191i199508-199907

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-30031×7i199907-200205

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-30100i199907-200501

main35676-30110i199708-199907

main35676-50010i199508-199907

main35676-50020i199907-200501

main35676-50030i199508-199907

main35676-50040i199907-200501

main35676-50050i199907-200501

main35676-50060i199508-199907

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-30110×7i199510-199708

main35677-30130×7i199508-199708

main35677-30180×6i199905-199907

12 parts on this diagram · 2 diagrams in section

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) for Toyota GRANVIA/GRAND HIACE

This section contains 24 genuine Toyota parts for the BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) system of the Toyota GRANVIA/GRAND HIACE. Key components include: SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN, RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING), SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN, PISTON, BRAKE, NO.2, RING (FOR BRAKE PISTON OUTER).
