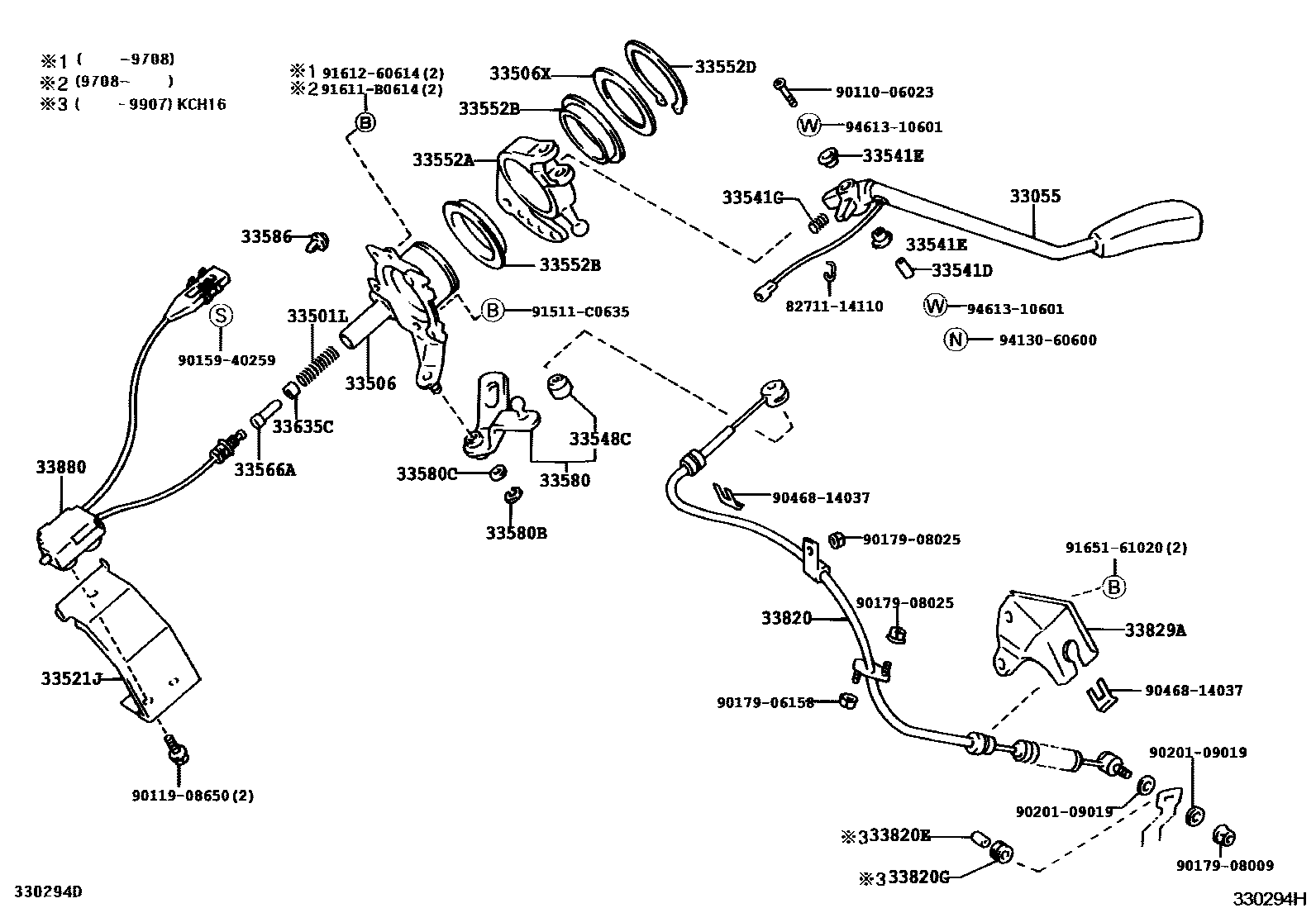

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1���� �����-� 0003 1

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-26060iKCH1#,RCH11199508-199708

main33055-26080iKCH1#,RCH11,VCH1#199708-199907

33501LSPRING, COMPRESSION (FOR COLUMN SHIFT CONTROL SHAFT)

main90501-06085iKCH1#,RCH11,VCH1#199508-199907

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-26050iKCH1#,RCH11,VCH1#199508-199907

33506XSPACER (FOR SHIFT LEVER ARM)

main90560-47001iKCH1#,RCH11,VCH1#199508-199907

main90560-47002iKCH1#,VCH1#,2#199907-200501

33521JHOUSING, SHIFT LEVER (FOR COLUMN SHIFT)

main33521-26060iKCH1#,RCH11199508-199708

main33521-26110iKCH1#,VCH1#,2#199907-200501

33541DCOLLAR (FOR COLUMN SHIFT LEVER)

main90387-06062iKCH1#,VCH1#,2#199907-200501

33541EBUSH (FOR COLUMN SHIFT LEVER)

main90386-10017×2iKCH1#,RCH11,VCH1#199508-199907

33541GSPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)

main90501-16146iKCH1#,RCH11,VCH1#199508-199907

33548CBUSH, SHIFT LEVER (FOR COLUMN SHIFT)

main33548-12021iKCH1#,RCH11,VCH1#199508-199907

33552AARM, SHIFT LEVER

main33552-26020iKCH1#,RCH11,VCH1#199508-199907

33552BBUSH (FOR SHIFT LEVER ARM)

main90386-47001×2iKCH1#,RCH11,VCH1#199508-199907

33552DRING, SNAP (FOR SHIFT LEVER ARM)

main90520-45010iKCH1#,RCH11,VCH1#199508-199907

33566APIN, SHIFT LEVER STOP (FOR COLUMN SHIFT)

main33566-26020iKCH1#,RCH11,VCH1#199508-199907

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-26010iKCH1#,RCH11199508-199708

main33580-26030iKCH1#,VCH1#,2#199907-200501

33580BRING, SHAFT SNAP (FOR SHIFTING BELLCRANK)

main96160-01000iKCH1#,RCH11,VCH1#199508-199907

33580CWASHER, PLATE (FOR SHIFTING BELL CRANK)

main90560-11028iKCH1#,RCH11,VCH1#199508-199907

33586STOPPER, CONTROL SHIFT LEVER

main33586-28011iKCH1#,RCH11,VCH1#199508-199904

main33586-28012iKCH1#,VCH1#199904-199907

33635CGUIDE, WIRE

main33635-28040iKCH1#,RCH11,VCH1#199508-199907

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-26080iKCH1#,RCH11199508-199708

main33820-26140iKCH1#199907-200205

main33820-26150iVCH1#199708-199907

33820EBUSH (FOR TRANSMISSION CONTROL CABLE)

main90389-08005iKCH16199510-199907

33820GGROMMET (FOR TRANSMISSION CONTROL CABLE)

main90480-17177iKCH16199510-199907

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-26010iKCH1#199907-200205

main33829-26030iVCH1#,2#199907-200205

main33829-26050iVCH2#200205-200501

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-26020iKCH1#,RCH11199508-199708

main33880-26030iKCH1#,VCH1#199907-200205

main33880-26040iKCH1#,RCH11,VCH1#..G199708-199907

main33880-26060iKCH1#,VCH1#,2#..4D199907-200002

main33880-26061iKCH1#,VCH1#,2#..4D200002-200501

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9011006023

main90110-06023

9011908650

main90119-08650

9015940259

main90159-40259

9017906158

main90179-06158

9017908009

main90179-08009

9017908025

main90179-08025

9020109019

main90201-09019

9046814037

main90468-14037

91511C0635

main91511-C0635

91611B0614

main91611-B0614

9161260614

main91612-60614

9165161020

main91651-61020

9413060600

main94130-60600

9461310601

main94613-10601

38 parts on this diagram · 3 diagrams in section
