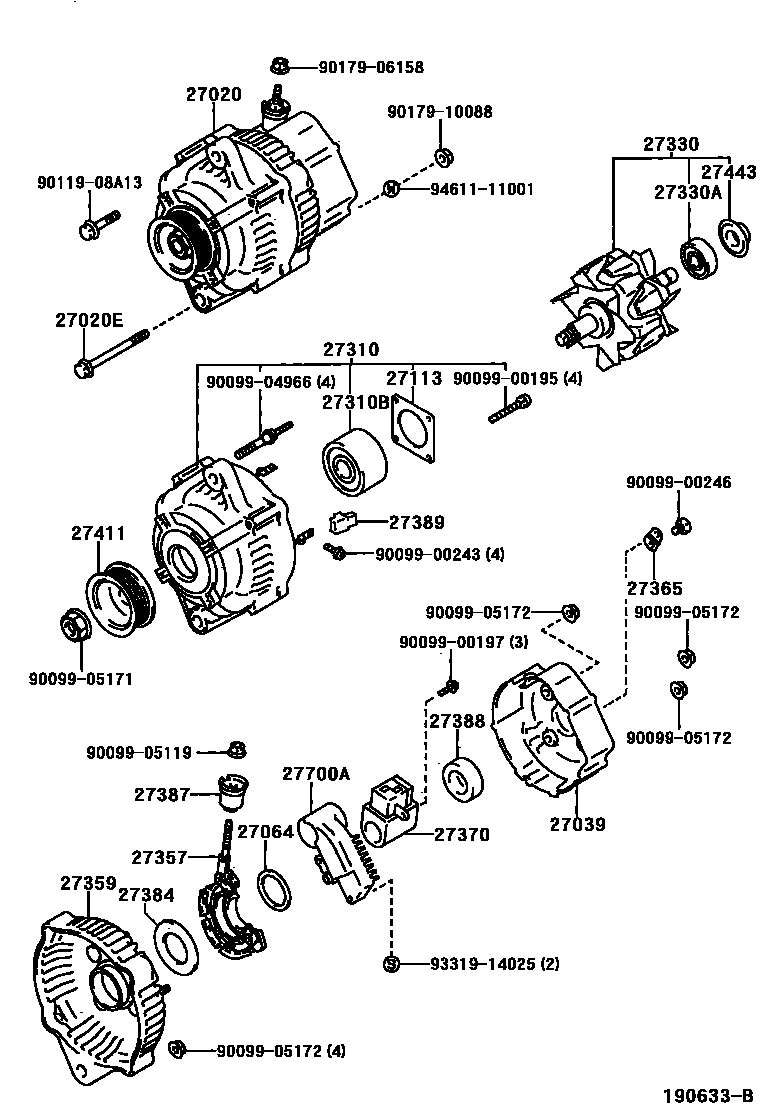

ALTERNATOR

0001 112V 70A,80A 0002 112V 80A,90A 0003 112V 70A

27020ALTERNATOR ASSY

main27060-62210i5VZFE..VCH1#199708-199907

main27060-62220i5VZFE..VCH1#,2#199907-200501

main27060-67040i1KZTE..KCH1#199508-199701

main27060-67120i1KZTE..KCH1#199701-199907

main27060-67150i1KZTE..KCH1#199907-200205

main27060-75110i3RZFE..RCH11199508-199604

main27060-75160i3RZFE..RCH11199604-199804

27020EBOLT(FOR ALTERNATOR)

main90105-10101i5VZFE..VCH1#199708-199907

main90105-10221i3RZFE..RCH11199508-199804

27039COVER, ALTERNATOR REAR END

main27039-55080i1KZTE,3RZFE,5VZFE..KCH1#,RCH11,VCH1#199508-199907

main27039-70470i1KZTE,5VZFE..KCH1#,VCH1#,2#200104-200501

27064SEAL, ALTERNATOR PLATE

main27064-42010i1KZTE,3RZFE,5VZFE..KCH1#,RCH11,VCH1#199508-199907

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i1KZTE,3RZFE,5VZFE..KCH1#,RCH11,VCH1#199508-199907

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-62150i5VZFE..VCH1#,2#199907-200501

main27310-62190i5VZFE..VCH1#199708-199907

main27310-67050i1KZTE..KCH1#199508-199701

main27310-67110i1KZTE..KCH1#199701-199907

main27310-75110i3RZFE..RCH11199508-199804

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10192i1KZTE,3RZFE,5VZFE..KCH1#,RCH11,VCH1#199508-199907

27330ROTOR ASSY, ALTERNATOR

main27330-72280i1KZTE,5VZFE..KCH1#,VCH1#,2#199907-200007

main27330-74550i1KZTE,5VZFE..KCH1#,VCH1#,2#200007-200501

main27330-76030i3RZFE,5VZFE..RCH11,VCH1#199701-199907

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1KZTE,3RZFE,5VZFE..KCH1#,RCH11,VCH1#199508-199907

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16310i1KZTE..KCH1#199508-199701

main27357-55080i1KZTE,3RZFE,5VZFE..KCH1#,RCH11,VCH1#199701-199907

27359FRAME, ALTERNATOR RECTIFIER END

main27359-62150i5VZFE..VCH1#199708-199907

main27359-67050i1KZTE..KCH1#199907-200205

main27359-72280i3RZFE..RCH11199508-199804

27365PLATE, TERMINAL

main27365-55080i1KZTE,3RZFE,5VZFE..KCH1#,RCH11,VCH1#199508-199907

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i1KZTE,5VZFE..KCH1#,VCH1#,2#199907-200501

27384WASHER

main27384-50030i1KZTE,3RZFE,5VZFE..KCH1#,RCH11,VCH1#199508-199907

27387INSULATOR, TERMINAL

main27387-42020i1KZTE,3RZFE..KCH1#,RCH11199508-199708

main27387-42021i1KZTE,3RZFE,5VZFE..KCH1#,RCH11,VCH1#199708-199907

27388COVER, ALTERNATOR BRUSH

main27388-42010i1KZTE,3RZFE,5VZFE..KCH1#,RCH11,VCH1#199508-199907

27389INSULATOR, TERMINAL

main27389-42010×4i1KZTE,3RZFE,5VZFE..KCH1#,RCH11,VCH1#199508-199907

27411PULLEY, ALTERNATOR

main27411-42030i3RZFE..RCH11199508-199804

main27411-50050i5VZFE..VCH1#199708-199907

main27411-67060i1KZTE..KCH1#199508-199907

27443COVER, ALTERNATOR BEARING

main27443-63020i5VZFE..VCH1#,2#200007-200501

27700AREGULATOR ASSY, GENERATOR

main27700-35040i3RZFE..RCH11199508-199604

main27700-50030i3RZFE..RCH11199604-199701

main27700-65010i1KZTE..KCH1#199508-199608

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9011908A13

main90119-08A13

9017906158

main90179-06158

9017910088

main90179-10088

9331914025

main93319-14025

9461111001

main94611-11001

33 parts on this diagram · 3 diagrams in section
