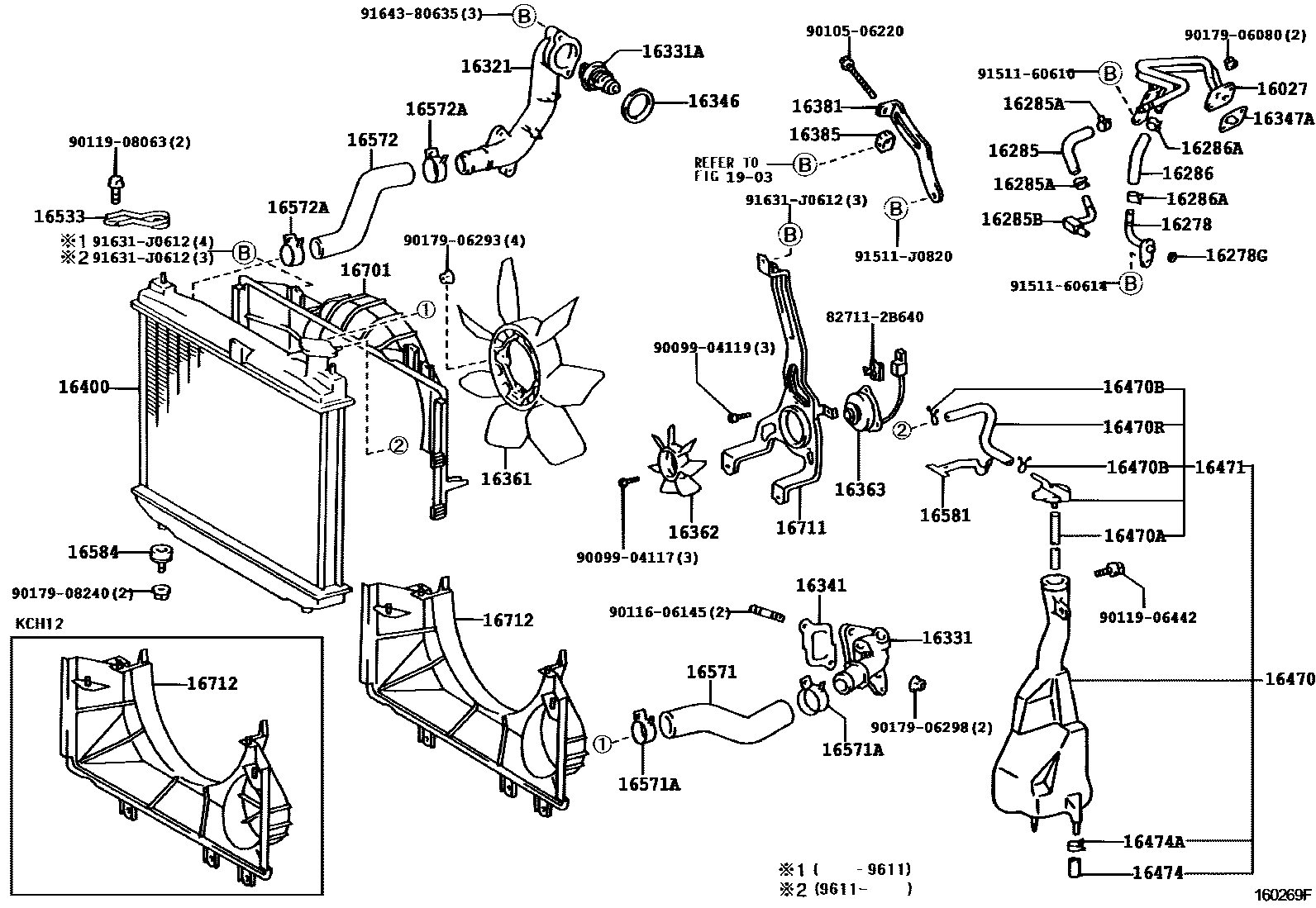

RADIATOR & WATER OUTLET
16027PIPE SUB-ASSY, TURBO WATER, NO.1
16278PIPE, WATER BY-PASS, NO.2
16278GRING, O(FOR WATER BY-PASS NO.2 PIPE)
16285HOSE, TURBO WATER, NO.2
16285ACLIP(FOR TURBO WATER HOSE NO.2)
16285BUNION(FOR TURBO WATER HOSE NO.2)
16286HOSE, TURBO WATER, NO.3
16286ACLIP(FOR TURBO WATER HOSE NO.3)
16321INLET, WATER
16331OUTLET, WATER
16331ATHERMOSTAT
16341GASKET, WATER OUTLET
16346GASKET, THERMOSTAT
16347AGASKET(FOR TURBO WATER PIPE)
16361FAN
16362FAN, NO.2
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16400RADIATOR ASSY
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16474CAP(FOR RADIATOR RESERVE TANK DRAIN)
16474ACLAMP OR CLIP(FOR RADIATOR RESERVE TANK DRAIN CAP)
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16581CLAMP, HOSE(FOR WATER HOSE)
16584INSULATOR, RADIATOR MOUNTING
16701SHROUD SUB-ASSY, FAN
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
1903ALTERNATOR
827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B640
9009904117
main90099-04117
9009904119
main90099-04119
9010506220
main90105-06220
9011606145
main90116-06145
9011906442
main90119-06442
9011908063
main90119-08063
9017906080
main90179-06080
9017906293
main90179-06293
9017906298
main90179-06298
9017908240
main90179-08240
9151160610
main91511-60610
9151160614
main91511-60614
91511J0820
main91511-J0820
91631J0612
main91631-J0612
9164380635
main91643-80635
54 parts on this diagram · 12 diagrams in section
