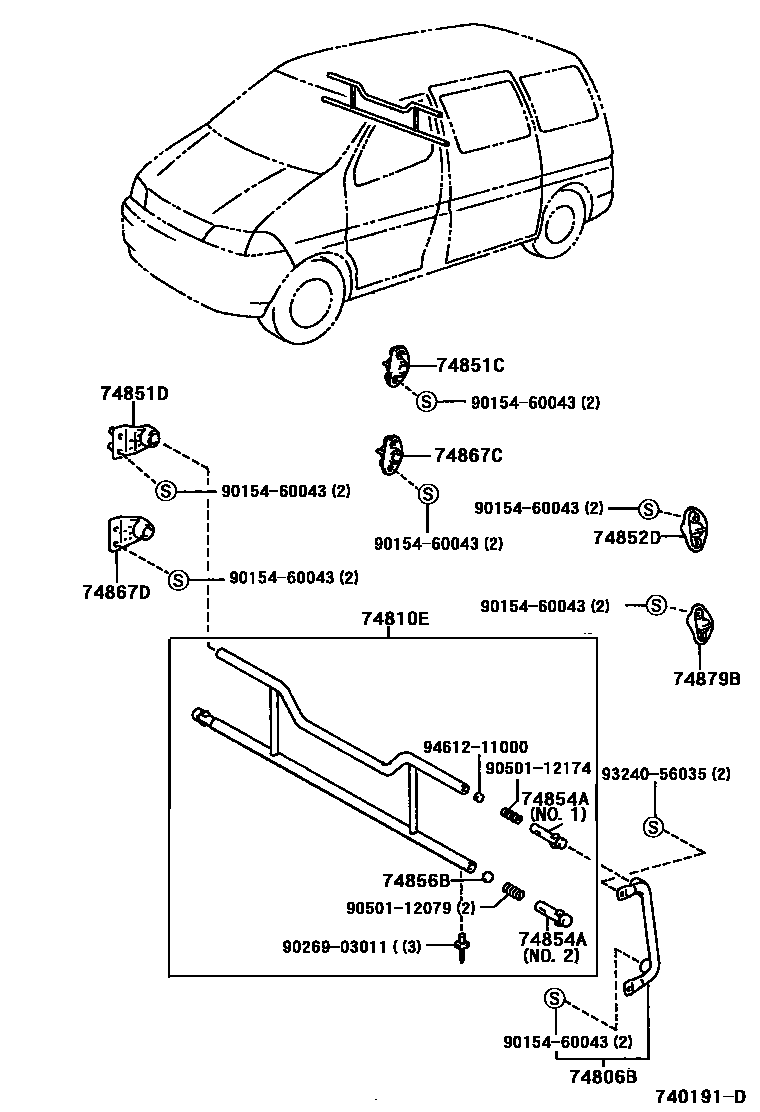

SEPARATOR & SEPARATOR CURTAIN

0001 1 0002 1 0003 1���������-�=���������

74806BBAR SUB-ASSY, SEPARATOR, B

main74806-26020-B0iLXH4#,RCH42..STD199706

BLUISH GRAY,TRIM1#

main74806-26030-B0iLXH4#..G199706

BLUISH GRAY,TRIM1#

74810EBAR ASSY, SEPARATOR

main74810-26070-B0iLXH4#,RCH42199706

BLUISH GRAY,TRIM1#

main74810-26080-B0iLXH4#..4D..STD199706

74851CBRACKET, SEPARATOR, UPPER RH

main74851-26060-B0iLXH4#..G199706

BLUISH GRAY,TRIM1#

74851DBRACKET, SEPARATOR BAR, UPPER RH

main74851-26050-B0iLXH4#..G199706

BLUISH GRAY,TRIM1#

main74851-95J01-B0iLXH4#,RCH42..STD199706

BLUISH GRAY,TRIM1#

74852DBRACKET, SEPARATOR BAR, UPPER LH

main74852-2F060-B0iLXH4#..G199706

BLUISH GRAY,TRIM1#

main74852-95J00-B0iLXH4#,RCH42..STD199706

BLUISH GRAY,TRIM1#

74854ASTOP, SEPARATOR

main74854-95J06-B0iLXH4#,RCH42199706

BLUISH GRAY,TRIM1#

main74854-95J07-B0iLXH4#,RCH42; LXH4#..4D..STD199706

74856BPLATE, SPRING SET

main74856-95A00iLXH4#,RCH42; LXH4#..4D..STD199706

74867CBRACKET, SEPARATOR BAR, LOWER

main74867-26040-B0iLXH4#..G199706

BLUISH GRAY,TRIM1#

74867DBRACKET, SEPARATOR BAR, LOWER

main74867-26030-B0iLXH4#..G199706

BLUISH GRAY,TRIM1#

main74867-95J00-B0iLXH4#,RCH42..STD199706

BLUISH GRAY,TRIM1#

74879BBRACKET, SEPARATOR BAR, LOWER LH

main74879-26030-B0iLXH4#..G199706

BLUISH GRAY,TRIM1#

main74879-95J01-B0iLXH4#,RCH42..STD199706

BLUISH GRAY,TRIM1#

9015460043

main90154-60043

9026903011

main90269-03011

9050112079

main90501-12079

9050112174

main90501-12174

9324056035

main93240-56035

9461211000

main94612-11000

16 parts on this diagram · 3 diagrams in section
