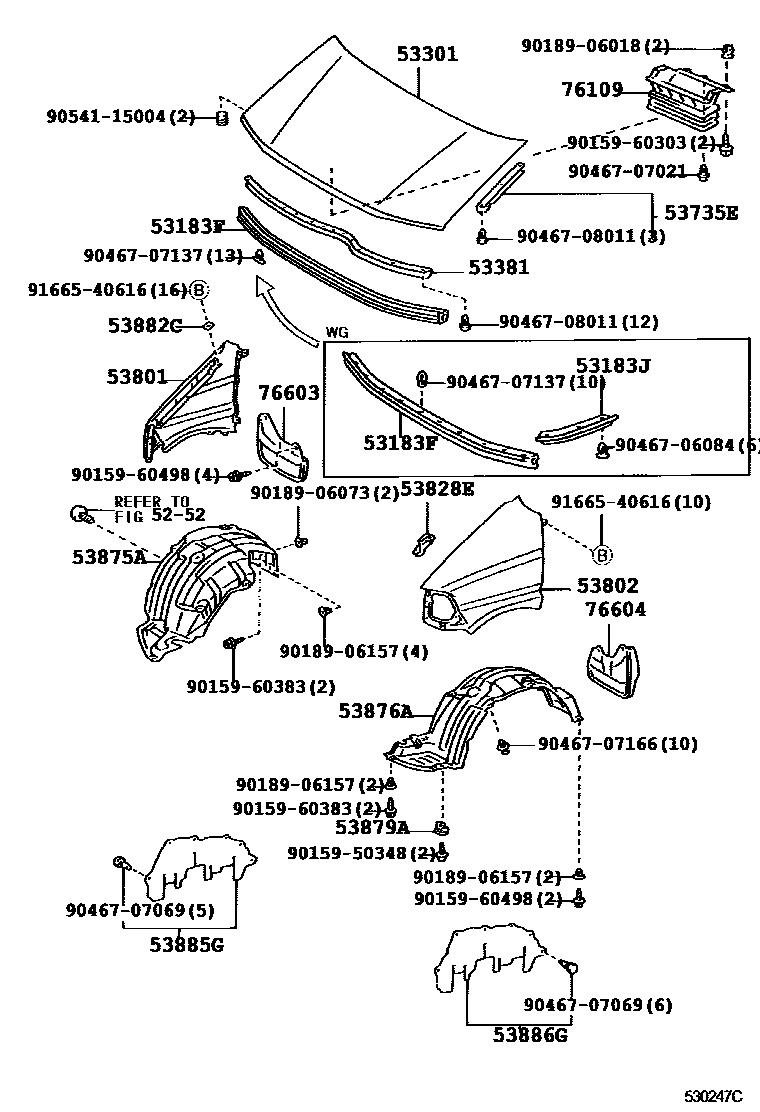

HOOD & FRONT FENDER

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

53183FSEAL, HEADLAMP COVER TO HOOD

main53183-26020iKCH4#,LXH4#,RCH4#199704-199907

main53183-26090iKCH4#,RCH41,47199907

53183JSEAL, HEADLAMP COVER TO HOOD

main53183-26100iKCH4#,RCH41,47199907

main53183-26110iKCH4#,RCH41,47199907

53301HOOD SUB-ASSY

main53301-26020iKCH4#,LXH4#,RCH4#199704-199802

main53301-26021iKCH4#,LXH4#,RCH4#199802-199907

main53301-26060iKCH4#199907

main53301-26070iRCH41,47199907

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-26020iKCH4#,LXH4#,RCH4#199704

53735ESEAL, FRONT FENDER APRON, UPPER

main53735-26020iKCH4#,LXH4#,RCH4#199704-199907

main53735-26030iKCH4#,RCH41,47199907

53801FENDER SUB-ASSY, FRONT RH

main53811-26020iKCH4#,LXH4#,RCH4#199704-199907

main53811-26040iKCH4#,RCH41,47199907

53802FENDER SUB-ASSY, FRONT LH

main53812-26020iKCH4#,LXH4#,RCH4#199704-199907

main53812-26050iKCH4#,RCH41,47199907

53828EPROTECTOR, FRONT SIDE PANEL, NO.3

main53828-26010iKCH4#,LXH4#,RCH4#199704-199907

53875ALINER, FRONT FENDER, RH

main53875-26020iKCH4#,LXH4#,RCH4#199704-199907

main53875-26030iKCH4#,RCH41,47..WISTD199907

main53875-26040iKCH4#,RCH41,47..G,V199907

53876ALINER, FRONT FENDER, LH

main53876-26020iKCH4#,LXH4#,RCH4#199704-199907

main53876-26030iKCH4#,RCH41,47..WISTD199907

main53876-26040iKCH4#,RCH41,47..G,V199907

53879ARETAINER, FRONT FENDER LINER

main53879-16010×2iKCH4#,LXH4#,RCH4#199704

53882CSEAL, FRONT FENDER MAIN

main53882-16030×6iKCH4#,LXH4#,RCH4#199704-199707

main53882-26010×6iKCH4#,LXH4#,RCH4#199707-199907

53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH

main53807-26010iKCH40,LXH43,RCH41,42199704

main53807-26020iKCH46,LXH49,RCH47199704

53886GSEAL, FENDER APRON MUDGUARD, LH

main53808-26010iKCH40,LXH43,RCH41,42199704

main53808-26020iKCH46,LXH49,RCH47199704

76109GUIDE SUB-ASSY, HOOD AIR INTAKE

main76109-26010iKCH4#199907

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-26010iLXH4#;KCH4#,RCH4#..E,STD,V199704

main76621-26020-A3iKCH4#,RCH41,47..V199907

WHITE,056

main76621-26020-B1iKCH4#,RCH41,47..V199907

BL.GRAY ME,2GB

main76621-26020-B2iKCH4#,RCH41,47..STD199712

main76621-26020-B3iKCH4#,RCH41,47..V199907

SILVER ME,199

main76621-26020-B4iKCH4#,RCH41,47..STD199804-199907

BLUISH SILVER ME.,1A0 ,2DM

main76621-26020-B7iKCH4#,RCH41,47..G,V199907

SILVER ME.,2FZ

main76621-26020-E0iKCH4#,RCH41,47..V200004-200011

main76621-26020-G1iKCH4#,RCH41,47..G,STD199804-199907

GRAYISH BREEN M,2DJ ,2EV

main76621-26020-G2iKCH4#,RCH41,47..STD199804-199907

LT. GREEN M.,6L5

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-26020iLXH4#;KCH4#,RCH4#..E,STD,V199704

main76622-26030-A2iKCH4#,RCH41,47..V199907

WHITE,056

main76622-26030-B1iKCH4#,RCH41,47..V199907

BL.GRAY ME,2GB

main76622-26030-B2iKCH4#,RCH41,47..STD199712

main76622-26030-B3iKCH4#,RCH41,47..G,STD199804-199907

SILVER ME,2EB

main76622-26030-B4iKCH4#,RCH41,47..STD199804-199907

BLUISH SILVER ME.,1A0 ,2DM

main76622-26030-B7iKCH4#,RCH41,47..G,V199907

SILVER ME.,2FZ

main76622-26030-E0iKCH4#,RCH41,47..V200004-200011

main76622-26030-G1iKCH4#,RCH41,47..G,V199907

GRAYISH BREEN M,2FY ,2GA

main76622-26030-G2iKCH4#,RCH41,47..STD199804-199907

LT. GREEN M.,6L5

9015950348

main90159-50348

9015960303

main90159-60303

9015960383

main90159-60383

9015960498

main90159-60498

9018906018

main90189-06018

9018906073

main90189-06073

9018906157

main90189-06157

9046706084

main90467-06084

9046707021

main90467-07021

9046707069

main90467-07069

9046707137

main90467-07137

9046707166

main90467-07166

9046708011

main90467-08011

9054115004

main90541-15004

9166540616

main91665-40616

33 parts on this diagram · 1 diagram in section
