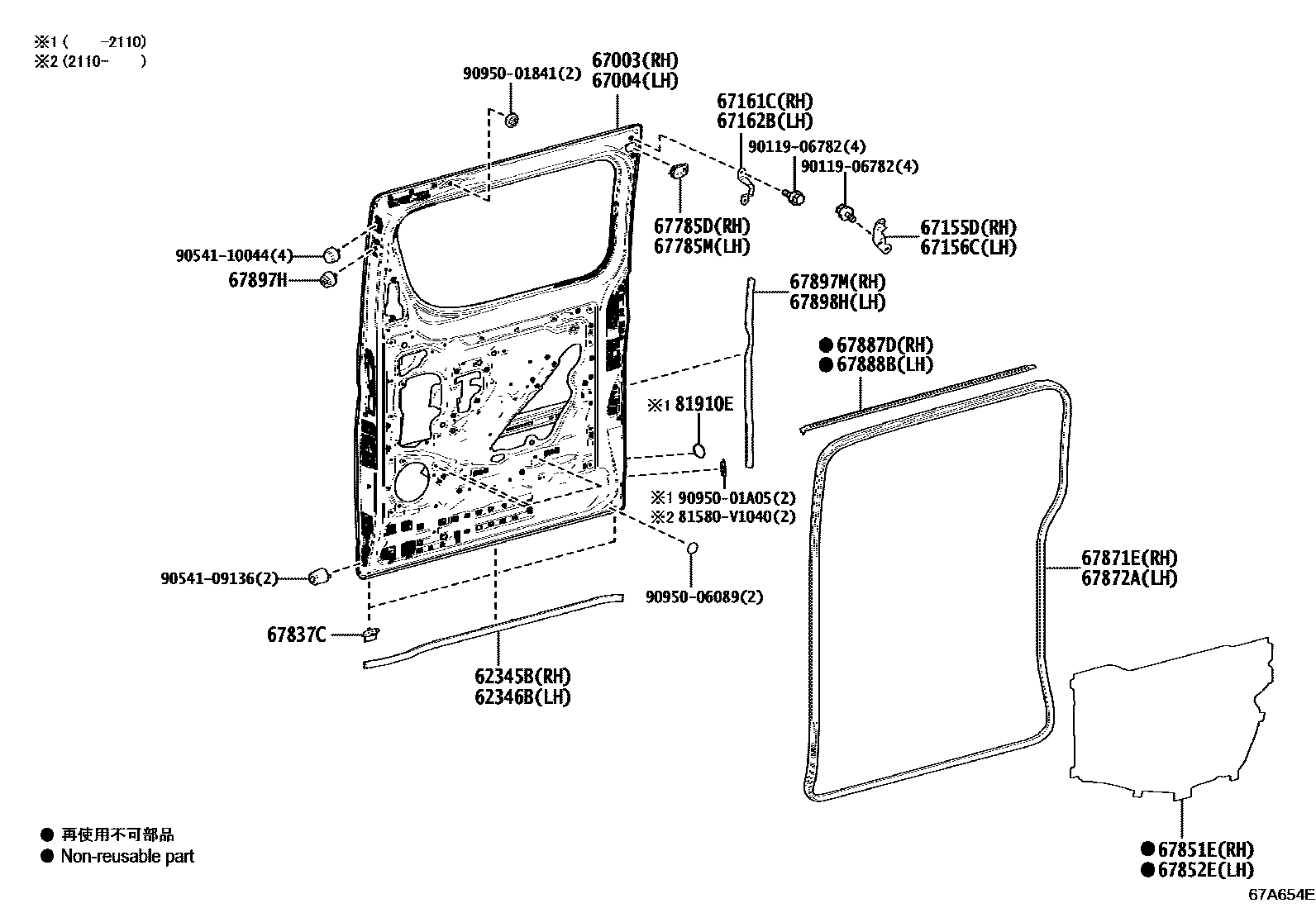

REAR DOOR PANEL & GLASS

0001 1��� ���� 0002 1��� ���

62345BWEATHERSTRIP, SLIDE DOOR, NO.3 RH

main62345-26010iGDH303201912-202506

62346BWEATHERSTRIP, SLIDE DOOR, NO.3 LH

main62346-26010iGDH303201912-202506

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-26561iGDH303201912-202506

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-26831iGDH303201912-202506

67155DBRACKET, REAR DOOR CORNER, RH

main67155-26060iGDH303201912-202506

67156CBRACKET, REAR DOOR CORNER, LH

main67156-26020iGDH303201912-202506

67161CEXTENSION, SLIDE DOOR INSIDE PANEL, UPPER RH

main67161-26030iGDH303201912-202506

67162BEXTENSION, SLIDE DOOR INSIDE PANEL, UPPER LH

main67162-26030iGDH303201912-202506

67785DCOVER, REAR DOOR TRIM, UPPER RH

main67785-26010iGDH303201912-202506

67785MCOVER, REAR DOOR TRIM, UPPER LH

main67785-26010iGDH303201912-202506

67837CSEAL, REAR DOOR DUST PROOF

main67837-48050×4iGDH303201912-202506

67851ECOVER, SLIDE DOOR SERVICE HOLE, RH

main67851-26070iGDH303201912-202506

67852ECOVER, SLIDE DOOR SERVICE HOLE, LH

main67852-26040iGDH303201912-202506

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67871-26060iGDH303201912-202201

main67871-V3020iGDH303202202-202506

67872AWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main67872-26060iGDH303201912-202201

main67872-V3020iGDH303202202-202506

67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-26040iGDH303201912-202506

67888BWEATHERSTRIP, SLIDE DOOR, NO.2 LH

main67888-26040iGDH303201912-202506

67897HCUSHION, REAR DOOR

main67897-26050iGDH303201912-202506

67897MWEATHERSTRIP, SLIDE DOOR, NO.4 RH

main67897-26040iGDH303201912-202506

67898HWEATHERSTRIP, SLIDE DOOR, NO.4 LH

main67898-26040iGDH303201912-202506

81910EREFLECTOR ASSY, REFLEX

main81910-21030iGDH303201912-202110

81580V1040REFLECTOR ASSY, REFLEX SIDE, RH

main81580-V1040

9011906782

main90119-06782

9054109136

main90541-09136

9054110044

main90541-10044

9095001841

main90950-01841

9095001A05

main90950-01A05

9095006089

main90950-06089

28 parts on this diagram · 2 diagrams in section
