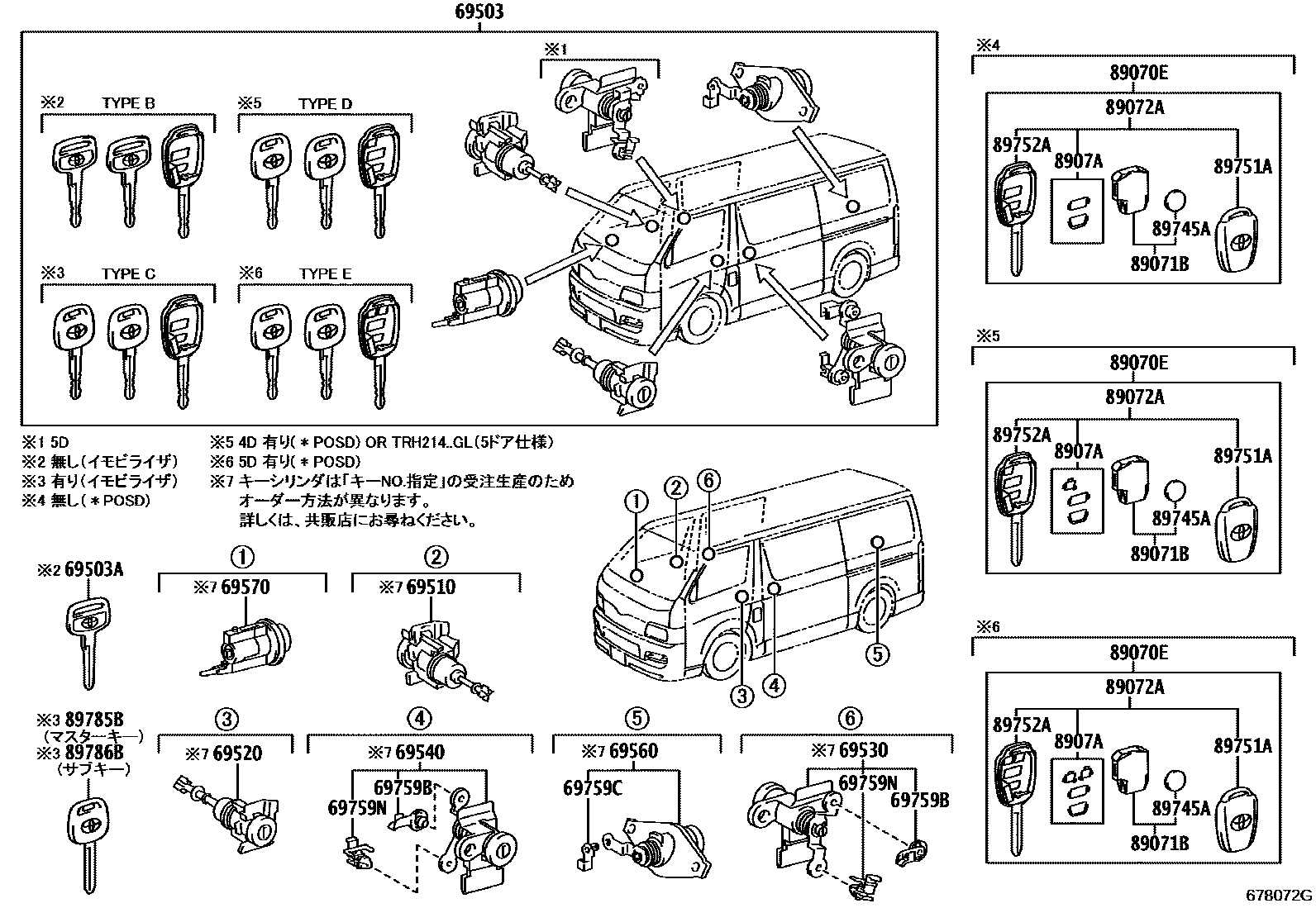

LOCK CYLINDER SET

0001 1��(��������) 0002 1��(��������) & ��(��������) 0003 1��(��������)

69503CYLINDER SET, LOCK

main69005-26573iTRH224..CBU;KDH20#,22#,TRH200,214,219,221,223,226,228,229..4D201312-201606

main69005-26583iTRH224..IV5201312-201605

main69005-26603iKDH20#,211,TRH200,211,216..5D201312-201606

main69005-26A30iKDH20#,22#,TRH200,214,219,22#..4D201606-201712

main69005-26A50iKDH20#,211,TRH200,211,216..5D201606-201712

main69005-26A80iGDH223,TRH214,219,223,224,228,229..4D..(GC,GL)..CBU202108-202507

main69005-26A90iGDH20#,211,TRH200,211,216..SGL202108-202507

main69005-26E60iGDH201..HRF..4D..CBU;GDH20#,TRH200..4D..SG..03S..6FC..CBU201712-202312

main69005-26E80iGDH201,TRH200..V2..HRF..6FC201712-202312

main69005-26332iKDH20#..5D..03S..4FC201312-201711

main69005-26680iGDH20#,KDH20#..5D..03S201606-202302

main69005-26690iKDH223,TRH214,219,223,224,228,229..(GC,GL)..CBU; KDH223,TRH223,228..GL..CBU; TRH214,219,224,229..(GC,GL)..CBU201312-201606

main69005-26700iKDH20#,211,TRH200,211,216..SGL201312-201606

main69005-26710iKDH20#,211,TRH200,211,216..SGL201312-201606

main69005-26770iTRH214..GL201404-201501

main69005-26A40iTRH214,219..DX;KDH223,TRH221,223,226,228..(02S,14S)..(CBU,IV6); TRH214,219..GL;KDH20#,223,TRH200,22#..HRF..(02S,03S,10S)..(CBU,IV5,IV7)201606-201712

main69005-26B00iKDH20#,211,TRH200,211,216..SGL201606-201712

main69005-26E40iGDH20#..V1..SP; GDH201..V2..03S; TRH200..V1..SP..6FC;GDH201..SRF..4D..06S;GDH206,221..4D..(05S,06S)201712-202507

main69005-26E50iGDH20#..5D..03S; GDH201..V1..SRF..5D..06S201712-202401

main69005-26E70iGDH206,TRH200,221,223,226,228..IV5,IV7; GDH223,TRH214,219,223,228..DX201712-202507

main69005-26E90supersedes 69005-26E80iGDH20#,211,TRH200,211,216..SGL201712-202108

69503AKEY, BLANK

main69515-52180iTRH214,219..5D201712-202507

main90999-00186iKDH20#..5D..03S..4FC201312-201711

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-26030iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-26030iKDH20#,211,22#,TRH200,21#,22#201312-201606

69530CYLINDER ASSY, SLIDE DOOR LOCK, RH

main69530-26041iTRH200..5D..5F201312-202107

69540CYLINDER ASSY, SLIDE DOOR LOCK, LH

main69540-26061iTRH200..5F;GDH201,223..IV5201312-202107

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-26060iTRH200..5F;GDH201,223..IV5201312-202107

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-33120iTRH200..5F;GDH201,223..IV5201312-202107

69759BSNAP, REAR DOOR LOCK CYLINDER

main69759-32090iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main69759-32100iGDH201,TRH200..V2..HRF..6FC201312-202312

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24090iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

69759NSNAP, DOOR LOCK CONTROL LINK

main69759-V3010×2iGDH206,211,TRH21#..5D;GDH201,TRH200..SRF..5D..6FC;GDH201,TRH200..V1..HRF..5D..6FC201712

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-26750iTRH200..5F;GDH201,223..IV5201312-202107

main89070-26770iTRH224..IV5201312-201605

main89070-26520iGDH201..5D..03S201712-202204

main89070-26830iGDH20#,211,KDH20#,211,TRH200,211,216..SGL201312-202108

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-12290iKDH20#,211,TRH200,211,216..SGL; TRH200,211,216..5D..(5F,6FC); TRH200,211,216..6FC..SGL201312-201711

main89071-52310iTRH224..IV5201312-201605

main89071-52320×2iTRH200..5F;GDH201,223..IV5202012-202107

main89071-28330×2iGDH20#,211,TRH200,211,216..SGL201712-202108

main89071-52220×2iGDH201,223..IV5202012-202107

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-26270iTRH224..IV5201312-201605

main89072-42400iTRH200..5F;GDH201,223..IV5201312-202107

main89072-26290iGDH20#,211,KDH20#,211,TRH200,211,216..SGL201312-202108

main89072-68050iGDH20#,KDH20#..5D..03S201312-202302

8907ASWITCH SET, TRANSMITTER

main8907A-52010×2iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201712-202312

main8907A-52030iTRH224..IV5201312-201605

main8907A-28060×2iGDH20#,211,TRH200,211,216..SGL201712-202108

89745ABATTERY, TRANSMITTER

main89745-48030iTRH200,211,216..5D..(5F,6FC); TRH200,211,216..6FC..SGL201312-201711

main89745-71010iTRH214,219..4D..GL;GDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU202012-202108

89751ACOVER, TRANSMITTER HOUSING

main89751-42090iKDH20#,211,TRH200,211,216..SGL; TRH200,211,216..5D..(5F,6FC); TRH200,211,216..6FC..SGL201312-201711

89752ACASE, TRANSMITTER HOUSING

main89752-42050iTRH200..5F;GDH201,223..IV5201312-202107

main89752-42060iTRH224..IV5201312-201605

main89752-42020iGDH20#,211,KDH20#,211,TRH200,211,216..SGL201312-202108

main89752-68080iGDH201..5D..03S201712-202204

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-26040iKDH20#,211,22#,TRH200,21#,22#; KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU201312-201712

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-42040iKDH20#,211,22#,TRH200,21#,22#; KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU201312-201712
