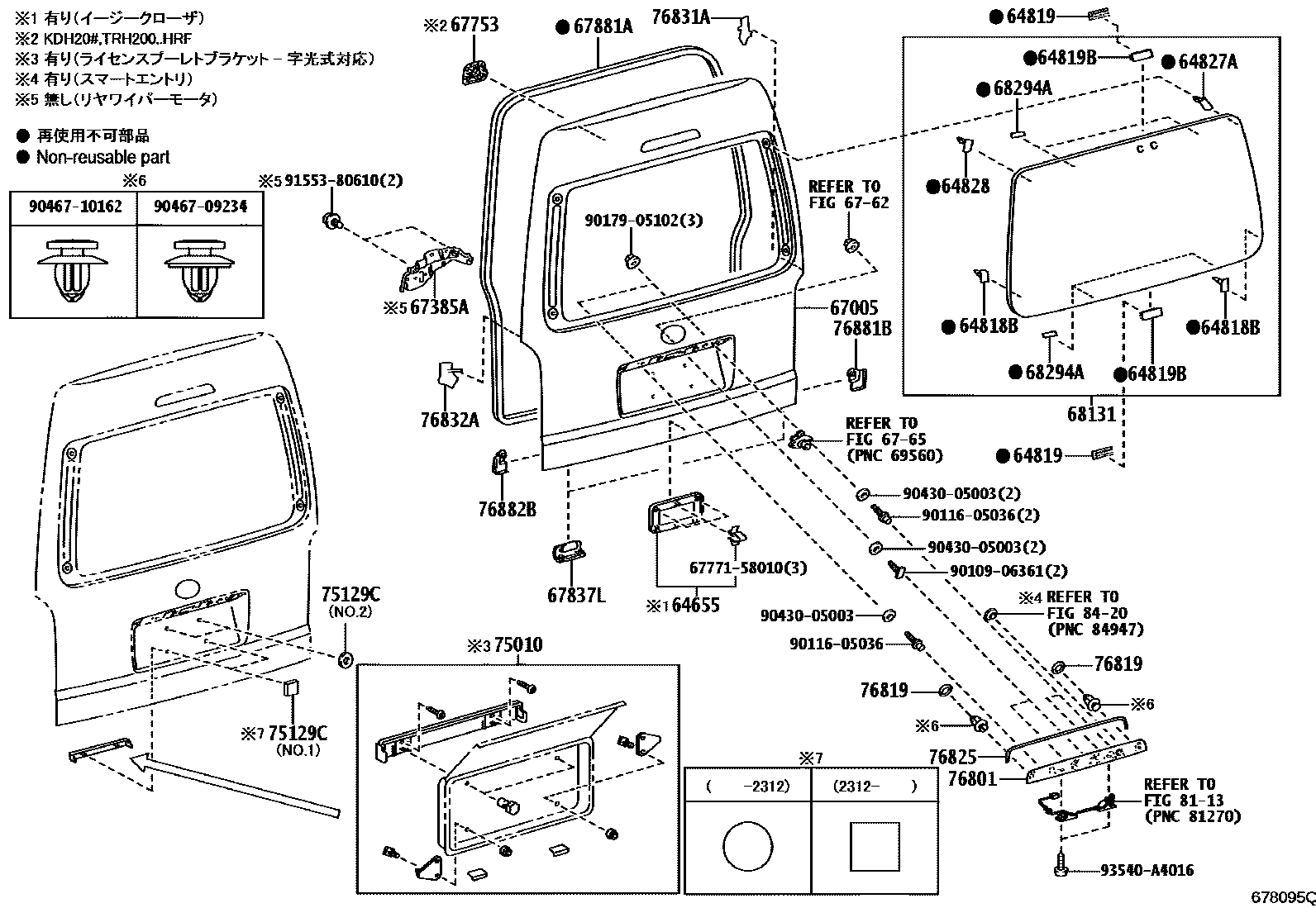

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

64655COVER, BACK DOOR CLOSER

main64655-26060-B1iGDH201,KDH201,TRH200..V2..03S;GDH206,KDH20#,TRH200,221,226..IV5,IV7;GDH20#,211,KDH20#,211,223,TRH200,21#,223,224,228,229..(02S,05S,10S)..(GC,GL,SGL)201312

DK.GRAY,TRIM1#

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-26050iGDH201,223..IV5;TRH200..(06S,09S)..5F201312-202107

main64819-26050iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-26060×2iGDH201,223..IV5;TRH200..(06S,09S)..5F201312-202107

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-26010×2iGDH201,223..IV5;TRH200..(06S,09S)..5F201312-202107

64827ACLIP, BACK WINDOW GLASS, RH

main64827-26030iGDH223..IV5201312-202107

main64827-26040iTRH200..03S..5F201312-202108

64828CLIP, BACK WINDOW GLASS, LH

main64828-26030iGDH201,223..IV5;TRH200..(06S,09S)..5F201312-202107

67005PANEL SUB-ASSY, BACK DOOR

main67005-26E11iGDH201,KDH201,TRH200..V2..03S201312-202507

main67005-26F92supersedes 67005-26F72iGDH20#,KDH20#..SRF..(06S,09S);TRH200..SRF..(06S,09S)..(4FC,6FC)201312-202507

main67005-26J22iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC201312-202312

main67005-26J42iGDH206,KDH20#,TRH200..IV5201312-202507

main67005-26K52iTRH221,226..IV7201312-202005

main67005-26Q20iGDH20#,KDH20#,TRH200..SGL201312-202507

main67005-26Q40iGDH211,KDH211,TRH21#..GL,SGL201312-202507

main67005-26R10iGDH221,226,TRH221,226..6FC..IV6201312-202108

main67005-26R60iGDH223..IV5201312-202107

main67005-26E02supersedes 67005-26C92iTRH214,219..DX201312-202507

main67005-26E32iGDH223,KDH223,TRH223,228..DX201312-202507

main67005-26F50iGDH20#,TRH200..V1..03S..6FC..CBU; GDH20#,TRH200..V1..03S..CBU202005-202108

main67005-26P20iGDH20#,KDH20#,TRH200..SRF..(06S,09S); GDH20#,KDH20#,TRH200..V1..03S..CBU201312-202005

main67005-26P31iGDH20#,TRH200..V1..SP..6FC202401-202507

main67005-26P40iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC202005-202312

main67005-26P51iGDH20#,TRH200..V1..HRF..5D..6FC; GDH206,TRH200..HRF..4D..6FC..CBU202401-202507

main67005-26P60iTRH214,219..DX201312-202005

main67005-26P90iTRH214,219..DX202005-202507

main67005-26Q00iGDH223,TRH223,228..DX202005-202507

main67005-26Q30iGDH20#,TRH200..SRF..5D..6FC..DX; GDH20#,TRH200..V1..SP..6FC;GDH20#,TRH200..SRF..4D..(06S,09S)..6FC202401-202507

main67005-26Q80iGDH211,TRH21#..GL,SGL; GDH211,TRH211,216;TRH214,219..4D..GL202005-202507

main67005-26T30iGDH221,226,TRH221,226..IV6202005-202108

main67005-26T40iGDH223..IV5202005-202107

main67005-26Z50iGDH20#,TRH200..V1..03S..CBU202005-202108

main67005-26Z60iGDH20#,TRH200..V1..03S..6FC..CBU; GDH20#,TRH200..V1..03S..CBU202005-202108

main67005-26Z70supersedes 67005-26F92iGDH20#,TRH200..4D..SG..03S..6FC..CBU202108-202312

main67005-26Z80iGDH20#,TRH200..V1..03S..CBU202005-202108

main67005-26Z90iGDH20#,TRH200..SRF..5D..6FC..DX; GDH20#,TRH200..V1..SP..6FC;GDH20#,TRH200..SRF..4D..(06S,09S)..6FC202401-202507

main67005-2FA00iGDH20#,TRH200..SRF..5D..6FC..DX; GDH20#,TRH200..V1..SP..6FC;GDH20#,TRH200..SRF..4D..(06S,09S)..6FC202401-202507

main67005-2FA10iGDH20#,TRH200..V1..SP..6FC202108-202401

main67005-2FA20iGDH20#,TRH200..V1..SP..6FC202108-202401

main67005-2FA30iGDH201..V1..HRF..5D;GDH206,TRH200..V1..HRF..6FC..CBU202005-202507

main67005-2FA40iGDH201..V1..HRF..5D;GDH206,TRH200..V1..HRF..6FC..CBU202005-202507

main67005-2FA50iGDH20#,TRH200..V1..HRF..5D..6FC; GDH206,TRH200..HRF..4D..6FC..CBU202401-202507

main67005-2FA60iGDH20#,TRH200..V1..HRF..5D..6FC; GDH206,TRH200..HRF..4D..6FC..CBU202401-202507

main67005-2FA70iTRH214,219..DX202005-202507

main67005-2FA80iTRH214,219..DX202005-202507

main67005-2FA90iGDH211,TRH21#..GL,SGL202005-202507

main67005-2FB00iGDH211,TRH21#..GL,SGL202005-202507

main67005-2FB10iTRH214,219..DX202005-202507

main67005-2FB20iTRH214,219..DX202005-202507

main67005-2FB30iGDH221,226,TRH221,226..IV6202005-202108

main67005-2FB40iGDH221,226,TRH221,226..IV6202005-202108

main67005-2FB50iTRH223,224,228,229..02S,10S202005-202507

main67005-2FB60iTRH223,224,228,229..02S,10S202005-202507

main67005-2FB70iGDH223,TRH223,228..DX202005-202507

main67005-2FB80iGDH223,TRH223,228..DX202005-202507

main67005-2FB90supersedes 67005-2FC20iTRH221,226..IV7202005-202401

main67005-2FC00supersedes 67005-2FC20iTRH221,226..IV7202005-202401

main67005-2FC10supersedes 67005-2FC20iTRH221,226..IV7202005-202401

main67005-V3040supersedes 67005-V3050iTRH221,226..IV7202401-202507

67385AREINFORCEMENT, BACK DOOR WIPER BASE, RH

main67385-26100iGDH20#,TRH200..V1..SP..6FC202108

6762BACK DOOR LOCK & HINGE

→ Go to FIG 67-62

6765LOCK CYLINDER SET

→ Go to FIG 67-65

67753COVER, BACK DOOR

main82719-26050-B0iGDH201..IV5;TRH200..HRF..5F201312-202107

LT.GRAY,TRIM1#

67837LSEAL, DOOR DUST PROOF

main67837-26040×2iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

67881AWEATHERSTRIP, BACK DOOR

main67881-26073iGDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main67881-26083iGDH201..IV5;TRH200..HRF..5F201312-202107

main67881-26093iGDH211,KDH211,TRH21#201312

main67881-26103iKDH223,TRH223,224,228;GDH22#,KDH221,TRH221,226,229..CBU,IV6201312

main67881-26113iTRH221,226..IV7201312

68131GLASS, BACK DOOR

main68105-26130supersedes 68105-26121iTRH219..5D201712-201903

main68105-26131supersedes 68105-26122iGDH22#,TRH214,219,221,223,226,228..DX..CBU; TRH219..4D..GL;TRH221,226..02S;GDH211,223,TRH211,214,216,223,224,228,229..GC,GL,SGL; TRH219..5D201904-202005

main68105-26200iGDH20#,KDH20#,TRH200..V1..SP; GDH201,KDH201,TRH200..V2..03S201312-201903

main68105-26201iGDH20#,TRH200..V1..SP; GDH201,TRH200..V2..03S201904-202005

main68105-26091iGDH223,KDH223,TRH223,228..IV5; TRH224..IV5;GDH22#,KDH22#,TRH214,219,221,223,226,228..DX..CBU201312-201903

main68105-26093iGDH22#,TRH214,219,221,223,226,228..DX..CBU; GDH223,TRH223,228..IV5201904-202005

main68105-26100iGDH223,KDH223,TRH223,228..IV5; TRH224..IV5;GDH22#,KDH22#,TRH214,219,221,223,226,228..DX..CBU201312-201903

main68105-26101supersedes 68105-26093iGDH22#,TRH214,219,221,223,226,228..DX..CBU; GDH223,TRH223,228..IV5201904-202005

main68105-26121iGDH22#,KDH22#,TRH214,219,221,223,226,228..DX..CBU; TRH219..4D..GL;TRH221,224,226..(02S,10S)..(CBU,IV6,IV7);GDH211,223,KDH211,223,TRH211,214,216,223,228,229..GC,GL,SGL201312-201903

main68105-26122supersedes 68105-26093iGDH22#,TRH214,219,221,223,226,228..DX..CBU; TRH219..4D..GL;TRH221,226..02S;GDH211,223,TRH211,214,216,223,224,228,229..GC,GL,SGL201904-202005

main68105-26150iGDH20#,KDH20#,TRH200..06S,09S; GDH20#,KDH20#,TRH200..IV5; GDH20#,KDH20#,TRH200..V1..03S..CBU201312-201903

main68105-26151iGDH20#,TRH200..06S,09S; GDH20#,TRH200..IV5; GDH20#,TRH200..V1..03S..CBU201904-202005

main68105-26160iGDH20#,KDH20#,TRH200..06S,09S; GDH20#,KDH20#,TRH200..IV5; GDH20#,KDH20#,TRH200..V1..03S..CBU201312-201903

main68105-26161iGDH20#,TRH200..06S,09S; GDH20#,TRH200..IV5; GDH20#,TRH200..V1..03S..CBU201904-202005

main68105-26170supersedes 68105-26140iGDH20#,KDH20#,TRH200..V1..03S..CBU201312-201903

main68105-26171supersedes 68105-26141iGDH20#,TRH200..V1..03S..CBU201904-202005

main68105-26180supersedes 68105-26150iGDH20#,KDH20#,TRH200..06S,09S; GDH20#,KDH20#,TRH200..SGL;GDH20#,KDH20#,TRH200..IV5; GDH20#,KDH20#,TRH200..V1..03S..CBU201312-201903

main68105-26181supersedes 68105-26151iGDH20#,TRH200..06S,09S; GDH20#,TRH200..SGL;GDH20#,TRH200..IV5; GDH20#,TRH200..V1..03S..CBU201904-202005

main68105-26190supersedes 68105-26140iGDH20#,KDH20#,TRH200..06S,09S; GDH20#,KDH20#,TRH200..SGL;GDH20#,KDH20#,TRH200..IV5; GDH20#,KDH20#,TRH200..V1..03S..CBU201312-201903

main68105-26191supersedes 68105-26151iGDH20#,TRH200..06S,09S; GDH20#,TRH200..SGL;GDH20#,TRH200..IV5; GDH20#,TRH200..V1..03S..CBU201904-202005

main68105-26520iGDH206,TRH200..IV5; GDH206..06S,09S;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC..CBU;GDH201,TRH200..SRF..(06S,09S)..6FC202005

main68105-26530supersedes 68105-26550iGDH201..IV5; TRH200..(06S,09S)..5F202005-202107

main68105-26540supersedes 68105-26400iGDH20#,TRH200..V1..03S..CBU202005-202108

main68105-26550supersedes 68105-26520iGDH20#,TRH200..V1..SP..6FC;GDH20#,TRH200..5D..03S..6FC202108

main68105-26560supersedes 68105-26520iGDH20#,TRH200..SGL;GDH206,TRH200..IV5; GDH206..06S,09S;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC..CBU;GDH201,TRH200..SRF..(06S,09S)..6FC202005

main68105-26570iGDH20#,TRH200..V1..SP..6FC202108

main68105-26580supersedes 68105-26400iGDH20#,TRH200..V1..03S..CBU202005-202108

main68105-26590supersedes 68105-26550iGDH201..IV5; TRH200..(06S,09S)..5F202005-202107

main68105-26600supersedes 68105-26550iGDH201..IV5; TRH200..(06S,09S)..5F202005-202107

main68105-26610supersedes 68105-26400iGDH20#,TRH200..V1..03S..CBU202005-202108

main68105-26620supersedes 68105-26520iGDH201..IV5; TRH200..(06S,09S)..5F202005-202107

main68105-26630supersedes 68105-26520iGDH20#,TRH200..4D..SG..03S..6FC..CBU202108-202312

main68105-26640iGDH20#,TRH200..V1..SP202005-202108

main68105-26660iGDH22#,TRH214,219,221,223,226,228..DX..CBU; TRH223,228..IV5202005

main68105-26670supersedes 68105-26660iGDH22#,TRH214,219,221,223,226,228..DX..CBU; TRH223,228..IV5202005

main68105-26700supersedes 68105-26660iGDH22#,TRH214,219,221,223,226,228..DX..CBU; GDH221,226,TRH221,226..IV6;GDH223,TRH219..4D..GL..CBU;GDH211,TRH211,214,216,223,224,228,229..GC,GL,SGL202005

main68105-26710supersedes 68105-26700iGDH223..IV5202005-202107

main68105-26730supersedes 68105-26660iGDH22#,TRH214,219,221,223,226,228..DX..CBU; TRH223,228..IV5202005-202507

main68105-26740iGDH22#,TRH214,219,221,223,226,228..DX..CBU; TRH223,228..IV5202005

main68105-26750supersedes 68105-26660iGDH22#,TRH214,219,221,223,226,228..DX..CBU; GDH221,226,TRH221,226..IV6;GDH223,TRH219..4D..GL..CBU;GDH211,TRH211,214,216,223,224,228,229..GC,GL,SGL202005-202507

main68105-26760supersedes 68105-26710iGDH22#,TRH214,219,221,223,226,228..DX..CBU; GDH221,226,TRH221,226..IV6;GDH223,TRH219..4D..GL..CBU;GDH211,TRH211,214,216,223,224,228,229..GC,GL,SGL; TRH219..5D202005

68294ADAM, BACK DOOR GLASS ADHESIVE

main68294-26030×4iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

75010FRAME, REAR LICENSE PLATE

main75010-44010iGDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#201312-202108

75129CCUSHION, REAR LICENCE PLATE

main75129-26010×2iTRH200..5F;GDH201,223..IV5201312-202107

main75129-26020×2iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main75129-V3010×2iGDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC;GDH206,TRH223,228..HRF..(02S,03S,14S);GDH206,211,22#,TRH21#,221,224,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)202312

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76811-26140iGDH221,226,TRH221,226..02S;KDH20#,211,TRH200,21#,224,229..4FC..(GC,GL,SGL)..CBU; KDH20#..06S,09S;TRH200..09S..4FC;GDH201..V1..HRF..5D;GDH201..V1..SRF..06S;TRH200..V2..06S..4FC;GDH206,221,226,KDH221,TRH200,221,226..V1..(05S,06S)..(4FC,6FC)..DX201312-202507

main76811-26150iGDH221,226,TRH221,226..IV6;KDH20#,211,TRH200,21#,224,229..4FC..(GC,GL,SGL)..CBU; KDH20#..06S,09S;TRH200..09S..4FC;GDH201..V1..HRF..5D;GDH201..V1..SRF..06S;TRH200..V2..06S..4FC;GDH206,221,226,KDH221,TRH200,221,226..V1..(05S,06S)..(4FC,6FC)..DX201312-202507

main76811-26160iGDH201,223..IV5202005-202107

main76811-26210iTRH214,219..4D..GL;GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,224,228,229..(GC,GL,SGL)..CBU201312-202108

main76811-26220supersedes 76811-26210iTRH214,219..5D202005-202507

main76811-26230iGDH20#,211,TRH200,211,216..SGL201808-202108

main76811-26240iGDH20#,211,TRH200,211,216..SGL201808-202108

main76811-V3040iGDH20#..SGL202410-202507

main76811-V3050iGDH20#..SGL202410-202507

76819SEAL, BACK DOOR OUTSIDE GARNISH

main76819-26020×2iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202303-202312

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-26120iTRH200..5F;GDH201,223..IV5201312-202107

main76825-26160iTRH214,219..5D201712

76831ACOVER, BACK DOOR FINISH PANEL, RH

76832ACOVER, BACK DOOR FINISH PANEL, LH

76881BPROTECTOR, BACK DOOR LOWER MOULDING, RH

main76881-26010iTRH200..5F;GDH201,223..IV5201312-202107

76882BPROTECTOR, BACK DOOR LOWER MOULDING, LH

main76882-26010iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

6777158010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-58010

9010906361

main90109-06361

9011605036

main90116-05036

9017905102

main90179-05102

9043005003

main90430-05003

9046709234

main90467-09234

9046710162

main90467-10162

9155380610

main91553-80610

93540A4016

main93540-A4016

35 parts on this diagram · 2 diagrams in section
