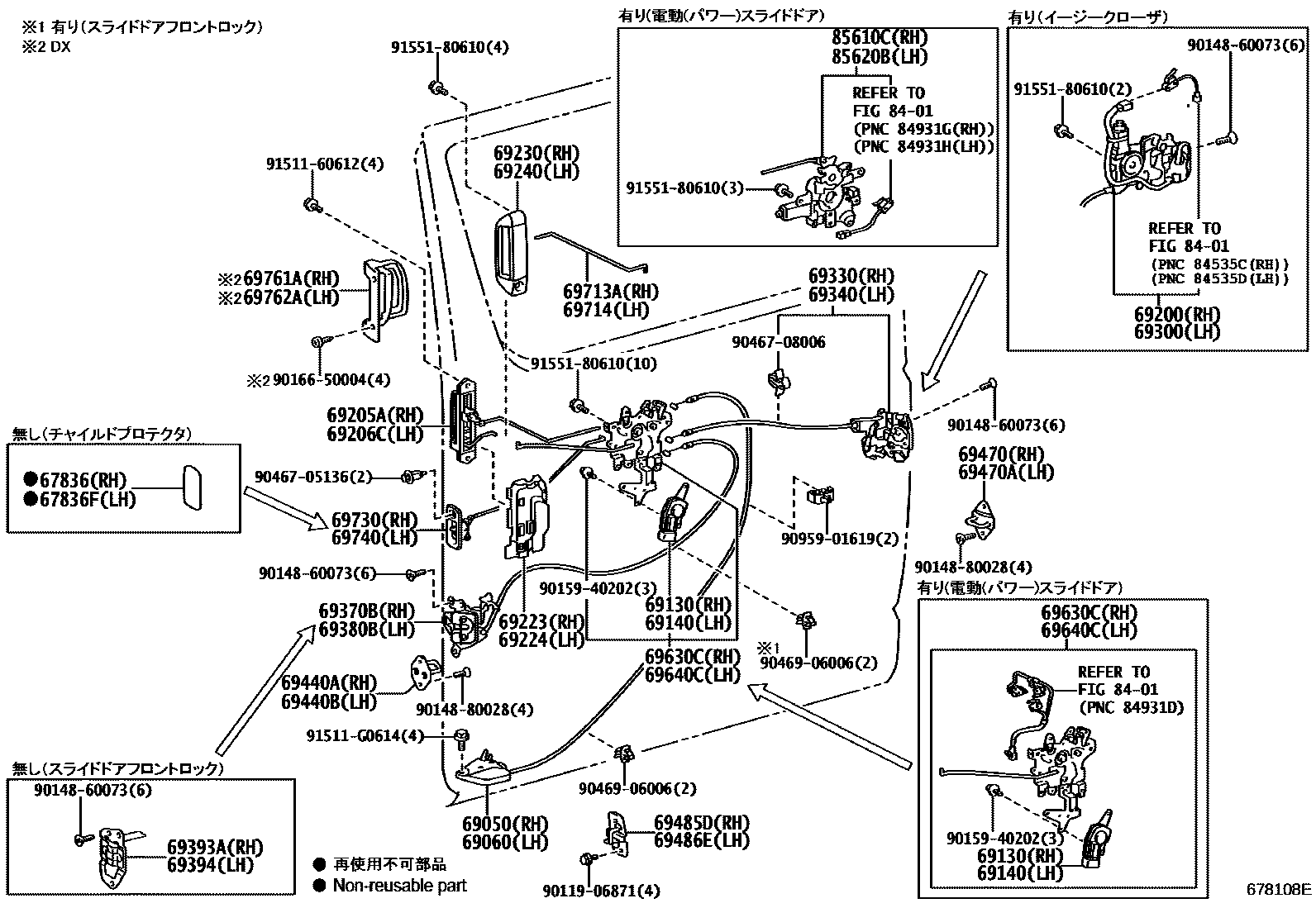

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67857-26060iTRH200..5D..03S..5F201312-202107

67836FCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67857-26060iGDH201,223..IV5; TRH200..03S..5F201312-202107

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69050-26011iTRH200..HRF..5D..4FC;GDH201,TRH200..V1..HRF..5D..6FC;GDH206,211,KDH20#,211,TRH21#..5D;GDH201,TRH200..SRF..5D..(4FC,6FC); TRH214..4FC..GL; TRH214..6FC..GL201312

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69060-26011iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-26010iKDH20#,TRH200..5D..DX201312-201409

main69130-26020iKDH20#,TRH200..5D..DX201409-201712

main69130-26060iKDH20#,211,TRH200,211,216..SGL; TRH214..GL201312-201409

main69130-26070iGDH201..SRF..5D;KDH20#,TRH200..SGL;GDH201..V1..HRF..5D;GDH206,211,KDH211,TRH21#..5D; TRH214..4FC..GL201409

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-26010iKDH20#,TRH200..03S..CBU201312-201409

main69140-26020iKDH20#,211,223,TRH200,21#,223,224,228,229..02S,05S,10S,14S; KDH20#,TRH200,221,226..IV5,IV7; KDH20#,TRH200..IV5; TRH221,226..IV6201312-201409

main69140-26030iTRH200,221,226..6FC..DX;KDH20#,TRH200..03S..(4FC,5F)..CBU201409-201712

main69140-26040iTRH200..SP..6FC;TRH200..5D..03S..6FC;TRH200..SRF..(06S,09S)..6FC;TRH200,221,226..V1..HRF..6FC201712

69200LOCK ASSY, POWER SLIDE DOOR, RH

main69200-26041iKDH20#,211,TRH200,211,216..SGL; KDH20#..5D..03S..4FC201312-201705

main69200-26051supersedes 69200-26042iTRH214,219..5D201712-202205

main69200-V3010supersedes 69200-V3020iGDH20#,211,TRH200,211,216..SGL; TRH214,219..5D202206

main69200-26042iGDH20#,211,KDH20#,211,TRH200,211,216..SGL; GDH20#,KDH20#..5D..03S..(4FC,6FC)201706-202205

main69200-26050iKDH20#,211,TRH200,211,216..SGL201501-201705

main69200-V3020iGDH20#..5D..03S; GDH206..5D..DX;GDH201,TRH200..V1..HRF..5D..6FC;GDH201,TRH200..SRF..5D..6FC..DX202401

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69207-26010-B1iTRH200..HRF..5D..4FC;GDH201,TRH200..V1..HRF..5D..6FC;GDH206,211,KDH20#,211,TRH21#..5D;GDH201,TRH200..SRF..5D..(4FC,6FC); TRH214..4FC..GL; TRH214..6FC..GL201312

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69208-26010-B1iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

DK.GRAY,TRIM1#

69223CASE, REAR DOOR OUTSIDE HANDLE, RH

main69241-26030iGDH201,TRH200..V2..HRF..6FC201312-202312

69224CASE, REAR DOOR OUTSIDE HANDLE, LH

main69242-26030iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-26070iTRH200..HRF..5D..4FC;GDH206,KDH20#..5D..DX;GDH201,TRH200..V1..HRF..5D..6FC;GDH201,TRH200..SRF..5D..(4FC,6FC)..DX201312

main69230-26080iGDH20#,211,KDH20#,211,TRH200,21#..5D..(GL,SGL); TRH214..4FC..GL; TRH214..6FC..GL201312

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-26080iTRH200..03S..4FC;GDH201..V1..HRF..5D;GDH201..SRF..5D..DX;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH206,TRH223,228..IV5;GDH20#,TRH200..SP..6FC;TRH223,228..4FC..GL..CBU;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(06S,09S)..(4FC,6FC);GDH206,KDH223,TRH224..02S,06S,09S,14S;GDH22#,KDH20#,221,TRH214,219,221,223,226,228..DX..(CBU,IV5)201312

main69240-26090iGDH221,226,TRH221,226..02S;GDH20#,211,KDH20#,211,TRH200,21#,224,229..(GC,GL,SGL)..CBU201312

69300LOCK ASSY, POWER SLIDE DOOR, LH

main69300-26130iTRH224..IV5201312-201605

main69300-26131supersedes 69300-26142iTRH214,219..5D201712-202205

main69300-26141iKDH20#,TRH200..IV5;KDH201,TRH200..V2..03S;TRH221,224,226..(02S,10S)..(CBU,IV6,IV7);KDH20#,211,223,TRH200,21#,223,228,229..(02S,05S,10S)..(GC,GL,SGL); KDH20#,TRH200..V1..SP; KDH20#..5D..03S..4FC; TRH214,219..DX201312-201705

main69300-26142iGDH20#,KDH20#..5D..03S..(4FC,6FC); TRH200..V1..SP..6FC;GDH20#,KDH20#..V1..SP; TRH214,219..4D..GL;GDH201,KDH201,TRH200..V2..03S;GDH206,221,226,KDH20#,TRH200..IV5,IV6;GDH20#,211,KDH20#,211,223,TRH200,211,216,22#..02S,05S,10S; TRH214,219..DX201706-202205

main69300-V3010iGDH20#,211,TRH200,211,216..SGL; TRH214,219..4D..GL;GDH206,221,226,TRH200,22#..HRF..(02S,03S,10S); TRH214,219..5D; TRH214,219..DX;GDH223,TRH223,228..CBU202206

main69300-V3020iTRH214,219..4D..GL;GDH201,TRH200..V2..03S;GDH206,221,226,TRH200..IV5,IV6;GDH20#,211,TRH200,211,216,22#..02S,05S,10S; TRH214,219..DX202206

69330LOCK ASSY, REAR DOOR, RH

main69330-26050iKDH20#,TRH200..5D..DX201312-201705

main69330-26051iTRH200..5D..5F201706-202107

69340LOCK ASSY, REAR DOOR, LH

main69340-26050iKDH201,TRH200..V1..SP;KDH206,TRH214,219..DX..CBU;KDH201,22#,TRH200,221,223,226,228..SG..(DX,GL)..CBU201312-201705

main69340-26051iTRH200..5F201706-202107

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-26010iTRH200..5D..5F201312-202107

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-26010iGDH201,223..IV5; TRH200..5F201312-202107

69393ACOVER, REAR DOOR LOCK, OUTER RH

main69393-26010iTRH200..5D..03S..4FC201312-201501

69394COVER, REAR DOOR LOCK, OUTER LH

main69394-26010iKDH20#..V1..SP;TRH200..V1..SP..(5F,6FC); KDH201..V2..03S;TRH200..V2..03S..6FC;TRH200..03S..4FC..CBU201312-201610

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28050iKDH20#,TRH200..4D..03S..CBU201609-201610

69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28050iGDH201,223..IV5;TRH200..(06S,09S)..5F201312-202107

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28100iTRH200..5D..5F201312-202107

69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH

main69470-28100iTRH200..5F;GDH201,223..IV5201312-202107

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-26020iTRH200..5D..5F201312-202107

69486ESTRIKER, SLIDE DOOR OPEN, LH

main69486-26020iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH

main69630-26221iKDH20#,TRH200..5D..03S201312-201408

main69630-26222iKDH20#,TRH200..5D..03S201409-201712

main69630-26231iKDH20#,TRH200..5D..06S201312-201408

main69630-26232iKDH20#,TRH200..5D..06S201409-201712

main69630-26261iGDH20#,TRH200..5D..03S201712-202004

main69630-26263iTRH200..5D..03S..5F202005-202107

main69630-26270iKDH20#,211,TRH200,211,216..SGL201312-201408

main69630-26271iTRH200..5D..06S201712-202005

main69630-26273iTRH200..5D..06S..5F202005-202107

main69630-26224iGDH201..5D..03S202005-202204

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-26351iKDH20#,TRH200..03S..CBU; KDH20#,TRH200..IV5201312-201408

main69640-26352iKDH20#,TRH200..03S..CBU; KDH20#,TRH200..IV5201409-201712

main69640-26362iTRH214,219,224..(GC,GL)..CBU;KDH20#,223,TRH200,223,228,229..HRF..(02S,03S,10S); TRH214,219..DX; TRH224..CBU;KDH223,TRH214,219,223,228,229..02S,10S; TRH224..IV5;KDH223,TRH223,228..CBU201312-201408

main69640-26363iTRH214,219,224..4D..(GC,GL)..CBU;GDH20#,223,KDH20#,223,TRH200,223,228,229..HRF..(02S,03S,10S); TRH214,219..4FC..DX;TRH214,219,224..4D..(GC,GL)..CBU;GDH20#,223,KDH223,TRH223,228,229..HRF..(02S,03S,10S); TRH224..IV5;GDH20#,223,KDH223,TRH223,228..(03S,14S)..CBU201409-202005

main69640-26365iGDH201,223..IV5; TRH200..03S..5F202005-202107

main69640-26371iKDH20#,TRH200..IV5;KDH20#,221,TRH200,221,226..02S,06S,09S201312-201409

main69640-26372iKDH20#,TRH200..IV5;KDH20#,221,TRH200,221,226..02S,06S,09S201410-201712

main69640-26382iKDH20#,TRH200,221,226..IV5,IV7; TRH221,226..IV6; TRH224..CBU;KDH20#,211,223,TRH200,21#,223,228,229..02S,05S,10S201312-201408

main69640-26383iTRH200..IV5;TRH200,221,226..02S,06S,09S201712-202005

main69640-26385iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC202005-202312

main69640-26354iGDH201..5D..03S202005-202204

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-26020iTRH200..HRF..5D..4FC;GDH201,TRH200..V1..HRF..5D..6FC;GDH206,211,KDH20#,211,TRH21#..5D;GDH201,TRH200..SRF..5D..(4FC,6FC); TRH214..4FC..GL; TRH214..6FC..GL201312

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-26020iTRH200..5F;GDH201,223..IV5201312-202107

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69730-26020iTRH200..HRF..5D..4FC;GDH206,KDH20#..5D..(05S,06S);GDH201,TRH200..V1..HRF..5D..6FC;GDH201,211,KDH211,TRH200,21#..(SMRF,SRF)..5D..(05S,06S,10S)..(4FC,6FC); TRH214..4FC..GL; TRH214..6FC..GL201312

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69740-26020iTRH200..HRF..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH206,KDH20#,TRH224..HRF..(03S,10S);GDH201,TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,221,226,KDH20#,211,22#,TRH21#,221,223,226,228,229..02S,05S,06S,09S,10S201312

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-26010-B1iTRH200..5D..5F201312-202107

DK.GRAY,TRIM1#

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69762-26010-B1iTRH200..5F201312-202107

DK.GRAY,TRIM1#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85610CMOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH

main85610-26010iTRH214,219..5D201712

85620BMOTOR ASSY, SLIDE DOOR LOCK RELEASE

main85620-26050iGDH20#,211,KDH20#,211,TRH200,211,216..SGL; TRH214,219,224..4D..(GC,GL)..CBU;GDH206,KDH20#,223,TRH200,221,223,226,228,229..HRF..(02S,03S,10S)..(CBU,IV5,IV7); TRH214,219,224..4D..(GC,GL)..CBU;GDH206,KDH20#,223,TRH200,223,228,229..HRF..(02S,03S,10S); TRH214,219..DX;TRH221,226..4FC..IV6;GDH223,KDH223,TRH223,228..CBU; TRH224..IV5;TRH214,219..5D201312

9011906871

main90119-06871

9014860073

main90148-60073

9014880028

main90148-80028

9015940202

main90159-40202

9016650004

main90166-50004

9046705136

main90467-05136

9046708006

main90467-08006

9046906006

main90469-06006

9095901619

main90959-01619

9151160612

main91511-60612

91511G0614

main91511-G0614

9155180610

main91551-80610

49 parts on this diagram · 1 diagram in section
