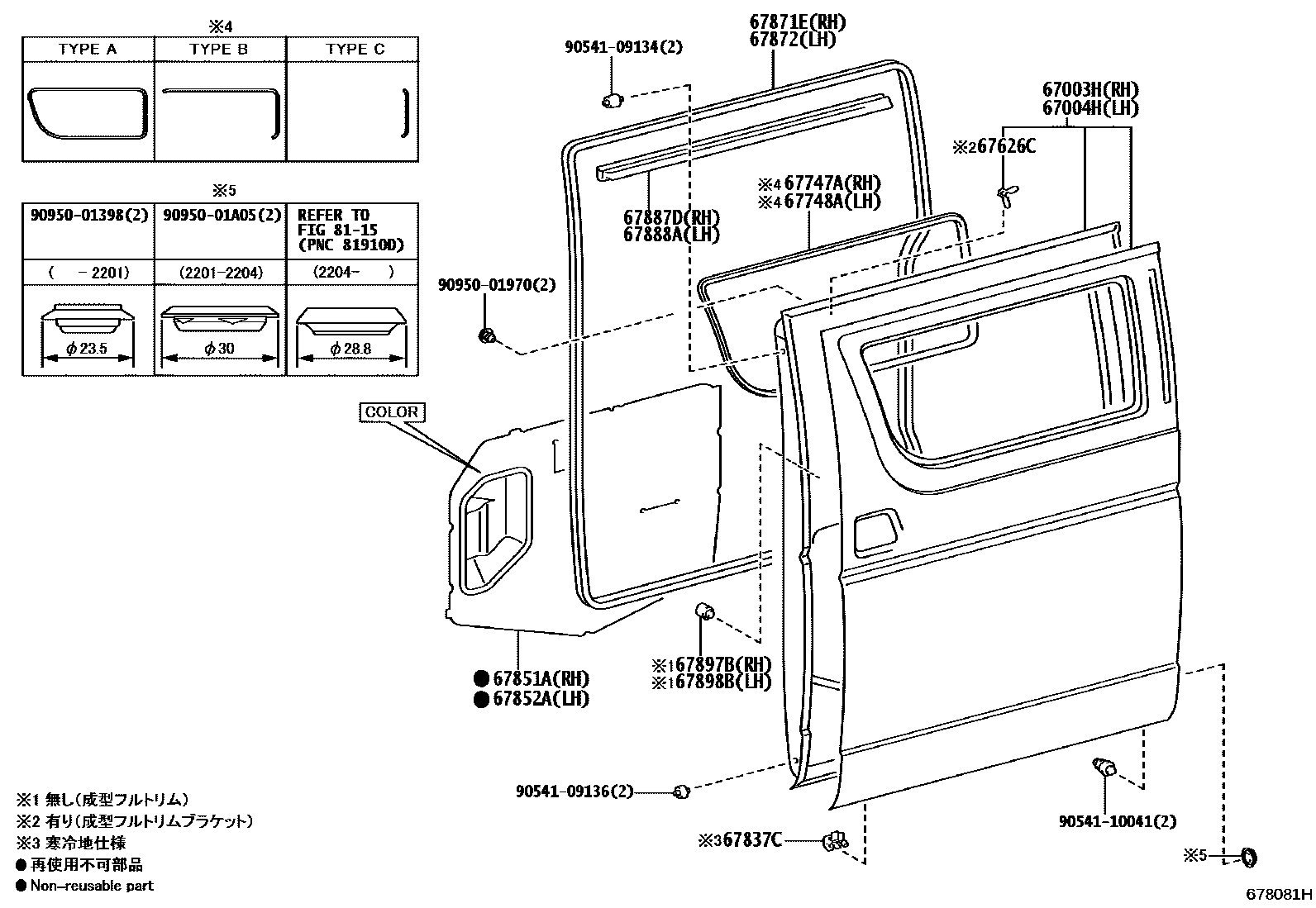

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������(���������) 0003 1������(�����)

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-26340iGDH20#,KDH20#..5D..DX;TRH200..5D..(4FC,6FC)..DX201312-202201

main67003-26350iGDH20#,211,KDH20#,211,TRH200,211,216..SGL201312-202201

main67003-26470iTRH214,219..5D201712-202201

main67003-V3020iGDH206..5D..DX;GDH201,TRH200..V1..HRF..5D..6FC;GDH201,TRH200..SRF..5D..6FC..DX202201

main67003-V3100supersedes 67003-V3030iGDH20#,211,TRH200,211,216..SGL; TRH214,219..5D202201

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-26600iGDH22#,KDH22#,TRH221,223,226,228..DX201312-202201

main67004-26610supersedes 67004-26620iTRH224..IV5201312-201605

main67004-26620iGDH223,TRH224..(GC,GL)..CBU;KDH223,TRH223,228,229..GC,GL201312-202201

main67004-26640iTRH200..SG..(4FC,6FC)..DX..CBU;GDH20#,KDH20#,TRH214,219..SG..DX..CBU201312-202201

main67004-26650supersedes 67004-26660iTRH214,219..5D201712-202201

main67004-26660iTRH214,219..4D..GL;GDH206,KDH20#,TRH200..IV5;GDH20#,211,KDH20#,211,TRH200,211,216..SGL201312-202201

main67004-26670iGDH20#,KDH20#..SP;TRH200..SP..(4FC,6FC)201312-202201

main67004-V3010iGDH206..06S,09S;GDH201..V1..HRF..5D;GDH201..SRF..5D..DX;TRH200..V1..HRF..6FC..CBU;TRH200..SRF..(06S,09S)..6FC;GDH206,TRH200..5D..03S..6FC;GDH201,TRH214,219..(SMRF,SRF)..4D..(06S,09S,10S)..DX202201

main67004-V3020iGDH20#,211,TRH200,211,216..SGL; GDH206,TRH200..IV5;TRH214,219..4D..GL; TRH214,219..5D; TRH214,219..DX202201

main67004-V3030iGDH206,TRH200..IV5;TRH214,219..4D..GL;GDH20#,211,TRH200,211,216..SGL202201

main67004-V3040iGDH20#,TRH200..SP..6FC202201

main67004-V3080iGDH22#,TRH221,223,226,228..DX202201

main67004-V3100iGDH223..GL..CBU;TRH223,224,228,229..GC,GL202201

main67004-26720iTRH214,219..DX201312-202201

main67004-26730iGDH223,KDH223,TRH223,228..DX201312-202201

main67004-V3090iGDH221,226,TRH22#..02S,10S; GDH223,TRH223,228..CBU202201

main67004-V3130iTRH214,219..DX202201

main67004-V3140iGDH223,TRH223,228..DX202201

67626CBRACKET, REAR DOOR TRIM, NO.2

main67626-26010iGDH20#,211,KDH20#,211,TRH200,21#..5D..(GL,SGL); TRH214,219..4D..GL;GDH206,KDH20#,TRH200..IV5; TRH214,219..DX; TRH214..4FC..GL; TRH214..6FC..GL201312

main62626-26010×2iTRH214..GL201702-201712

67747AMOULDING, REAR DOOR TRIM, NO.2 RH

main67745-26010iKDH20#,TRH200..5D..DX201312-201406

main67745-26011iGDH201,TRH200..V2..HRF..6FC201407-202312

main67745-26020iGDH20#,211,KDH20#,211,TRH200,21#..5D..(GL,SGL); TRH214..4FC..GL; TRH214..6FC..GL201312

67748AMOULDING, REAR DOOR TRIM, NO.2 LH

main67745-26030iGDH223..IV5201312-202107

main67746-26010iKDH20#,22#,TRH200,214,219,221,223,226,228..SG..DX..(CBU,IV6,IV7)201312-201406

main67746-26011iGDH201..SRF..5D..DX;GDH201..V1..HRF..5D;KDH20#..SG..DX..CBU;TRH200..HRF..4FC..CBU;TRH200..V1..HRF..6FC..CBU;GDH201..SRF..4D..(06S,09S);TRH200..4D..SG..03S..4FC..CBU;TRH200..SRF..(06S,09S)..(4FC,6FC);GDH206,TRH200..5D..03S..(4FC,6FC);GDH206,22#,KDH22#,TRH214,219,221,223,226,228..(02S,05S,06S,09S,10S,14S)..DX201407

main67746-26020iGDH206,KDH20#,TRH200..IV5;GDH20#,211,KDH20#,211,TRH200,21#..GL,SGL; TRH214,219..DX201312

67837CSEAL, REAR DOOR DUST PROOF

main67837-26030×4iTRH219..5D201712

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-26030iTRH200..HRF..5D..4FC;GDH206,KDH20#..5D..DX;GDH201,TRH200..V1..HRF..5D..6FC;GDH201,TRH200..SRF..5D..(4FC,6FC)..DX201312

main67851-26040iGDH20#,211,KDH20#,211,TRH200,21#..5D..(GL,SGL); TRH214..4FC..GL; TRH214..6FC..GL201312

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67851-26030iGDH201..SRF..4D..(06S,09S);GDH20#,TRH200..SP..(4FC,6FC);TRH200..4D..SG..03S..4FC..CBU;KDH20#,TRH221,226..4D..(CBU,IV6,IV7);GDH206,22#,KDH22#,TRH200,214,219,223,228..4D..(05S,06S,09S,10S,14S)..(4FC,6FC)..DX; GDH201..SRF..5D..DX;GDH201..V1..HRF..5D;TRH200..03S..4FC..CBU;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;TRH200..V1..HRF..6FC..CBU;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(06S,09S)..(4FC,6FC);KDH20#,TRH221,226..DX..(CBU,IV6,IV7);GDH206,22#,KDH22#,TRH214,219,223,228..(05S,06S,09S,10S,14S)..DX201312

main67852-26010iGDH201,223..IV5201312-202107

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67871-26010iTRH200..5D..5F201312-202107

67872WEATHERSTRIP, REAR DOOR, LH

main67872-26020iTRH200..5F;GDH201..IV5201312-202107

main67872-26030iGDH223..IV5201312-202107

67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-26020iTRH200..HRF..5D..4FC;GDH201,TRH200..V1..HRF..5D..6FC;GDH206,211,KDH20#,211,TRH21#..5D;GDH201,TRH200..SRF..5D..(4FC,6FC); TRH214..4FC..GL; TRH214..6FC..GL201312

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-26020iTRH200..5F;GDH201,223..IV5201312-202107

67897BCUSHION, REAR DOOR, RH

main90541-09128iTRH200..5D..5F201312-202107

67898BCUSHION, REAR DOOR, LH

main90541-09128iTRH200..5F201312-202107

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9054109134

main90541-09134

9054109136

main90541-09136

9054110041

main90541-10041

9095001398

main90950-01398

9095001970

main90950-01970

9095001A05

main90950-01A05

21 parts on this diagram · 3 diagrams in section
