RADIATOR GRILLE

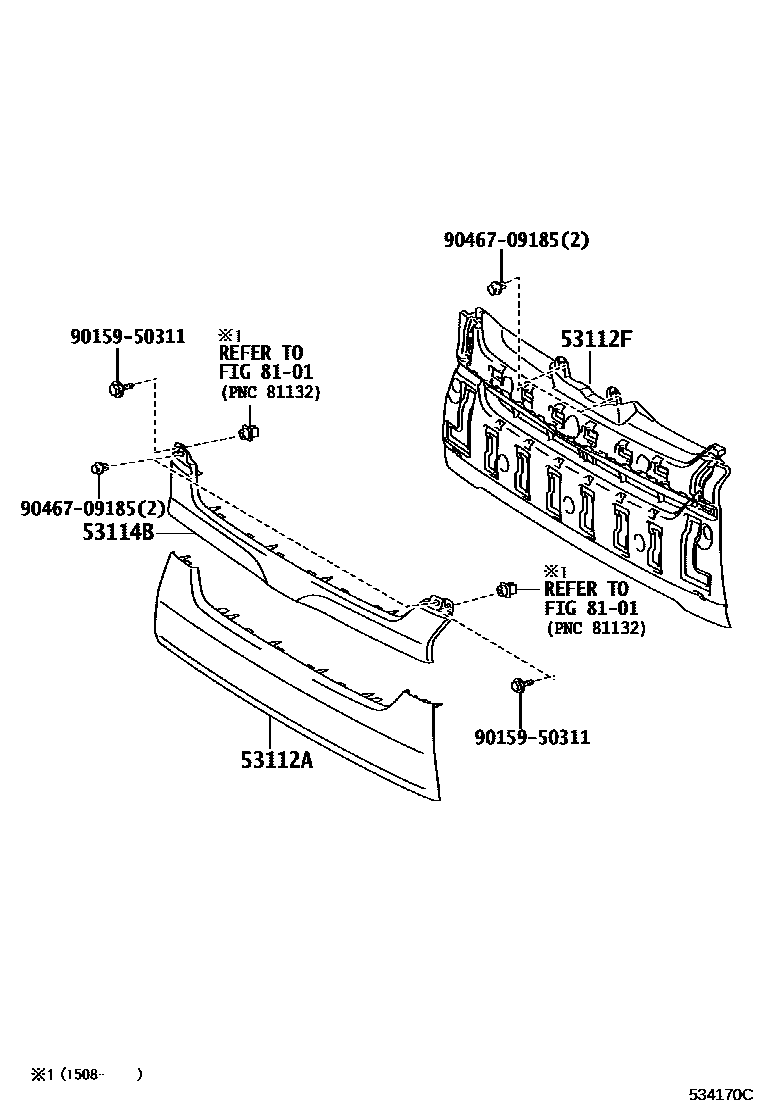

Parts diagram

53112AGRILLE, RADIATOR, LOWER

main53111-26510201312-202005

main53111-26530201312-202005

main53111-26550201312-202005

main53111-26570201312-202005

main53111-26770202005-202312

main53111-26790202005

main53111-26830202005-202107

main53111-26850202005

53112FGRILLE, RADIATOR, INSIDE

main53112-26090201312-202005

main53112-26100201312-202005

main53112-26110201712-202005

main53112-26140201712-202005

main53112-26150202005-202507

main53112-26160202005-202507

53114BGRILLE, RADIATOR, UPPER

main53111-26500201312-202005

main53111-26520201312-201712

main53111-26540201312-202005

main53111-26560201312-202005

main53111-26600201712-202005

main53111-26610201712-202005

main53111-26710201712-202005

main53111-26720201712-202005

main53111-26760202005-202312

main53111-26780202005

main53111-26820202005-202107

main53111-26840202005

8101HEADLAMP

→ Go to FIG 81-01

9015950311

main90159-50311

9046709185

main90467-09185

6 parts on this diagram · 6 diagrams in section
