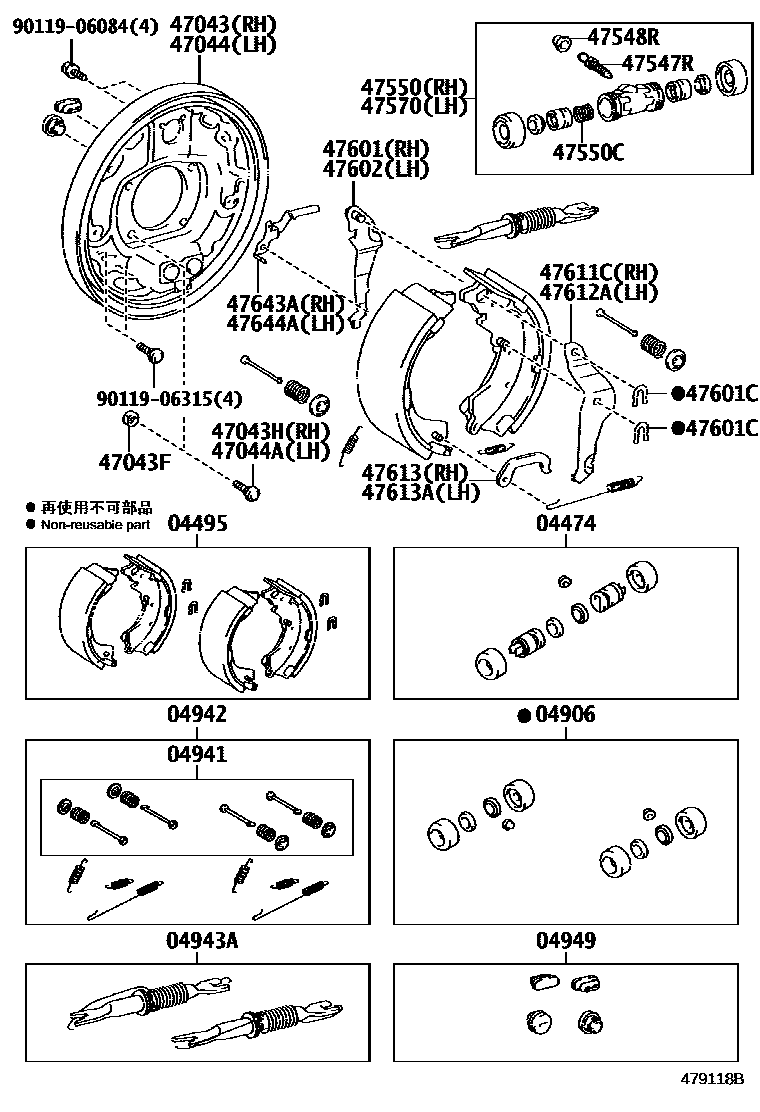

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-26070×2iTRH200..5F;GDH201,223..IV5201312-202107

04495SHOE KIT, REAR BRAKE

main04495-26240iTRH200..5F;GDH201,223..IV5201312-202107

04906CUP KIT, REAR WHEEL CYLINDER

main04906-26080iTRH200..5F;GDH201,223..IV5201312-202107

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-26010iTRH200..5F;GDH201,223..IV5201312-202107

04942SPRING KIT, REAR BRAKE

main04942-26010iTRH200..5F;GDH201,223..IV5201312-202107

04943ASTRUT KIT, REAR BRAKE

main04943-08030iTRH200..5F;GDH201,223..IV5201312-202107

04949PLUG KIT, REAR BRAKE

main04949-13010iTRH200..5F;GDH201,223..IV5201312-202107

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26530iTRH200..5F;GDH201,223..IV5201312-202107

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10088×8iTRH200..5F;GDH201,223..IV5201312-202107

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90114-10002×4iTRH200..5F;GDH201,223..IV5201312-202107

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26530iTRH200..5F;GDH201,223..IV5201312-202107

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90114-10002×4iTRH200..5F;GDH201,223..IV5201312-202107

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iTRH200..5F;GDH201,223..IV5201312-202107

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iTRH200..5F;GDH201,223..IV5201312-202107

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26140iTRH200..5F;GDH201,223..IV5201312-202107

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60011×2iTRH200..5F;GDH201,223..IV5201312-202107

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26140iTRH200..5F;GDH201,223..IV5201312-202107

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-26530iTRH200..5F;GDH201,223..IV5201312-202107

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iTRH200..5F;GDH201,223..IV5201312-202107

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-26530iTRH200..5F;GDH201,223..IV5201312-202107

47611CLEVER, PARKING BRAKE SHOE, RH

main47681-26530iTRH200..5F;GDH201,223..IV5201312-202107

47612ALEVER, PARKING BRAKE SHOE, LH

main47682-26530iTRH200..5F;GDH201,223..IV5201312-202107

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47683-26530iTRH200..5F;GDH201,223..IV5201312-202107

47613ASTRUT, PARKING BRAKE SHOE, NO.2(FOR REAR BRAKE)

main47684-26530iTRH200..5F;GDH201,223..IV5201312-202107

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-45010iTRH200..5F;GDH201,223..IV5201312-202107

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-45010iTRH200..5F;GDH201,223..IV5201312-202107

9011906084

main90119-06084

9011906315

main90119-06315

28 parts on this diagram · 1 diagram in section
