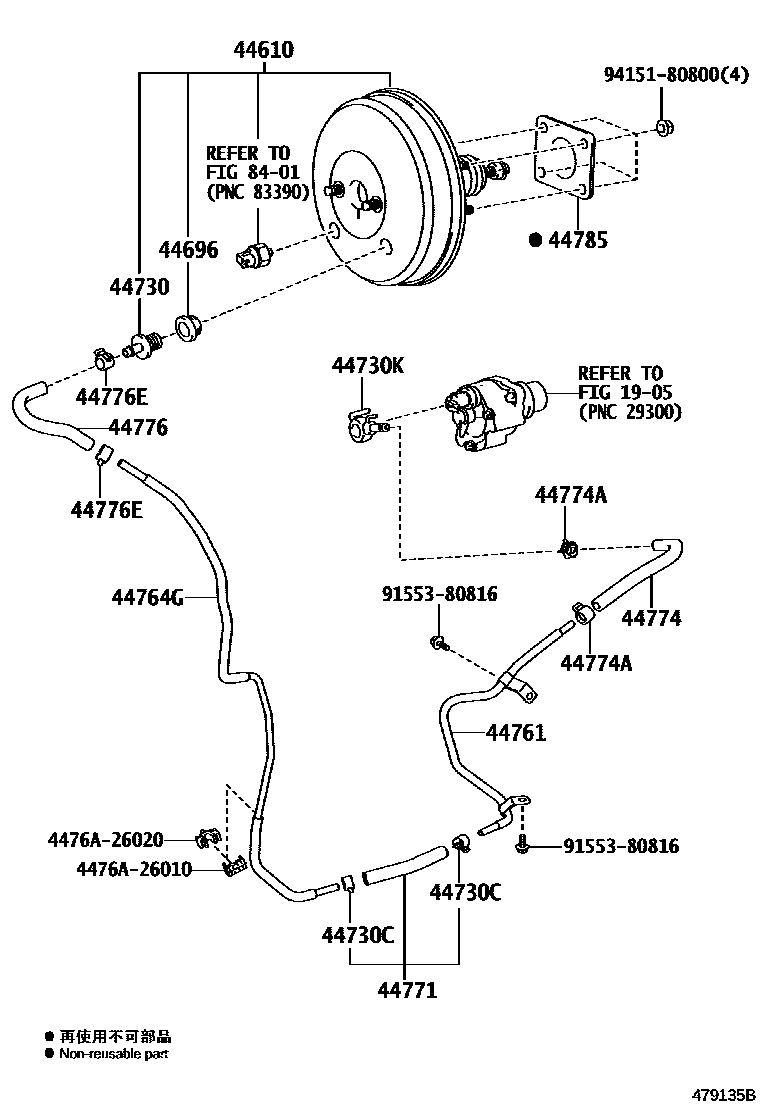

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-26661iTRH200,21#,22#201312-201501

main44610-26701iKDH20#,211,22#201312-201501

main44610-26780iTRH200..V2..03S;TRH221,224,226..02S201501-202005

main44610-26790iTRH200..V1..SP..6FC;TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC;TRH200,211,216,221,226..V1..(HRF,SMRF)..6FC..(CBU,IV5)201606-202312

main44610-26820iKDH223201501-202005

main44610-26830iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU201606-202312

44696GROMMET, CHECK VALVE

main90480-24015iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU201501-202312

main90480-24015iKDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC201312-202312

main90480-24439iGDH201,223..IV5201501-202312

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iTRH200..5F;GDH201,223..IV5201312-202312

44730CCLIP(FOR VACUUM HOSE)

main96133-41500iTRH200..5F;GDH201,223..IV5201312-202312

44730KUNION, VACUUM HOSE(FOR VACUUM PUMP)

main90405-09175iKDH20#,211,22#201312-201711

main90405-09195iGDH201,223..IV5201712-202312

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-26410iTRH200,21#,22#201312-201501

main44761-26411iTRH200..V2..HRF..6FC;TRH200..4D..SG..03S..6FC..CBU201501-202312

main44761-26420iKDH20#,211,22#201312-201711

main44761-26450iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU201712-202312

44764GTUBE, CONNECTOR TO BRAKE BOOSTER

main44764-26151iKDH20#,TRH200201312-201701

main44764-26161iKDH211,22#,TRH21#,22#201312

main44764-26180iKDH20#;GDH206..IV5;GDH201..SRF..5D;GDH206..05S,06S,09S;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D.201701-202312

main44764-26190iGDH223..IV5201712-202107

44771HOSE, VACUUM TUBE CONNECTOR

main44770-26010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

44774HOSE, UNION TO CONNECTOR TUBE

main44774-26380iTRH200201312-201501

main44774-26381iTRH200..V2..HRF..6FC;TRH200..4D..SG..03S..6FC..CBU201501-202312

main44774-26391iKDH20#201312-201711

main44774-26410iTRH21#,22#201312-201501

main44774-26411iTRH21#,22#201501

main44774-26421iKDH211,22#201312-201711

main44774-26440iGDH201,223..IV5201712-202312

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iGDH20#..SP;GDH206..IV5;GDH206..5D..03S;GDH201..SRF..5D;GDH201..V1..HRF..5D;GDH201..SRF..4D..(06S,09S);GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201312-202312

44776HOSE, BRAKE BOOSTER

main44776-26040iTRH200..5F;GDH201,223..IV5201312-202312

44776ECLIP(FOR BRAKE BOOSTER HOSE)

main96133-41500iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

44785GASKET, BRAKE BOOSTER

main44785-12040iGDH206..IV5;GDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..201501-202312

main44785-32010iKDH20#,211,22#,TRH200,21#,22#201312-201501

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4476A26010

main4476A-26010

4476A26020

main4476A-26020

9155380816

main91553-80816

9415180800

main94151-80800

19 parts on this diagram · 5 diagrams in section
