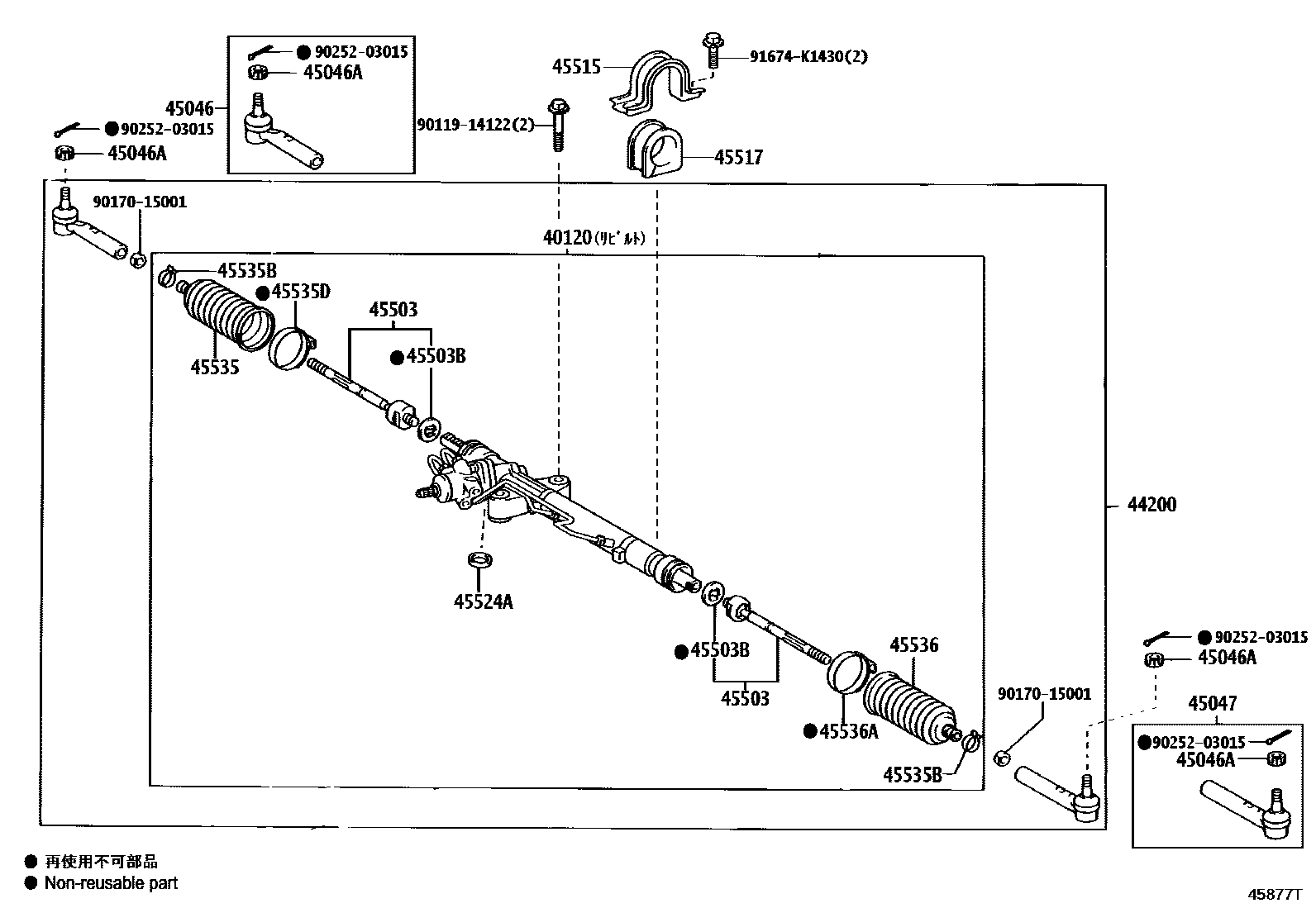

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-26410iKDH201,TRH200201312-201601

main40120-26411iGDH201,KDH201,TRH200201601-202001

main40120-26412iGDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;GDH201,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..SRF..(05S,06S,09S)..6FC202001

main40120-26540iKDH211,22#,TRH211,214,221,223,224201312-201601

main40120-26541iGDH211,221,223,KDH211,22#,TRH211,214,221,223,224201601-202001

main40120-26542iGDH223..IV5202001-202107

main40120-26560iKDH206201312-201601

main40120-26561iGDH206,KDH206201601-202001

main40120-26562iGDH206..4D..SG..03S..CBU202001-202312

main40120-26570iTRH216,219,226,228,229201312-201601

main40120-26571iGDH226,TRH216,219,226,228,229201601-202001

main40120-26572iGDH226,TRH216,219,226,228,229202001

44200LINK ASSY, POWER STEERING

main44200-26410iKDH201,TRH200201312-201412

main44200-26411iGDH201,KDH201,TRH200201501-201912

main44200-26412iGDH201..CBU;TRH200..6FC202001-202204

main44200-26540iKDH211,22#,TRH211,214,221,223,224201312-201412

main44200-26541iGDH211,221,223,KDH211,22#,TRH211,214,221,223,224201501-201912

main44200-26542iTRH223;GDH211,221,223,TRH211,214,221,224..CBU,IV6,IV7202001-202204

main44200-26560iKDH206201312-201412

main44200-26561iGDH206,KDH206201501-201912

main44200-26562iGDH206202001-202204

main44200-26570iTRH216,219,226,228,229201312-201412

main44200-26571iGDH226,TRH216,219,226,228,229201501-201912

main44200-26572iGDH226,TRH216,219,226,228,229202001-202204

main44200-V3010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU202205-202312

main44200-V3030iTRH223;GDH211,221,223,TRH211,214,221,224..CBU,IV6,IV7202205

main44200-V3050iGDH206..4D..SG..03S..CBU202205-202312

main44200-V3060iGDH226,TRH216,219,226,228,229202205

45046END SUB-ASSY, TIE ROD, RH

main45046-29456iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14009×2iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

45047END SUB-ASSY, TIE ROD, LH

main45046-29456iTRH200..5F;GDH201,223..IV5201312-202107

45503END SUB-ASSY, STEERING RACK

main45503-29836×2iGDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;KDH201,223,TRH223,224;GDH201,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7201312

main45503-29846×2iGDH206..4D..SG..03S..CBU201312-202312

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14013×2iTRH200..5F;GDH201,223..IV5201312-202107

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-26110iTRH200..5F;GDH201,223..IV5201312-202107

main45515-26120iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-26060iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36002iTRH200..5F;GDH201,223..IV5201312-202107

45535BOOT, STEERING RACK, NO.1

main45535-26060iTRH200..5F;GDH201,223..IV5201312-202107

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iTRH200..5F;GDH201,223..IV5201312-202107

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iTRH200..5F;GDH201,223..IV5201312-202107

45536BOOT, STEERING RACK, NO.2

main45535-26060iTRH200..5F;GDH201,223..IV5201312-202107

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iTRH200..5F;GDH201,223..IV5201312-202107

9011914122

main90119-14122

9017015001

main90170-15001

9025203015

main90252-03015

91674K1430

main91674-K1430

19 parts on this diagram · 3 diagrams in section
