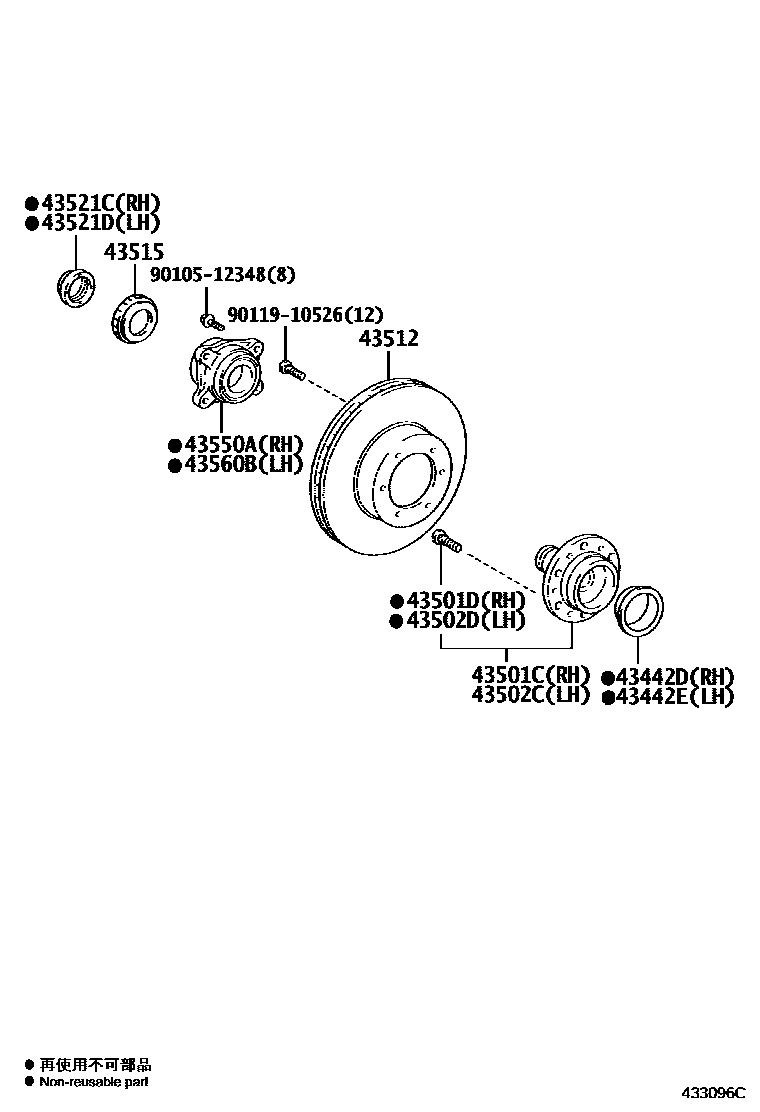

FRONT AXLE HUB
43442DCAP, KNUCKLE GREASE RETAINER, RH
main43442-26080iGDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;KDH201,223,TRH223,224;GDH201,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7201312
43442ECAP, KNUCKLE GREASE RETAINER, LH
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-26120iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02047×6iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-26110iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312
main43502-26120iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02047×6iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312
43512DISC, FRONT
43515ROTOR, SKID CONTROL, FRONT
43521CNUT, FRONT WHEEL ADJUSTING, RH
43521DNUT, FRONT WHEEL ADJUSTING, LH
43550ABEARING (FOR FRONT AXLE HUB RH)
main43560-V3010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202207-202312
43560BBEARING (FOR FRONT AXLE HUB LH)
main43560-V3010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202207-202312
9010512348
main90105-12348
9011910526
main90119-10526
14 parts on this diagram · 2 diagrams in section
