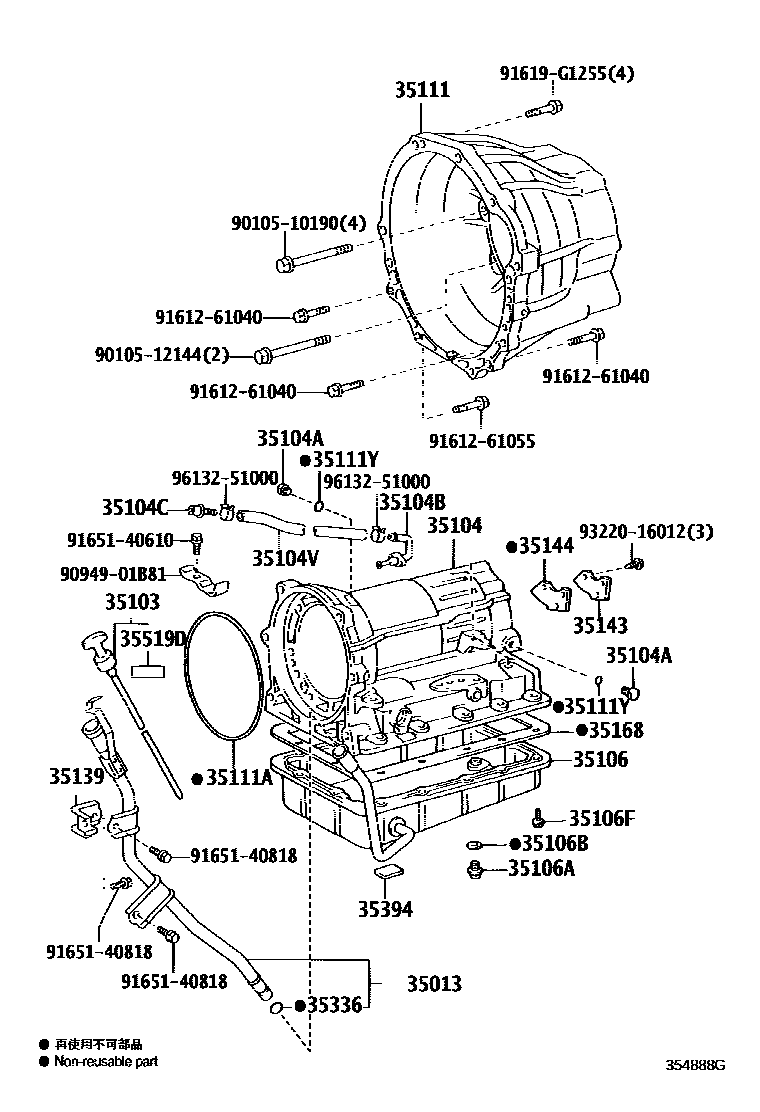

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A45DE 0002 1A343E,A343F 0003 1AC60E,AC60F 0004 1AC60E,AC60F 0005 1A340E,A340F

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-26360iTRH200..4FC201312-201501

main35013-26370iTRH21#,22#201312-201501

main35013-26390iKDH20#,211,22#..4FC201312-201607

main35013-26391iKDH20#,211,22#..4FC201608-201711

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-26320iTRH200..4FC201312-201501

main35103-26330iTRH211,214,221,223,224201312-201501

main35103-26340iTRH216,219,226,228,229201312-201501

main35103-26380iKDH201,211,22#..4FC201312-201711

main35103-26390iKDH206..4FC201312-201711

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22060iTRH200..4FC201312-201501

main35104-26071iTRH21#,22#201312-201501

main35104-35022iKDH20#,211,22#..4FC201312-201711

main35104-71020iGDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC;GDH206,TRH223,224,228..HRF..(02S,03S,10S,14S);GDH206,211,22#,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201501

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iKDH20#,211,22#,TRH200,21#,22#..4FC201312-201711

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iTRH200..4FC201312-201501

main90930-03168iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main90930-03211iGDH201,223..IV5201501-202107

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03168iTRH200..4FC201312-201501

main90930-03220iGDH201,223..IV5201501-202107

35104VHOSE (FOR BREATHER PLUG)

main90445-10020iKDH20#,211,22#..4FC201312-201711

main90445-11118iTRH21#,22#201312-201501

main90445-11145iTRH200..4FC201312-201501

main90447-11081iGDH201,223..IV5201712-202107

main90447-11082iTRH200..V2..HRF..6FC;TRH200..4D..SG..03S..6FC..CBU201501-202312

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-25050iTRH200..4FC201312-201501

main35106-26090iTRH21#,22#201312-201501

main35106-26100iKDH20#,211,22#..4FC201312-201711

main35107-26010iGDH201,223..IV5201501-202107

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;KDH20#,223,TRH223,224,228..4FC,6FC;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);GDH206,211,22#,KDH211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201312

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGDH201,223..IV5201501-202107

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×14iTRH200..4FC201312-201501

main90119-06513×19iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main90119-06A02×10iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201501-202312

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-26040iKDH20#,211,22#..4FC201312-201711

main35111-26070iTRH200..4FC201312-201501

main35111-26080iGDH201,223..IV5201712-202107

main35111-71010iTRH21#,22#201312-201501

main35111-71040iTRH200..SP..6FC;TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC;TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC201501

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iTRH200..4FC201312-201501

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iKDH20#,211,22#,TRH200,21#,22#..4FC201312-201711

35139BRACKET, OIL FILLER TUBE

main35139-26020iTRH200,21#,22#..4FC201312-201501

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iTRH200..4FC201312-201501

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-28010iTRH200..4FC201312-201501

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iTRH200..4FC201312-201501

main35168-26010iTRH200..V2..HRF..6FC;TRH200..4D..SG..03S..6FC..CBU201712-202312

main35168-71010iGDH20#..SP;GDH201..SRF..5D;GDH206..5D..03S;GDH201..V1..HRF..5D;GDH201..SRF..4D..(06S,09S);GDH206,TRH223,224..HRF..(02S,03S,10S,14S);GDH206,211,22#,TRH211,214,221..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7)201501

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iKDH20#,211,22#,TRH200,21#,22#..4FC201312-201711

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iTRH200..4FC201312-201501

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iKDH20#,211,22#,TRH200,21#,22#..4FC201312-201711

9010510190

main90105-10190

9010512144

main90105-12144

9094901B81

main90949-01B81

9161261040

main91612-61040

9161261055

main91612-61055

91619G1255

main91619-G1255

9165140610

main91651-40610

9165140818

main91651-40818

9322016012

main93220-16012

9613251000

main96132-51000

31 parts on this diagram · 5 diagrams in section
