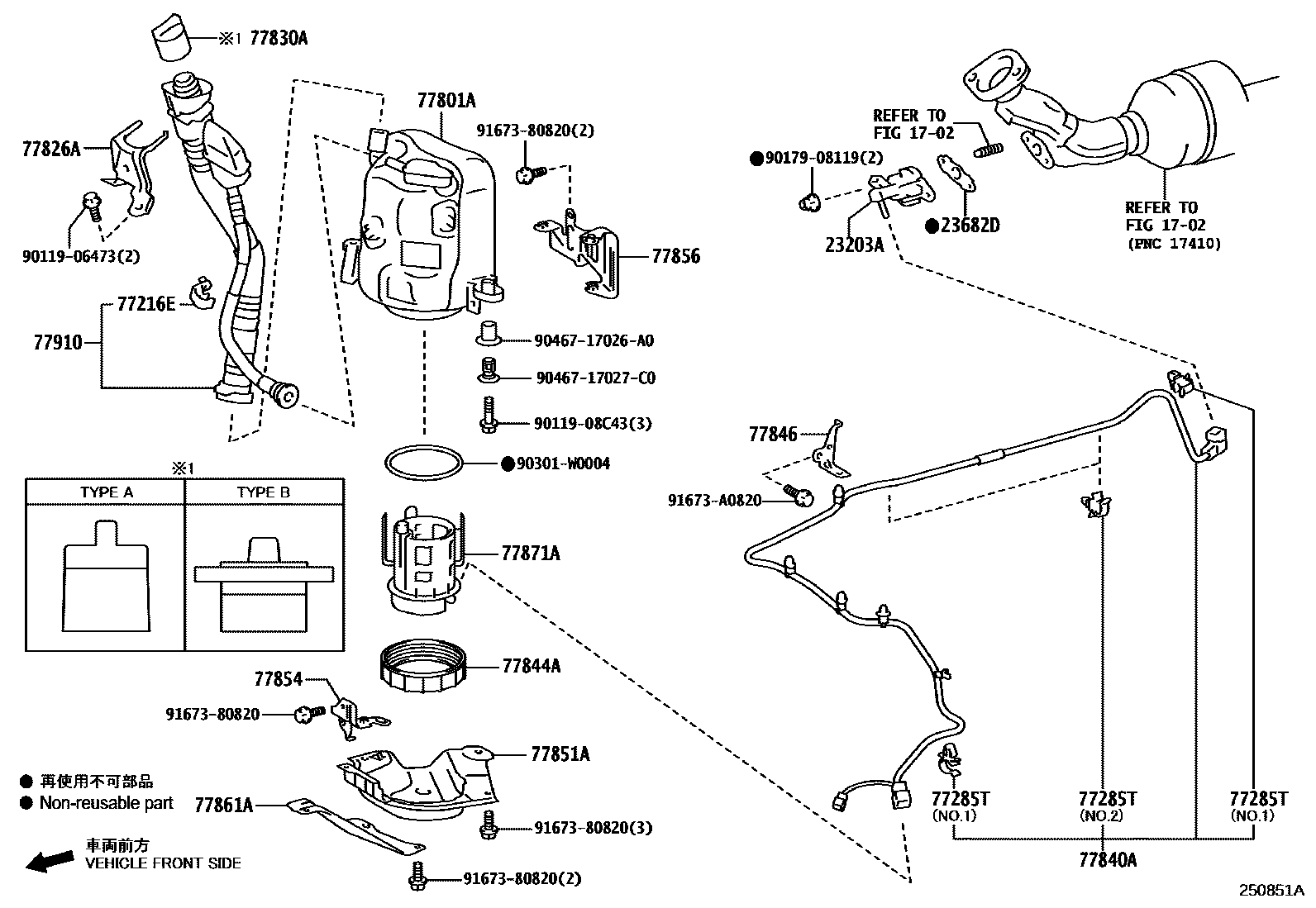

UREA TANK & TUBE

0001 1 0003 1

1702EXHAUST PIPE

→ Go to FIG 17-02

23203AINJECTOR SET, UREA

main23203-11021i1GDFTV..GDH201,223..IV5201712-202107

23682DGASKET, NOZZLE HOLDER

main23682-11010i1GDFTV..GDH201,223..IV5201712-202107

77216ESUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-26080iGDH20#..SP;GDH206..IV5;GDH206..5D..03S;GDH201..SRF..5D;GDH201..V1..HRF..5D;GDH201..SRF..4D..(06S,09S);GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

77285TCLAMP, UREA TUBE, NO.1

main77285-26140×3iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU202204-202312

main77285-26150×2iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU201712-202312

77801ATANK SUB-ASSY, UREA

main77801-26030iGDH206;GDH201,211,22#..CBU,IV6201712-202204

main77801-V3010iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU202204-202312

77826ASUPPORT, UREA TANK FILLER PIPE, NO.1

main77916-26010iGDH201,223..IV5201712-202107

77830ACAP ASSY, UREA TANK

main77830-26010iGDH20#..SP;GDH206..IV5;GDH206..5D..03S;GDH201..SRF..5D;GDH201..V1..HRF..5D;GDH201..SRF..4D..(06S,09S);GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)202005

main77830-60010iGDH20#,211,22#201712-202005

77840ATUBE ASSY, UREA W/HEATER

main77840-26020iGDH206;GDH201..CBU201712-202109

main77840-26030iGDH211,22#..CBU,IV6201712-202109

main77840-V3010iGDH206;GDH201..CBU202109-202204

main77840-V3020iGDH211,22#..CBU,IV6202109-202204

main77840-V3030iGDH206;GDH201..CBU202204-202206

main77840-V3031iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU202207-202312

main77840-V3040iGDH211,22#..CBU,IV6202204-202206

main77840-V3041iGDH211,22#..CBU,IV6202207

77844ARETAINER, UREA PUMP GAGE

main77844-60010iGDH206;GDH201,211,22#..CBU,IV6201712-202204

77846BRACKET, UREA TUBE, NO.1

main77846-26010iGDH201,223..IV5201712-202107

77851APROTECTOR, UREA TANK

main77851-26020iGDH20#201712-201803

main77851-26030iGDH223..IV5201712-202107

main77851-V3020iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU202204-202312

main77851-V3030iGDH211,22#..CBU,IV6202204

77854BRACKET, UREA TANK PROTECTOR, FRONT NO.1

main77854-26010iGDH20#..SP;GDH206..IV5;GDH206..5D..03S;GDH201..SRF..5D;GDH201..V1..HRF..5D;GDH201..SRF..4D..(06S,09S);GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

77856BRACKET, UREA TANK PROTECTOR, REAR NO.1

main77856-26010iGDH201,223..IV5201712-202107

main77856-V3010iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU202204-202312

77861ABRACKET, UREA TANK, NO.1

main77861-26010iGDH201..IV5201804-202107

main77861-26020iGDH211,22#..CBU,IV6201712-202204

77871APUMP, UREA

main77870-0K011iGDH20#..SP;GDH206..IV5;GDH206..5D..03S;GDH201..SRF..5D;GDH201..V1..HRF..5D;GDH201..SRF..4D..(06S,09S);GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)202401

main77870-60010iGDH206;GDH201,211,22#..CBU,IV6202204-202312

main77871-26010iGDH201,223..IV5201712-202107

77910PIPE ASSY, UREA TANK FILLER

main77910-26020iGDH20#,211,22#201712-202005

main77910-26021iGDH201,223..IV5202005-202107

main77910-V3010iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU202204-202312

9011906473

main90119-06473

9011908C43

main90119-08C43

9017908119

main90179-08119

90301W0004

main90301-W0004

9046717026A0

main90467-17026A0

9046717027C0

main90467-17027C0

9167380820

main91673-80820

91673A0820

main91673-A0820

25 parts on this diagram · 2 diagrams in section
