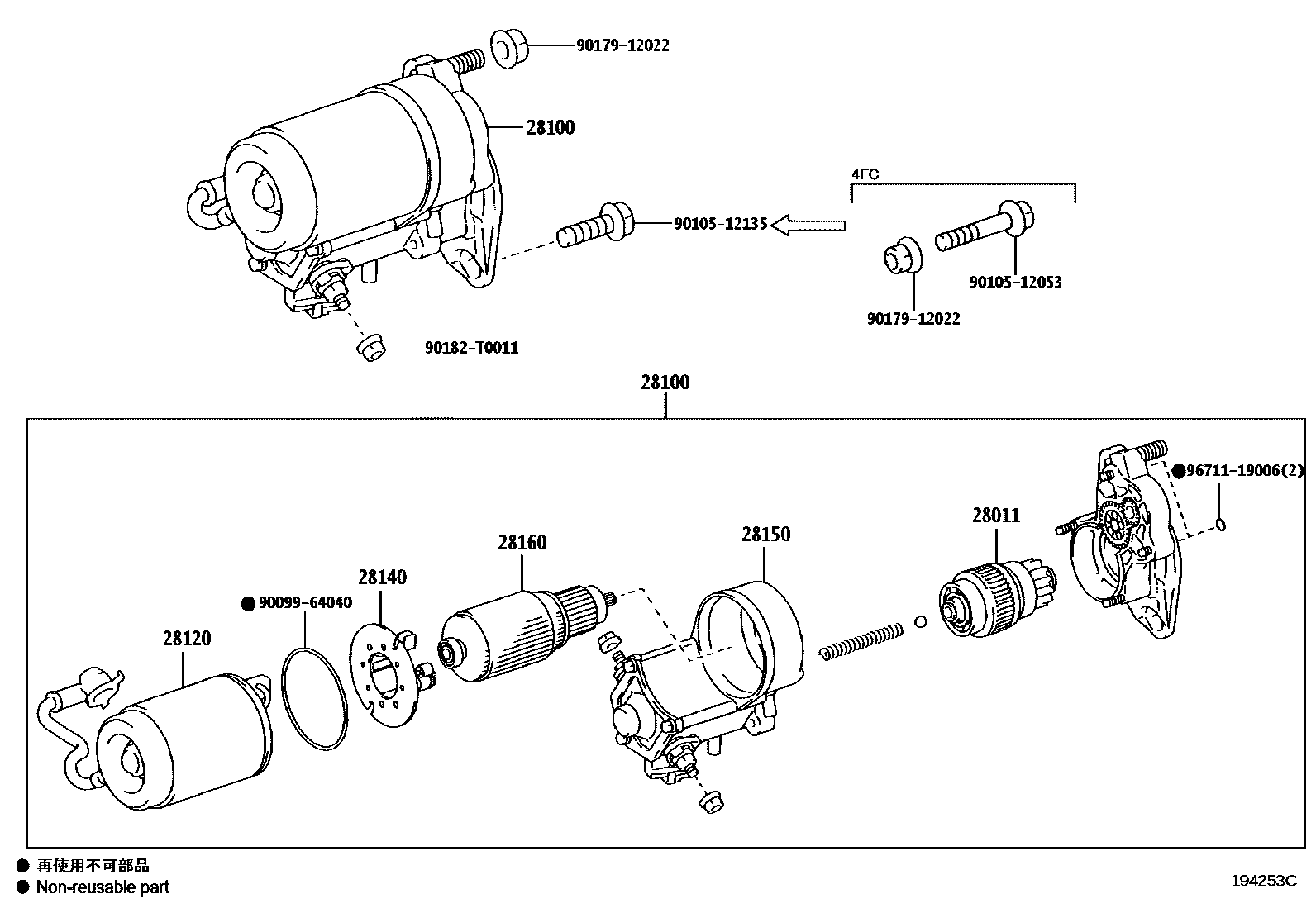

STARTER

0001 112V 2.2KW 0002 112V 2.7KW 0004 112V 1.0KW 0005 112V 1.6KW 0006 112V 1.6KW 0008 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-30050i1GDFTV..GDH201,223..IV5201712-202107

main28011-67030i1KDFTV..KDH20#,211,22#201312-201711

28100STARTER ASSY

main28100-11190i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main28100-30051i1GDFTV..GDH201,223..IV5201712-202107

main28100-67051i1KDFTV..KDH20#,211,22#201312-201407

main28100-67052i1KDFTV..KDH20#,211,22#201408-201711

main28100-75151i1TRFE..TRH200..5F201312-202107

main28100-75191i1TRFE..TRH200..CBU; 2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)201312-201501

main28100-75210i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC; 2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)201501

main28100-30081i1KDFTV..KDH206..5D..03S..4FC201406

28120YOKE ASSY, STARTER

main28120-0L180i1GDFTV..GDH20#..SP;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

main28120-28060i1TRFE..TRH200..CBU; 2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)201312-201501

main28120-40130i1TRFE..TRH200..5F201312-202107

main28120-64040i1KDFTV..KDH20#,211,22#201312-201711

main28120-67020i1GDFTV..GDH201,223..IV5201712-202107

main28120-75210i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC; 2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)201501

28140HOLDER ASSY, STARTER BRUSH

main28140-0L180i1GDFTV..GDH20#..SP;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

main28140-37050i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC; 2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)201501

main28140-64040i1KDFTV..KDH20#,211,22#201312-201711

main28140-70020i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..03S..4FC..CBU;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200..V1..HRF..6FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..(4FC,6FC)201312

main28140-77090i1GDFTV..GDH201,223..IV5201712-202107

28150SWITCH ASSY, MAGNET STARTER

main28150-30050i1GDFTV..GDH201,223..IV5201712-202107

main28150-40090i1GDFTV..GDH20#..SP;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)201712

main28150-40130i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC; 2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)201501

main28150-67050i1KDFTV..KDH20#,211,22#201312-201711

main28150-75150i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201312-202312

28160ARMATURE ASSY, STARTER

main28160-21060i1TRFE..TRH200..CBU; 2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)201312-201501

main28160-37050i1TRFE..TRH200..CBU; 2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)201501-201907

main28160-37100i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main28160-54140i1GDFTV..GDH201,223..IV5201712-202107

main28160-64041i1KDFTV..KDH20#,211,22#201312-201711

main28160-70050i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..03S..4FC..CBU;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200..V1..HRF..6FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..(4FC,6FC)201312

main28160-75210supersedes 28160-70050i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC; 2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)201907

main28160-54160iKDH201..5D..03S..4FC201407

9009964040

main90099-64040

9010512053

main90105-12053

9010512135

main90105-12135

9017912022

main90179-12022

90182T0011

main90182-T0011

9671119006

main96711-19006

12 parts on this diagram · 6 diagrams in section
