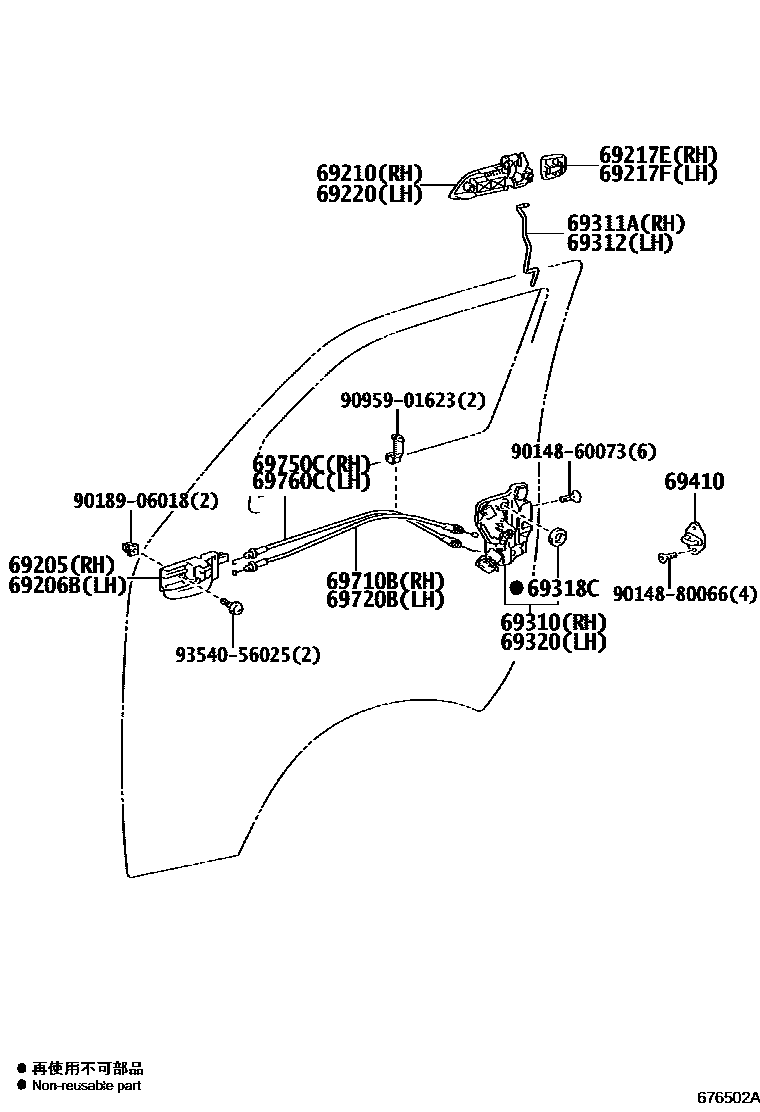

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12200-B1iKDH20#,211,22#,TRH200,21#,22#200408-201312

DK.GRAY,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12200-B1iKDH20#,211,22#,TRH200,21#,22#200408-201312

DK.GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-26040iTRH224..IV5201205-201312

main69210-26050iTRH221,226,229..02S,10S;KDH222,223,227,TRH223,228..IV5;KDH20#,211,TRH200,21#,224..(GC,GL,SGL)..CBU200408-201312

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-26010iTRH224..IV5201205-201312

main69217-26020iTRH221,226,229..02S,10S;KDH222,223,227,TRH223,228..IV5;KDH20#,211,TRH200,21#,224..(GC,GL,SGL)..CBU200408-201312

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-26010iTRH224..IV5201205-201312

main69218-26020iTRH224..IV5200408-201205

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-26040iTRH224..IV5201205-201312

main69220-26050iTRH224..IV5200408-201205

69310LOCK ASSY, FRONT DOOR, RH

main69030-26140iKDH20#,211,22#,TRH200,21#,22#200610-201312

main69030-33241iKDH20#,22#,TRH200,21#,22#200408-200610

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

69320LOCK ASSY, FRONT DOOR, LH

main69040-26131iKDH20#,211,223,TRH200,21#,223,224,228,229..05S,10S,15S201205-201312

main69040-26140iTRH229..IV5;KDH201,206,TRH200..DX;KDH200,205,220,221,222,225,227,TRH221,226200610-201312

main69040-58010iKDH20#,22#,TRH200,21#,22#200408-200610

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-26050iKDH20#,211,22#,TRH200,21#,22#200408-201312

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-26050iKDH20#,211,22#,TRH200,21#,22#200408-201312

9014860073

main90148-60073

9014880066

main90148-80066

9018906018

main90189-06018

9095901623

main90959-01623

9354056025

main93540-56025

21 parts on this diagram · 1 diagram in section
