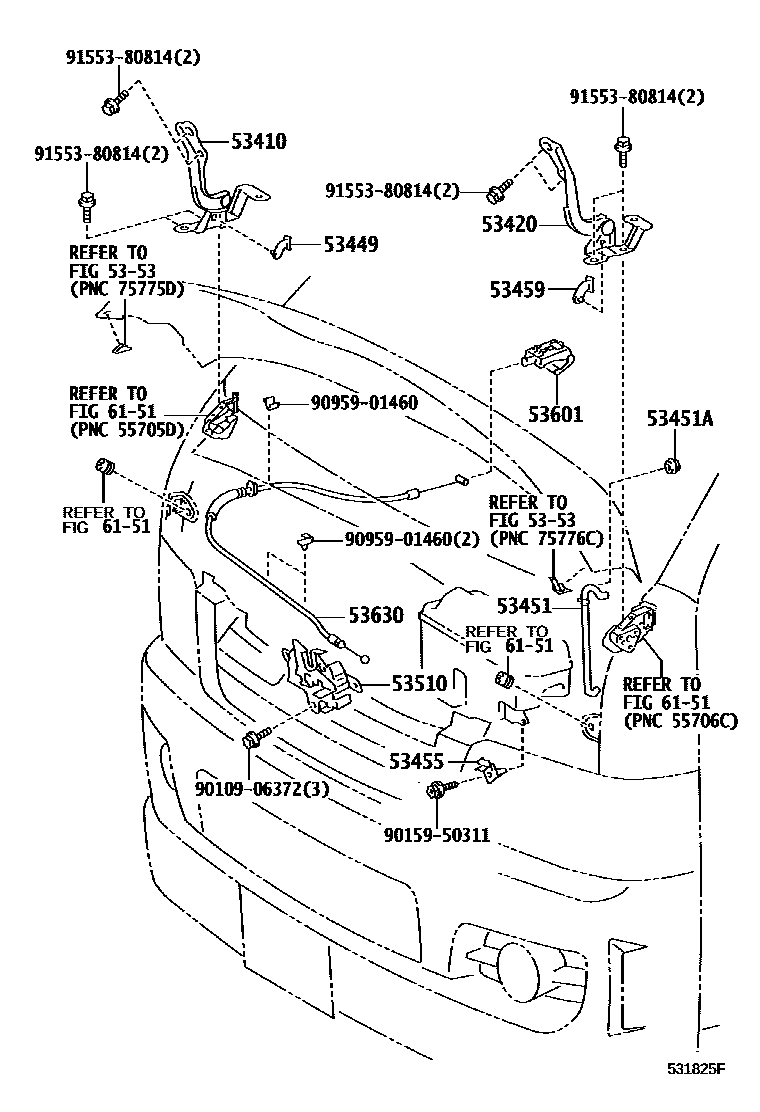

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-26040iKDH20#,211,22#,TRH200,21#,22#200408-201312

53420HINGE ASSY, HOOD, LH

main53420-26040iKDH20#,211,22#,TRH200,21#,22#200408-201312

53449PLATE, HOOD HINGE ARM STOP, RH

main53449-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

53451ROD, HOOD SUPPORT

main53451-26050iKDH20#,211,22#,TRH200,21#,22#200408-201312

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15028iKDH20#,211,22#,TRH200,21#,22#200408-201106

main90480-15034iKDH20#,211,22#,TRH200,21#,22#201107-201312

53455CLAMP, HOOD SUPPORT ROD

main53455-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

53459PLATE, HOOD HINGE ARM STOP, LH

main53459-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

53510LOCK ASSY, HOOD

main53510-26060iKDH20#,211,22#,TRH200,21#,22#200408-201312

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iKDH20#,211,22#,TRH200,21#,22#200408-201312

BLACK,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-26040iKDH20#,TRH200200408-201008

main53630-26041iKDH20#,TRH200201008-201312

main53630-26060iKDH211,22#,TRH21#,22#200408-201008

main53630-26061iKDH211,22#,TRH21#,22#201008-201312

6151SIDE MEMBER

→ Go to FIG 61-51

9010906372

main90109-06372

9015950311

main90159-50311

9095901460

main90959-01460

9155380814

main91553-80814

16 parts on this diagram · 1 diagram in section
