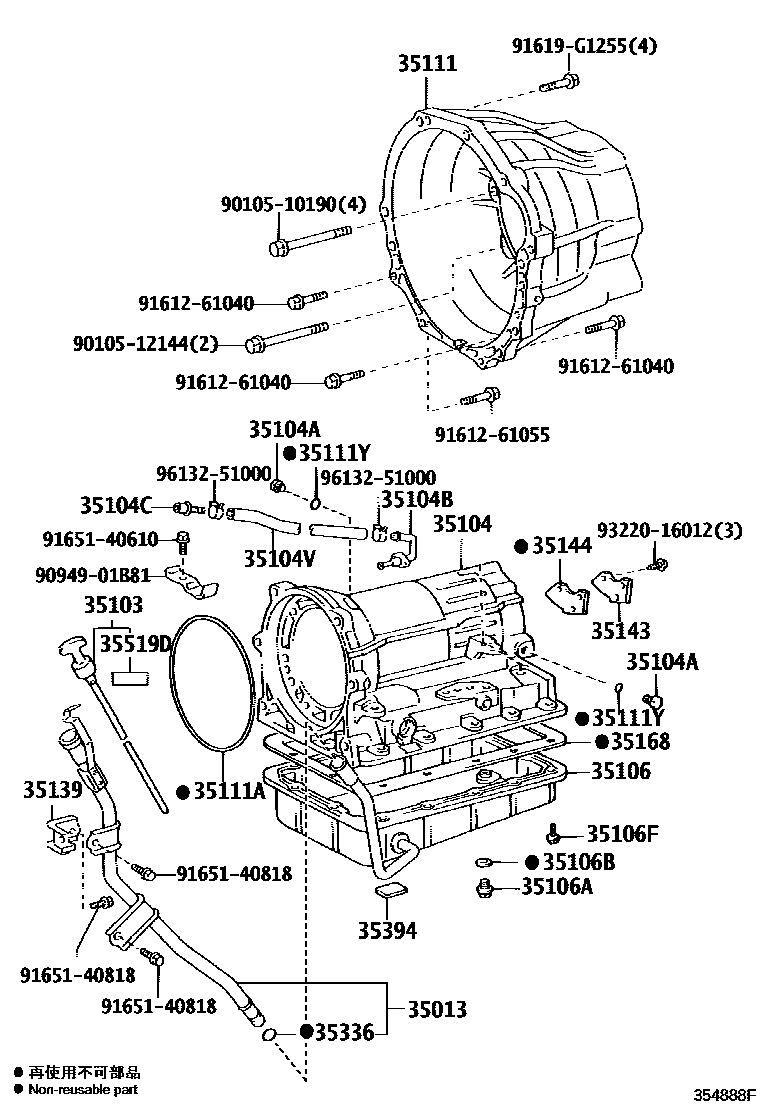

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A45DE 0002 1A343E,A343F 0003 1A340,A340F

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-26360iTRH200..4FC200408-201312

main35013-26370iTRH21#,22#200408-201312

main35013-26380iKDH20#,211,22#..4FC200408-201008

main35013-26390iKDH20#,211,22#..4FC201008-201312

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-26320iTRH200..4FC200408-201312

main35103-26330iTRH211,214,221,223,224200408-201312

main35103-26340iTRH216,219,226,228,229200408-201312

main35103-26350iKDH200,201,211,220,221,222,223..4FC200408-201008

main35103-26360iKDH205,206,225,227..4FC200408-201008

main35103-26380iKDH201,211,22#..4FC201008-201312

main35103-26390iKDH206..4FC201008-201312

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22060iTRH200..4FC200408-201312

main35104-26060iKDH20#,22#..4FC200408-200510

main35104-26061iKDH20#,22#..4FC200510-200709

main35104-26070iTRH21#,22#200408-200609

main35104-26071iTRH21#,22#200609-201312

main35104-35022iKDH20#,211,22#..4FC200709-201312

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iKDH20#,211,22#,TRH21#,22#..4FC; TRH200..4FC200408-201312

main90930-03168iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03168iTRH200..4FC200408

35104VHOSE (FOR BREATHER PLUG)

main90445-10020iKDH20#,211,22#..4FC200408-201312

main90445-11118iTRH21#,22#200408-201312

main90445-11145iTRH200..4FC200408-201312

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-25050iTRH200..4FC200408-201312

main35106-26090iKDH201,206,211,221,223..4FC200408-201008

main35106-26100iKDH20#,211,22#..4FC201008-201312

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117×14iTRH200..4FC200408-201301

main90119-06173×14iTRH200..4FC201301-201312

main90119-06513×19iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-26040iKDH20#,211,22#..4FC200408-201312

main35111-26070iTRH200..4FC200408-201312

main35111-71010iTRH21#,22#200408-201312

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iTRH200..4FC200408

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

35139BRACKET, OIL FILLER TUBE

main35139-26020iTRH200,21#,22#..4FC200408-201312

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iTRH200..4FC200408

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-28010iTRH200..4FC200408

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iTRH200..4FC200408

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iKDH20#,211,22#,TRH21#,22#..4FC; TRH200..4FC200408-201312

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

9010510190

main90105-10190

9010512144

main90105-12144

9094901B81

main90949-01B81

9161261040

main91612-61040

9161261055

main91612-61055

91619G1255

main91619-G1255

9165140610

main91651-40610

9165140818

main91651-40818

9322016012

main93220-16012

9613251000

main96132-51000

31 parts on this diagram · 3 diagrams in section
