ABS & VSC

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0011 1 0012 1 0013 1 0014 1 0015 1

85999MBRACKET, RELAY

main85999-26111iKZH10#,12#,RZH100,101..07S,08S,10S199308-199608

88263ARELAY, SKID CONTROL

main88263-24030iKZH10#,11#,12#,13#,RZH101,111199608-199808

main89547-26011iKZH10#,12#,RZH100,101..07S,08S,10S199308-199508

main89547-26030iKZH10#,12#,RZH101..07S,08S,10S199508-199608

89411SENSOR, SPEED

main89542-26010iKZH100,120,RZH100,101..07S,08S,10S199308-199508

main89542-26020iKZH106,116,126199608-199610

main89542-26030iKZH138199608-199808

main89542-26060iKZH100,120,RZH101..07S,08S,10S199508-199608

main89542-26070iKZH106,116,120..4WD199907-200408

main89542-26090iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,133199808-199907

main89542-26110iKZH138,LH168,178,186,188199907-200408

main89543-26010iKZH100,120,RZH100,101..07S,08S,10S199308-199508

main89543-26020iKZH106,116,126199608-199610

main89543-26030iKZH138199608-199808

main89543-26060iKZH100,120,RZH101..07S,08S,10S199508-199608

main89543-26070iKZH106,116,126199610-199907

main89543-26090iKZH100,110,120,132,LH162,172,182,184,RZH10#,11#,12#,133199808-199907

main89543-26110iKZH138,LH168,178,186,188199907-200408

main89545-26011iKZH10#,12#,RZH100,101..07S,08S,10S199308-199608

main89545-26050iKZH10#,11#,12#,13#,RZH101,111199608-199808

main89545-35020iLH16#,17#,18#,RZH102,112,12#199808-199907

main89546-26011iKZH10#,12#,RZH100,101..07S,08S,10S199308-199608

main89546-26050iKZH10#,11#,12#,13#,RZH101,111199608-199808

main89546-35020iLH16#,17#,18#,RZH102,112,12#199808-199907

89540COMPUTER ASSY, SKID CONTROL

main89540-26230iLH162,172,182,184,TRH102,112..COM,V1199907-200408

main89540-26240iLH162,172,RZH102,112..V2199808-199907

main89540-26250iLH168,178,186,188199907-200408

main89540-26370iKZH110199911-200408

main89540-26380iKZH116199911-200408

main89540-26390iRZH111199907-200208

main89540-26400iKZH116199907-200408

main89541-26010iKZH100,120,RZH100,101..07S,08S,10S199308-199508

main89541-26011iKZH100,120,RZH101..07S,08S,10S199508-199608

main89541-26020iKZH106,126..07S,08S,10S199308-199508

main89541-26021iKZH106,126..07S,08S,10S199508-199608

main89541-26030iKZH100,110,120,132,RZH101,111199608-199808

main89541-26040iKZH106,116,126,138199608-199808

main89541-26050iKZH100,110,120,132,RZH101,111,133199808-199907

main89541-26060iKZH106,116,126,138199808-199907

89549BRACKET, SKID CONTROL COMPUTER

main89549-26010iKZH10#,12#,RZH100,101..07S,08S,10S199308-199608

main89549-26020iKZH10#,11#,12#,13#,RZH101,111199608-199808

9161260814

main91612-60814

9165140816

main91651-40816

9165260818

main91652-60818

91652B0618

main91652-B0618

91652B0835

main91652-B0835

9326954010

main93269-54010

9356055016

main93560-55016

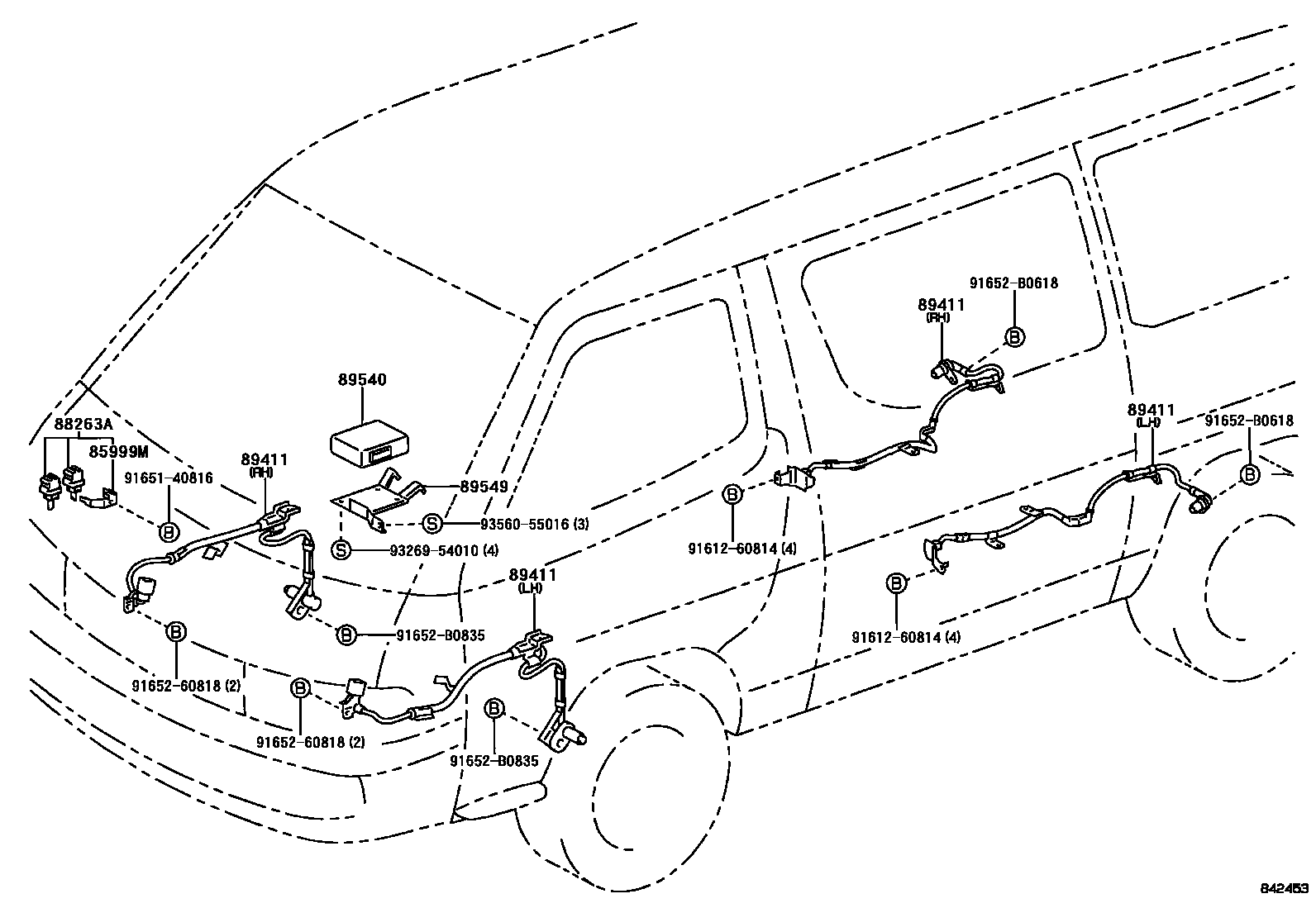

12 parts on this diagram · 13 diagrams in section
