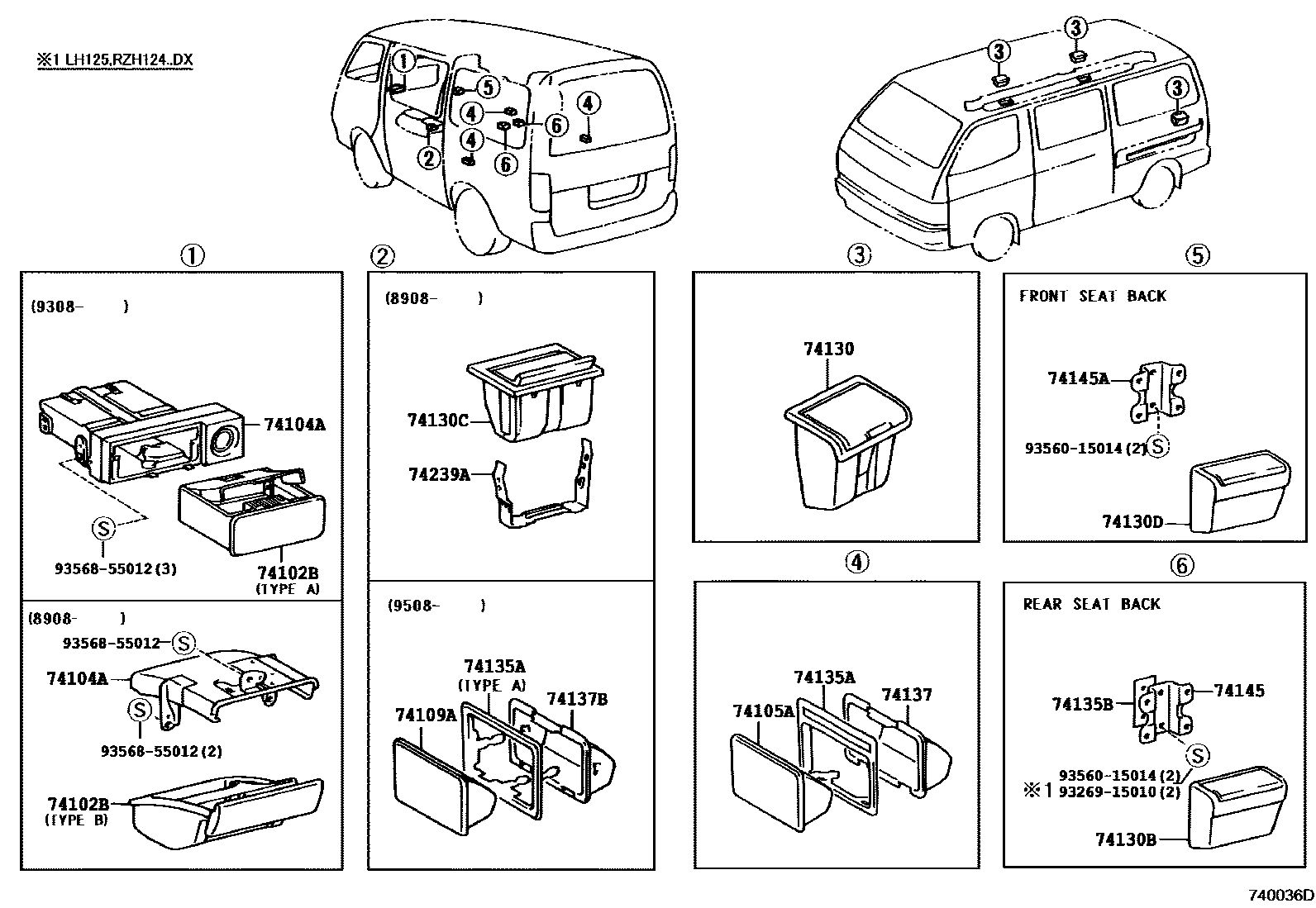

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-26010-C0iKZH10#,LH10#,11#,RZH100,102,112..(SMRF,SRF)..(CD,CTM,DX,GL,SGL); KZH11#,LH125,RZH124; LH113,123,129,RZH112..HRF199308-199508

main74102-95J01-02iLH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S198908-199207

NEW MAROON,TRIM3#

main74102-95J01-03iLH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S198908-199308

GRAY,TRIM1#

main74111-22150iKZH10#,12#,RZH100,101..07S,08S,10S199308-199608

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-95J03iLH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW199205-199301

main74104-95J05iKZH11#,LH16#,17#,18#,RZH102,11#,12#,18#,TRH102,112,12#199907-200501

main74127-22030iKZH10#,11#,12#,13#,RZH101,111,133199808-199907

74105ARECEPTACLE SUB-ASSY, REAR ASH

main74105-10010-12iLH120..GCGE;LH113..09S..5F;LH102..5D..5F..GL;LH102..4D..(DX,SGL);LH113..V1..4D..(05S,06S);LH100,109,110,115,117,119,125,RZH100,102,11#,124..(COM,V1,WG)..4D..(DX,GL,SGL)198908-199207

NEW MAROON,TRIM3#

main74105-10010-33iLH100,RZH100,101..CTM; LH102..5F..GL;LH102..4D..(DX,SGL);LH100,109,110,113,119,123,129,140,RZH100,102,11#,122..4D..(DX,GL,SGL,SW)198908-199308

GRAY,TRIM1#

main74105-10010-B0iKZH11#,LH16#,17#,18#,RZH102,11#,12#,18#,TRH102,112,12#..4D..(DX,GL,SGL,SGLE)199907-200501

BLUISH GRAY,TRIM1#

main74105-10010-E0iLH113..HRF..4D;KZH11#,120,LH12#,RZH124..DX,GCGE,GL199308-199508

ANTELOPE,TRIM4#

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-32010-B3iTRH124..5F;TRH122..SGLE199907-200501

BLUISH GRAY,TRIM1#

main74109-32010-E5iRZH101199907-200208

ANTELOPE,TRIM4#

74130RECEPTACLE ASSY, REAR ASH

main74130-26010-02×3iLH100,107,RZH100,101..07S,08S198912-199308

NEW MAROON,TRIM3#

main74130-26010-03×3iLH100,107,RZH100,101..08S198912-199308

GRAY,TRIM1#

main74130-26010-B0×3iRZH101..08S199907-200208

BLUISH GRAY,TRIM1#

main74130-26010-E0×3iRZH101199907-200208

ANTELOPE,TRIM4#

main74130-30180×3iLH100,RZH100,101..SCL198908-198912

74130BRECEPTACLE ASSY, REAR ASH

main74130-95J00-02×2iLH115,125,RZH124; LH120..GCGE;LH110,117,RZH110..DX198908-199308

NEW MARRON,TRIM3#

main74130-95J00-20×3iKZH11#,RZH111; KZH11#..4FC; LH125,184,186,RZH12#199508-199907

main74130-95J00-E0×2iKZH120..GCGE199508-199907

ANTELOPE,TRIM4#

74130CRECEPTACLE ASSY, REAR ASH

main74130-16020-32iLH100,107,110,117,120,125,RZH100,101,110..(07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM)198908-199308

NEW MAROON,TRIM3#

main74130-16020-33iLH119..05S;LH100,102,107,113,RZH100,101..05S,08S198908-199308

GRAY,TRIM1#

main74130-16020-B0iLH119..05S;LH123..06S;KZH10#,LH103,113,RZH100,101..05S,08S199408-199508

BLUISH GRAY,TRIM1#

main74130-16020-E1iKZH10#,11#,12#,LH123,125,RZH100,101..(06S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM)199408-199508

ANTELOPE,TRIM4#

74130DRECEPTACLE ASSY, REAR ASH

main74130-95J00-01iLH102,109,113,119,RZH102,112..5D..06S198908-199308

BLACK,TRIM1#

main74130-95J00-20iLH10#,11#,RZH102,112..SRF..5D..06S; LH113,RZH112..HRF..5D199308-199508

BLACK,TRIM1#; BLACK,TRIM1#,4#

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-10030×3iKZH10#,LH100,RZH100,101..CTM198908-199608

main74135-26010iTRH112..SGL,SGLE;LH184,TRH124..5F..DX;KZH10#,11#,120,13#,LH162,17#,182,188,RZH10#,11#,183,TRH102,122..SG..(03S,05S,07S,08S,10S)199907-200501

74135BRETAINER, REAR ASH RECEPTACLE, NO.2

mainC634295B00×4iKZH11#,12#,LH120..DX,GCGN199205-199508

74137RETAINER, REAR ASH RECEPTACLE, INNER RH

main74137-10030×3iKZH10#,LH100,RZH100,101..CTM198908-199608

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-12010iRZH101,111199907-200208

74145PLATE, REAR ASH RECEPTACLE

main74145-90B00×4iKZH11#; KZH11#,120,RZH111..DX,GCGE; KZH120..GCGN199907-200408

74145APLATE, REAR ASH RECEPTACLE

main74145-90B00iLH102,103,109,113,119,16#,17#,RZH102,112..5D..06S198908-199907

74239AHOLDER, REAR ASH RECEPTACLE

main74239-22020iLH119..05S;KZH10#,11#..07S,08S,10S;KZH12#,LH100,102,103,107,110,113,117,120,125,RZH100,101,110..(05S,07S,08S,10S,15S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)198908-199408

9326915010

main93269-15010

9356015014

main93560-15014

9356855012

main93568-55012

18 parts on this diagram · 1 diagram in section
