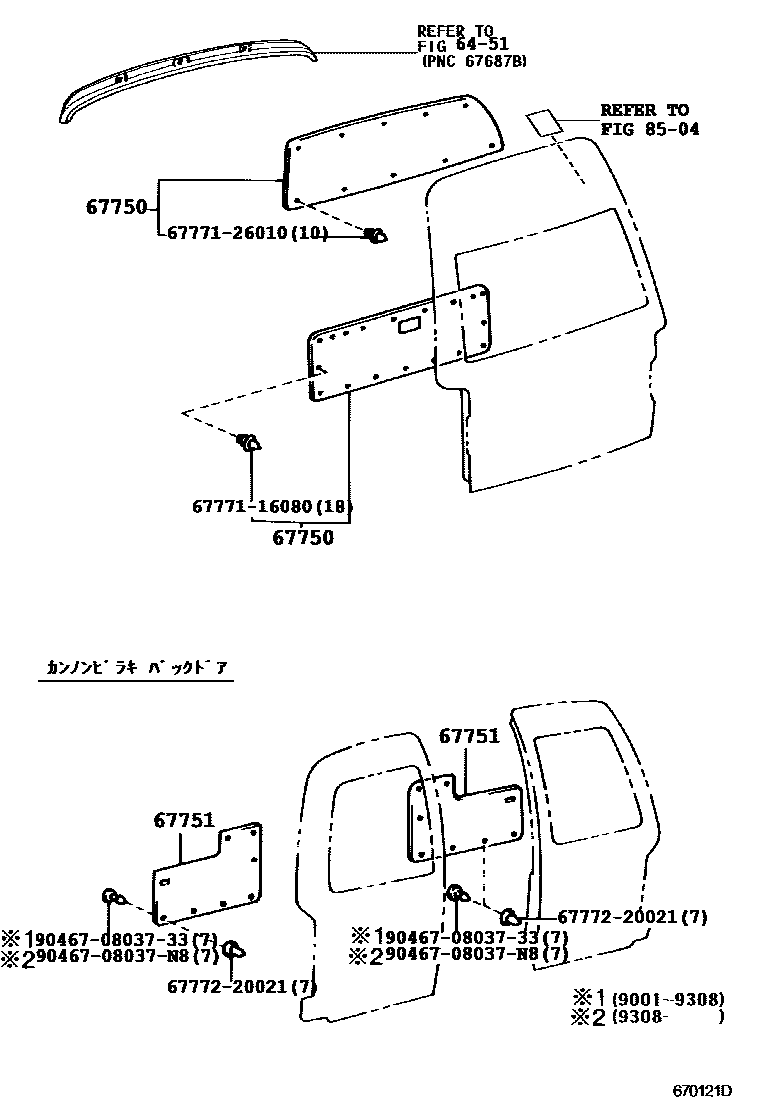

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1��(�������� �������) 0004 1 0005 1���������� 0006 1 0007 1

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

67750BOARD ASSY, BACK DOOR TRIM

main67750-26010-03iLH113..V1..SRF..4D..06S..DX199005-199103

GRAY,TRIM1#

main67750-26010-03iLH119..05S;LH113..V1..SRF..4D..06S..DX199103-199308

main67750-26010-B0iKZH11#199508-200108

main67750-26010-B0iLH119..05S;LH113..V1..SRF..4D..06S..DX199308-199508

main67750-26020-D0iLH120..GCGE,GCGN199205-199308

main67750-26050-E0iKZH12#199308-199408

main67750-26070-B0iKZH10#,RZH100,101..08S199308-200408

BLUISH GRAY,TRIM1#

main67750-26070-E0iKZH10#,RZH101..4FC..SCMM199701-199808

main67750-26070-E0iKZH10#,RZH101..SCMM199907

main67750-26070-E0iKZH10#,RZH101..SCMM199808-199907

main67750-26070-E0iKZH10#,RZH101199308-200408

ANTELOPE,TRIM4#

main67750-26080-B0iKZH13#199706-200408

main67750-26080-B0iLH103,11#,162,17#,RZH102,112..SGL199308-200408

BLUISH GRAY,TRIM1#

main67750-26080-B0iKZH13#199508-200408

main67750-26180-E0iKZH120199608-200408

main67750-26210-B0iKZH13#199608-199907

main67750-26210-B0iKZH13#199907-200408

main67750-26210-B0iRZH133199608-199907

LT. BLUISH GRAY,TRIM1#

main67750-26210-B1iLH125,184,186,RZH12#199608-200501

LT. BLUISH GRAY,TRIM1#

main67750-26290-E0iKZH120199907-200408

main67750-95J06-03iLH102,113,119..SGL198908-199308

GRAY,TRIM1#

main67750-95J07-03iLH102,113,119..SGL198908-199308

main67750-95J08-03iLH100,RZH100,101..CTM198908-199308

GRAY,TRIM1#

main67750-95J08-B0iKZH11#199508-200408

main67750-95J08-B0iKZH10#,RZH100,101..CTM199308-199608

BLUISH GRAY,TRIM1#

main67750-95J08-E0iKZH11#199308-199508

main67750-95J08-E0iKZH12#199408-199608

main67750-95J09-02iLH100,107,RZH100,101..08S198908-199308

NEW MAROON,TRIM3#

main67750-95J09-03iLH100,107,RZH100,101..08S198908-199308

GRAY,TRIM1#

main67750-95J10-08iLH120..DX199205-199308

main67750-95J10-08iLH125,RZH124198908-199308

IVORY,TRIM3#

main67750-95J10-B0iLH125,RZH124,133199508-199608

LIGHT GRAY,TRIM1#

main67750-95J10-E0iLH125,RZH124199308-199508

ANTELOPE,TRIM4#

main67750-95J11-02iLH100,107,RZH101..4FC..SCMM199210-199307

main67750-95J11-02iLH100,107,RZH100,101..SCL198908-199308

NEW MAROON,TRIM3#

main67750-95J13-02iLH120..DX199205-199308

main67750-95J13-02iLH110,117,RZH110..DX198908-199308

NEW MAROON,TRIM3#

main67750-95J13-03iLH100,RZH100..DX198908-199308

GRAY,TRIM1#

main67750-95J13-B1iKZH11#,RZH111199308-200408

BLUISH GRAY,TRIM1#

main67750-95J13-E1iKZH100,11#,RZH100..DX199308-199508

ANTELOPE,TRIM4#

mainC497095B04A0iLH120..GCGE,GCGN199205-199308

mainC497095B04E0iKZH12#199308-199907

67751BOARD, BACK DOOR TRIM

main67751-95J03iLH113..V1..SRF..4D..06S..5F..DX199001-199508

main67751-95J04iLH113..V1..SRF..4D..06S..5F..DX199001-199508

8504REAR WASHER

→ Go to FIG 85-04

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

6777126010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-26010

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

904670803733

main90467-0803733

9046708037N8

main90467-08037N8

9 parts on this diagram · 7 diagrams in section
