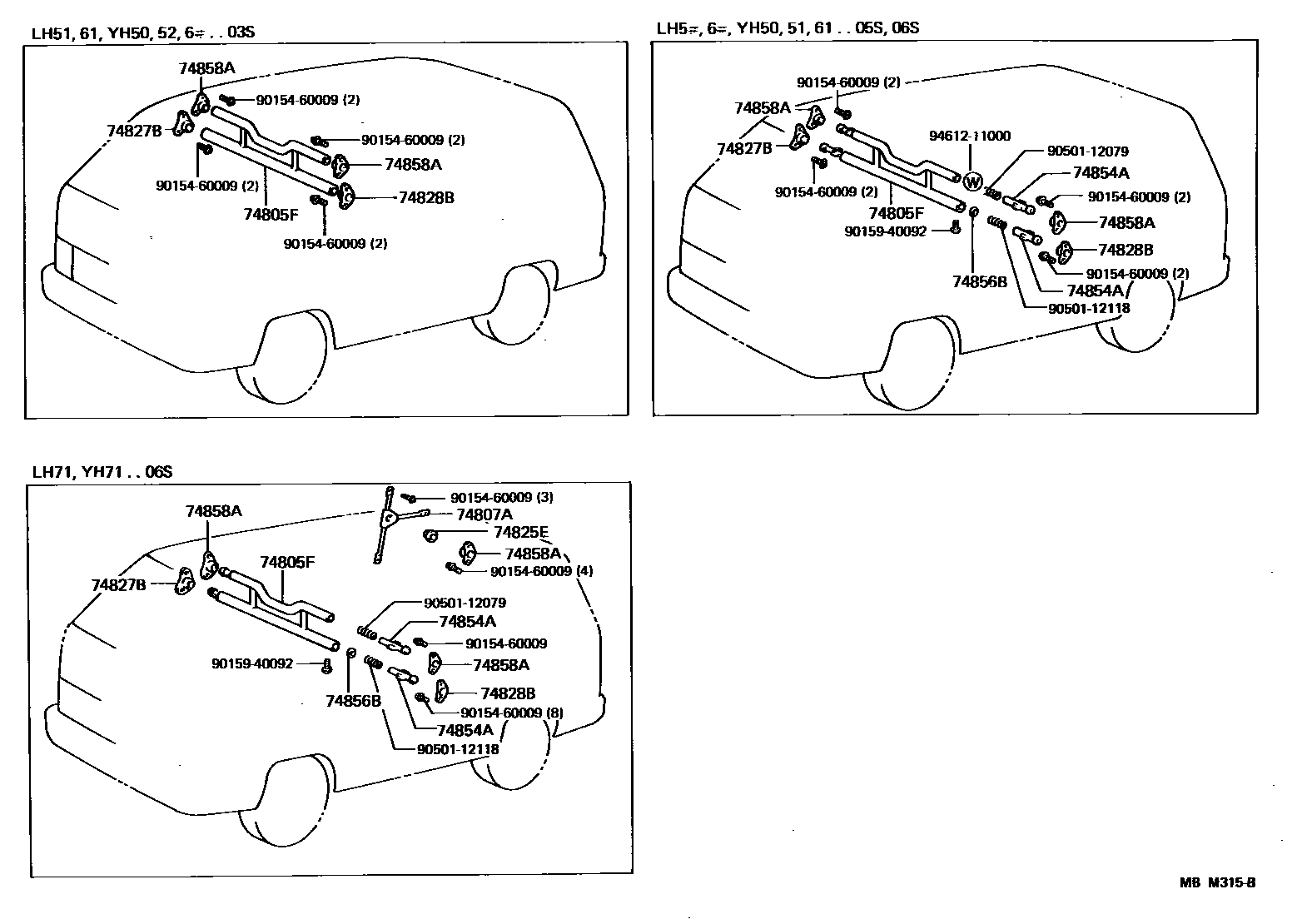

SEPARATOR & SEPARATOR CURTAIN

0001 1 0002 1 0003 1

74805FBAR SUB-ASSY, SEPARATOR, A

main74805-95J11-04iLH5#,6#,YH50,51,61..(GL,SGL)..05S198708-198908

BLUE,TRIM8#

main74805-95J11-06iLH5#,6#,YH50,61..SRF..DX..(05S,06S)198708-198908

BROWN,TRIM4#

main74805-95J12-06iLH61,71,YH61,71..HRF..06S198708-198908

BROWN,TRIM4#

main74805-95J13-04iLH61,YH61..GL..09S198708-198908

BLUE,TRIM8#

main74805-95J13-06iLH51,61,71,YH50,52,6#,71..V..(CD,DX)..(03S,09S)198708-198908

BROWN,TRIM4#

main74805-95J14-04iLH66..SGL..08S198708-198908

BLUE,TRIM8#

main74805-95J14-06iLH66..DX..08S198708-198908

BROWN,TRIM4#

74807ABAR SUB-ASSY, REAR SEPARATOR

main74807-95J01iLH71,YH71..06S198708-198908

74825EBRACKET, SEPARATOR, RH

main74825-95J00-06iLH71,YH71..06S198708-198908

BROWN,TRIM4#

74827BBRACKET, SEPARATOR BAR, RH

main74835-90C01-06iLH71,YH71..09S198708-198908

main74867-95J00-04iLH61,YH61..GL..09S198708-198908

main74867-95J00-04iLH61,YH61..GL..09S198708-198908

BLUE,TRIM8#

main74867-95J00-06iLH61,71,YH61,71..DX..09S198708-198908

main74867-95J00-06iLH61,71,YH61,71..DX..09S198708-198908

BROWN,TRIM4#

main74878-95J00-06iLH66..DX..08S198708-198908

BROWN,TRIM4#

main74878-95J00-06iLH66..DX..08S198708-198908

main74878-95J00-14iLH66..SGL..08S198708-198908

BLUE,TRIM8#

main74878-95J00-14iLH66..SGL..08S198708-198908

74828BBRACKET, SEPARATOR BAR, LH

main74878-95J00-06iLH66..DX..08S198708-198908

BROWN,TRIM4#

main74878-95J00-06iLH66..DX..08S198708-198908

main74878-95J00-14iLH66..SGL..08S198708-198908

BLUE,TRIM8#

main74878-95J00-14iLH66..SGL..08S198708-198908

main74879-95J01-04iLH61,YH61..GL..09S198708-198908

main74879-95J01-04iLH61,YH61..GL..09S198708-198908

BLUE,TRIM8#

main74879-95J01-06iLH51,61,YH50,52,6#..03S198708-198908

BROWN,TRIM4#

main74879-95J01-06iLH51,61,YH50,52,6#..03S198708-198908

74854ASTOP, SEPARATOR

main74854-95J01-06iLH6#,71,YH61,71..DX..(08S,09S)198708-198908

BROWN,TRIM4#

main74854-95J01-14iLH66..SGL..08S;LH61,YH61..GL..09S198708-198908

BLUE,TRIM8#

main74854-95J04-04iLH5#,6#,YH50,51,61..(GL,SGL)..05S198708-198908

main74854-95J04-06iLH5#,6#,YH50,61..SRF..DX..(05S,06S)198708-198908

main74854-95J05-04iLH5#,6#,YH50,51,61..(GL,SGL)..05S198708-198908

main74854-95J05-06iLH5#,6#,YH50,61..SRF..DX..(05S,06S)198708-198908

74856BPLATE, SPRING SET

main74856-95A00iLH5#,6#,YH50,51,61..SRF..(05S,06S)198708-198908

74858ABRACKET, SEPARATOR BAR, UPPER

main74851-95J01-04iLH61,YH61..GL..09S198708-198908

BLUE,TRIM8#,FR RH

main74851-95J01-04iLH61,YH61..GL..09S198708-198908

main74851-95J01-06iLH51,61,YH50,52,6#..03S198708-198908

main74851-95J01-06iLH51,61,YH50,52,6#..03S198708-198908

BROWN,TRIM4#,FR RH

main74851-95J02-06iLH61,71,YH61,71..HRF..06S198708-198908

BROWN,TRIM4#,RR RH

main74852-95J00-04iLH61,YH61..GL..09S198708-198908

BLUE,TRIM8#,FR LH

main74852-95J00-04iLH61,YH61..GL..09S198708-198908

main74852-95J00-06iLH61,YH61..DX..09S;LH61,71,YH61,71..HRF..VSG198708-198908

main74852-95J00-06iLH51,61,YH50,52,6#..03S198708-198908

BROWN,TRIM4#,FR LH

main74852-95J01-06iLH61,71,YH61,71..HRF..06S198708-198908

BROWN,TRIM4#,RR LH

main74858-95J03-04iLH66..DX..08S198708-198908

main74858-95J03-04iLH61,71,YH61,71..DX..09S198708-198908

BLUE,TRIM4#

main74858-95J03-06iLH61,71,YH61,71..DX..09S198708-198908

main74858-95J03-06iLH66..DX..08S198708-198908

BROWN,TRIM4#

9015460009

main90154-60009

9015940092

main90159-40092

9050112079

main90501-12079

9050112118

main90501-12118

9461211000

main94612-11000

13 parts on this diagram · 3 diagrams in section
