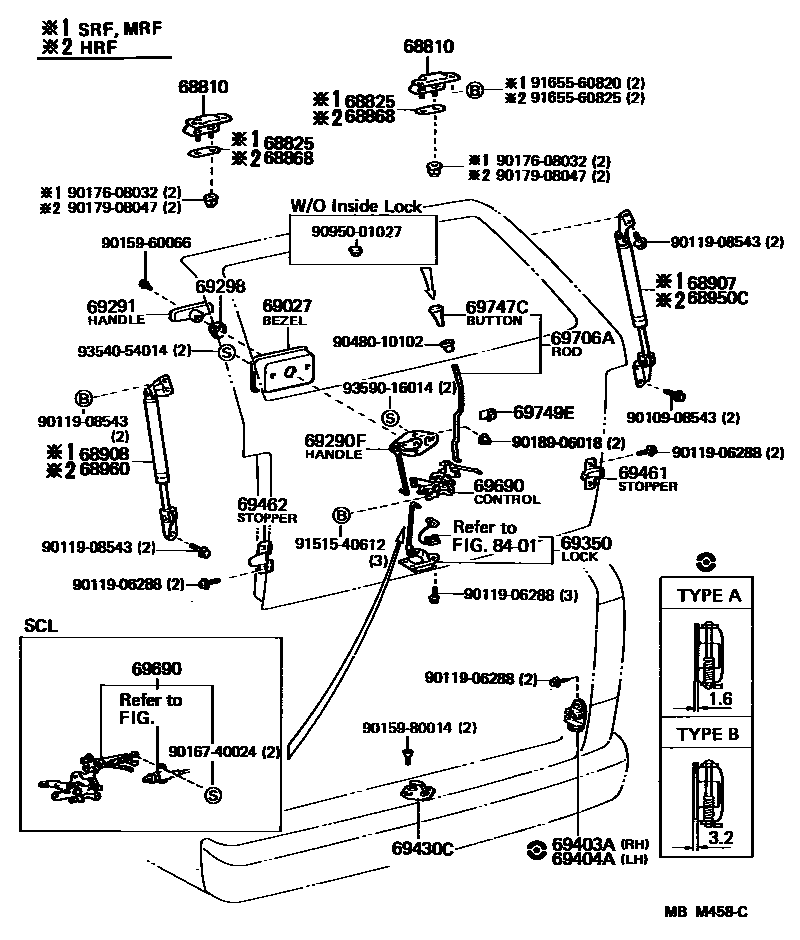

BACK DOOR LOCK & HINGE

68810HINGE ASSY, BACK DOOR, UPPER

main68810-90C00iLH61,71,YH61,71..HRF198708-198908

main68810-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF198708-198808

main68810-95J01iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF198808-198908

main68820-90C00iLH61,71,YH61,71..HRF198708-198908

main68820-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF198708-198808

main68820-95J01iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF198808-198908

68825PLATE, BACK DOOR HINGE

main68825-95700×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF198708-198908

68868SEAL, BACK DOOR HINGE

main68868-90C01×2iLH61,71,YH61,71..HRF; LH66..V4D..DX..05S198708-198808

main68868-95J00×2iLH61,71,YH61,71..HRF; LH66..V4D..DX..05S198808-198908

68907STAY SUB-ASSY, BACK DOOR DAMPER, RH

main68907-95J00iLH5#,6#,YH50,51,52,6#..SRF..(CD,DX)198708-198908

main68907-95J01iLH5#,6#,YH50,52,6#..(COM,V)..SRF..(CD,DX); LH51,YH51,61..WG..DX; LH61..10S; LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCL,SCM,SGL198708-198908

main68907-95J07iLH51..VSG;LH61..VSG..03S;LH56,66..V5D..DX;YH5#,6#..MRF,SRF;LH61..SRF..(DX,GL,SGL);LH56,66..(GL,SGL)..05S;LH51,66..(CTM,DX,SCL,SCM,SGL)..(07S,08S,09S); LH56,66..V4D..DX..05S198709-198908

68908STAY SUB-ASSY, BACK DOOR DAMPER, LH

main68908-95J00iLH5#,6#,YH50,51,52,6#..SRF..(CD,DX)198708-198908

main68908-95J01iLH5#,6#,YH50,52,6#..(COM,V)..SRF..(CD,DX); LH51,YH51,61..WG..DX; LH61..10S; LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCL,SCM,SGL198708-198908

main68908-95J07iLH51..VSG;LH61..VSG..03S;LH56,66..V5D..DX;YH5#,6#..MRF,SRF;LH61..SRF..(DX,GL,SGL);LH56,66..(GL,SGL)..05S;LH51,66..(CTM,DX,SCL,SCM,SGL)..(07S,08S,09S); LH56,66..V4D..DX..05S198709-198908

68950CSTAY ASSY, BACK DOOR, RH

main68950-90C01iLH61,71,YH61,71..HRF; LH66..V4D..DX..05S198708-198908

main68950-90C02iLH66..V4D..DX..05S; LH71..DX..(10S,15S); LH71..GL;LH71..VSG;LH61,YH61,71..HRF198708-198908

main68950-90C05iYH71..15S198708-198908

main68950-90C06iYH71..15S198708-198908

68960STAY ASSY, BACK DOOR, LH

main68960-90C01iLH61,71,YH61,71..HRF; LH66..V4D..DX..05S198708-198908

main68960-90C02iLH66..V4D..DX..05S; LH71..DX..(10S,15S); LH71..GL;LH71..VSG;LH61,YH61,71..HRF198708-198908

main68960-90C05iYH71..15S198708-198908

main68960-90C06iYH71..15S198708-198908

69027BEZEL SUB-ASSY, BACK DOOR INSIDE HANDLE

main69783-95J00-14iLH51,6#..SGL198708-198908

BLUE,TRIM8#

main69783-95J00-26iLH66..V4D..DX..05S198712-198801

BROWN,TRIM4#

69290FHANDLE ASSY, BACK DOOR INSIDE

main69290-95J00iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-95J00-14iLH66..SGL..08S;LH5#,6#,YH50,51,61..(GL,SGL)..(05S,09S)198708-198908

BLUE,TRIM8#

main69291-95J00-26iLH71..5H;LH5#,6#,YH50,52,6#,71..(COM,V)..(CD,DX)198708-198908

BROWN,TRIM4#

69298COVER, BACK DOOR INSIDE HANDLE

main69298-95J00iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)198708-198908

69350LOCK ASSY, BACK DOOR

main69350-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-95J02iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main69403-95J04iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69404-95J02iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main69404-95J04iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

69430CSTRIKER ASSY, BACK DOOR LOCK

main69450-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-95J02iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

69462STOPPER, BACK DOOR SIDE MALE, LH

main69462-95J02iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-95J00iLH51,61,71,YH51,57,61..WG..(08S,09S,10S)198708-198908

main69690-95J01iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

main69690-95J02iLH51..08S..TD; YH51..MRF..4FC..08S198801-198908

69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL

main69706-95J00iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)

main69747-20020-01iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

BLACK,TRIM4#,8#

69749ECLAMP, BACK DOOR LOCK LINK

main69749-30020iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010908543

main90109-08543

9011906288

main90119-06288

9011908543

main90119-08543

9015960066

main90159-60066

9015980014

main90159-80014

9016740024

main90167-40024

9017608032

main90176-08032

9017908047

main90179-08047

9018906018

main90189-06018

9048010102

main90480-10102

9095001027

main90950-01027

9151540612

main91515-40612

9165560820

main91655-60820

9165560825

main91655-60825

9354054014

main93540-54014

9359016014

main93590-16014

38 parts on this diagram · 1 diagram in section
