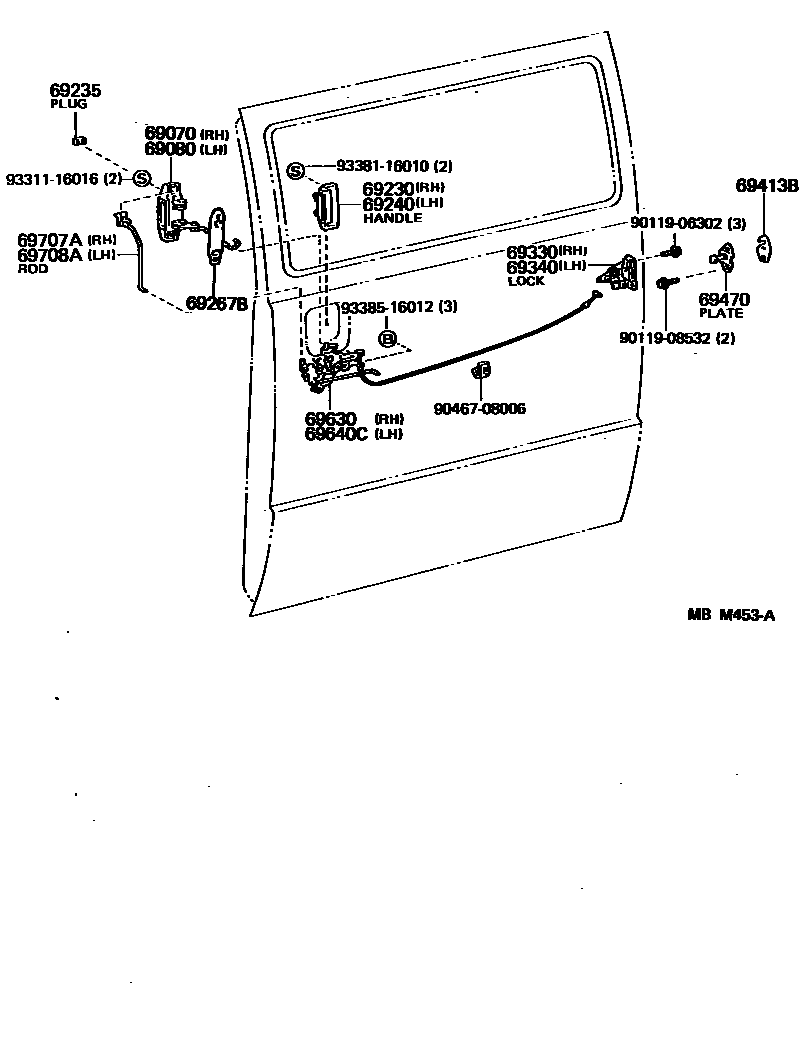

REAR DOOR LOCK & HANDLE

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-95J02-04iLH5#,6#,YH50,51,61..V5D..GL198708-198908

BLUE,TRIM8#

main69070-95J02-06iLH5#,6#,YH50,61..V5D..(CD,DX)198708-198908

BROWN,TRIM4#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-95J02-04iLH61,YH61..10S;LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198709-198908

BLUE,TRIM8#

main69080-95J02-06iLH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM198708-198908

BROWN,TRIM4#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-87003iLH5#,6#,YH50,51,61..V5D198708-198712

main69230-95J00iLH5#,6#,YH50,51,61..V5D198801-198908

69235PLUG, SLIDE DOOR INSIDE HANDLE CASE

main69235-95J00-14×2iLH61,YH61..10S;LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198709-198908

BLUE,TRIM8#

main69235-95J00-16×2iLH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM198708-198908

BROWN,TRIM4#

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-87002iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198712

main69240-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198801-198908

69267BPAD, SLIDE DOOR INSIDE HANDLE

main69267-95J00iLH5#,6#,YH50,51,61..V5D; LH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S198801-198908

69330LOCK ASSY, REAR DOOR, RH

main69330-87001iLH51..SGL;LH5#,6#,YH50,51,61..V5D198708-198908

69340LOCK ASSY, REAR DOOR, LH

main69340-87001iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

69413BSHIM, DOOR LOCK STRIKER

main69413-87002iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-87001iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-95J00iLH5#,6#,YH50,51,61..V5D198708-198908

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL198708-198908

main69640-95J02iLH51..08S..TD; YH51..MRF..4FC..08S198801-198908

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-95J00-06iLH5#,6#,YH50,61..V5D..(CD,DX)198708-198908

BROWN,TRIM4#

main69707-95J00-14iLH5#,6#,YH50,51,61..V5D..GL198708-198908

BLUE,TRIM8#

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-95J00-14iLH51,YH51,57..CTM,SCM198708-198709

BLUE,TRIM8#

main69708-95J00-16iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

BROWN,TRIM4#,8#

9011906302

main90119-06302

9011908532

main90119-08532

9046708006

main90467-08006

9331116016

main93311-16016

9338116010

main93381-16010

9338516012

main93385-16012

20 parts on this diagram · 1 diagram in section
