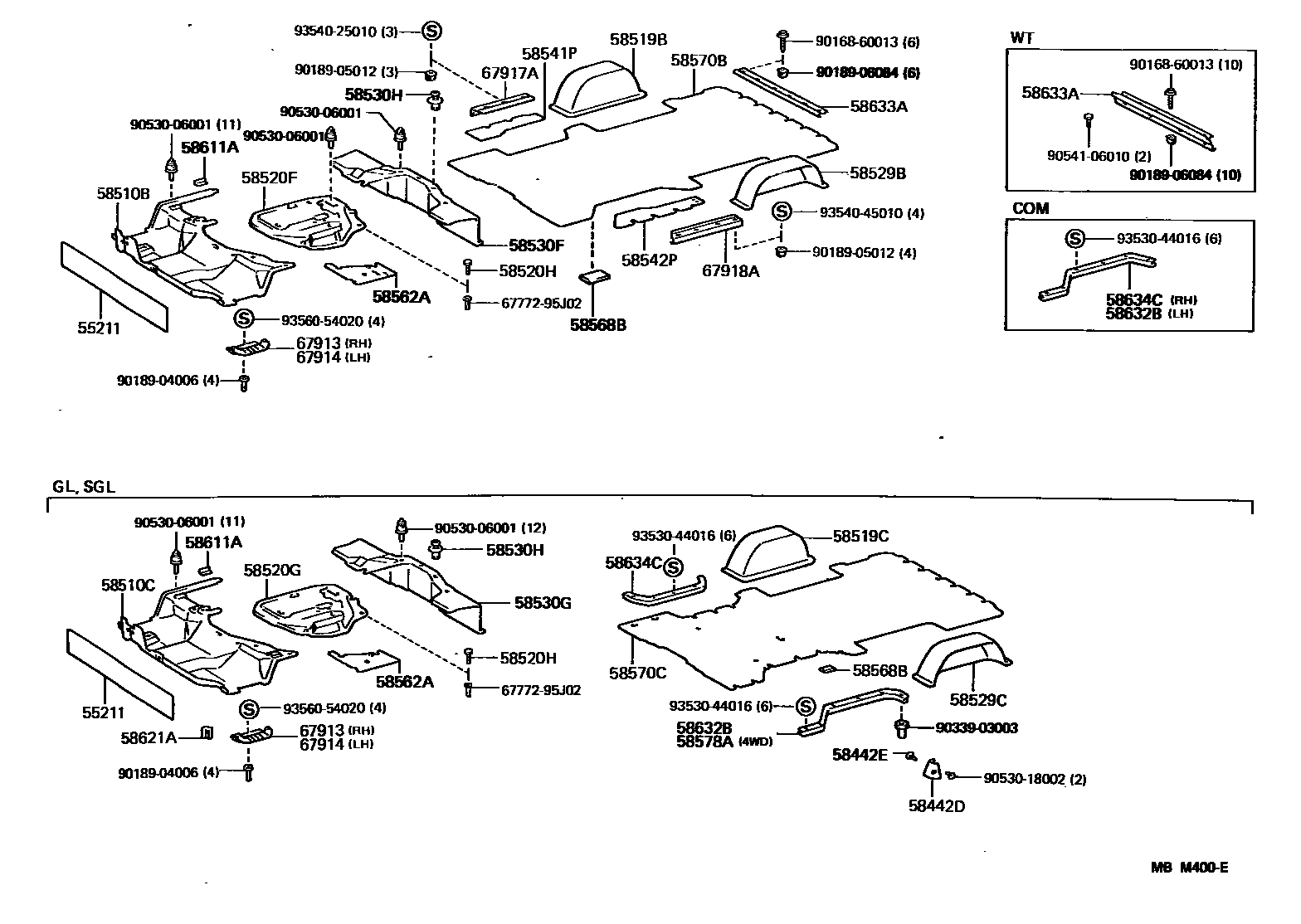

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

55211SILENCER, FRONT PANEL

main55211-95J00iLH51,61,71,YH51,57,61..WG; LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

58442DCOVER, JACK

main58442-95J03-04iLH51,61,YH51..CTM,SCM,SGL198708-198908

BLUE,TRIM8#

main58442-95J03-06iLH51,71,YH51..(GL,SCM)..(08S,15S); LH61..10S; LH71..DX..15S; YH71..15S198708-198908

main58442-95J05-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main58442-95J06-04iLH66,YH57..SCM,SGL198708-198908

BLUE,TRIM8#

main58442-95J06-06iYH57198708-198908

BROWN,TRIM4#

58442ECLIP(FOR JACK COVER)

main90467-09064-01×2iLH61..10S; LH71..DX..15S; LH71..GL;LH51,61,YH51..CTM,SCL,SCM,SGL; YH71..15S198708-198908

58510BMAT, FRONT FLOOR, FRONT

main58510-95J35-04iLH61,YH61..10S198709-198908

BLUE,TRIM8#

main58510-95J35-06iLH61,71,YH61..10S198708-198908

BROWN,TRIM4#

main58510-95J41-04iLH61..10S; YH61..10S198808-198908

main58510-95J41-06iLH61..10S; LH71..10S; YH61..10S198808-198908

main58510-95J52-06iLH51,61,71,YH50,51,52,6#,71..(4HC,5H)..(CD,DX)198708-198908

BROWN,TRIM4#

main58510-95J53-06iLH51,61,71,YH50,51,52,6#,71..(4HC,5H)..(CD,DX)198708-198808

main58510-95J58-06iLH56,66..DX198708-198908

BROWN,TRIM4#

main58510-95J59-06iLH56,66..DX198808-198908

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-95J36-04iLH51,61,YH51..4FC..(SCM,SGL)198708-198908

BLUE,TRIM8#

main58510-95J36-06iLH51,YH51..4FC..08S198708-198908

BROWN,TRIM4#

main58510-95J37-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main58510-95J43-04iLH51,YH51..4HC..09S198708-198908

BLUE,TRIM8#

main58510-95J45-04iLH51,61,YH51,61..4FC..GL198708-198908

BLUE,TRIM8#

main58510-95J46-04iLH51,61,YH51,61..5H..(CTM,GL)198708-198908

BLUE,TRIM8#

main58510-95J46-06iLH71..GL198708-198908

BROWN,TRIM4#

main58510-95J47-04iLH61..10S198709-198908

main58510-95J47-06iLH61..10S198708-198908

main58510-95J50-04iLH56,66..GL..05S198708-198908

BLUE,TRIM8#

main58510-95J51-04iLH66,YH57..SCM,SGL198708-198908

BLUE,TRIM8#

main58510-95J51-06iYH57198708-198908

BROWN,TRIM4#

main58510-95J54-04iLH51,YH51..5F..08S198708-198908

BLUE,TRIM8#

main58510-95J54-06iLH51,YH51..5F..08S198708-198908

BROWN,TRIM4#

58519BMAT, REAR WHEEL HOUSE, RH

main58519-95J08-04iLH61,YH61..10S198709-198908

BLUE,TRIM8#

main58519-95J08-06iLH71..DX..15S; YH71..15S198810-198908

main58519-95J09-06iLH61..15S198708-198908

BROWN,TRIM4#

main58519-95J12-06iLH71,YH71..DX..15S198708-198810

58519CCARPET, REAR WHEEL HOUSE, RH

main58519-95J14-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main58519-95J15-04iLH51,6#..SGL198708-198908

BLUE,TRIM8#

main58519-95J18-06iLH71..GL198708-198908

BROWN,TRIM4#

main58519-95J19-06iLH71..GL198810-198908

58520FMAT ASSY, ENGINE COVER

main58520-94357iLH66..V4D..DX..05S198801-198908

main58520-95J26-06iLH51,61,71,YH50,51,52,6#,71..(4HC,5H)..(CD,DX)198708-198908

BROWN,TRIM4#

main58520-95J30-06iLH71..DX..15S198708-198709

main58520-95J32-06iLH61,71,YH61..10S198708-198709

BROWN,TRIM4#

main58520-95J39-06iLH56,66..DX198708-198908

BROWN,TRIM4#

main58520-95J47-06iLH71..DX..15S198709-198908

58520GCARPET ASSY, ENGINE COVER

main58520-95J33-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main58520-95J42-04iLH51,61,YH51,61..(CTM,GL)..09S198708-198908

BLUE,TRIM8#

main58520-95J42-06iLH71..GL198708-198908

BROWN,TRIM4#

main58520-95J43-04iLH61..10S198709-198908

BLUE,TRIM8#

main58520-95J43-06iLH61..10S198708-198908

BROWN,TRIM4#

main58520-95J44-04iLH66,YH57..SCM,SGL198708-198802

BLUE,TRIM8#

main58520-95J44-06iYH57198708-198802

BROWN,TRIM4#

main58520-95J45-04iLH56,66..GL..05S198708-198908

BLUE,TRIM8#

main58520-95J46-04iLH51,61..SGL198802-198908

BLUE,TRIM8#

main58520-95J46-06iLH51,YH51..08S198708-198802

BROWN,TRIM4#

main58520-95J49-04iLH51,YH51..08S198802-198908

BLUE,TRIM8#

main58520-95J49-06iLH51,YH51..08S198802-198908

BROWN,TRIM4#

main58520-95J50-04iYH57198802-198908

BLUE,TRIM8#

main58520-95J50-06iYH57198808-198908

BROWN,TRIM4#

58520HCLIP(FOR ENGINE COVER MAT)

main90467-06023-26iLH66..V4D..DX..05S198801-198908

BROWN,TRIM4#

main90467-09010-16iLH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM198708-198908

DARK BROWN,TRIM4#

main90467-09010-24iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198708-198709

BLUE,TRIM8#

main90467-09010-36iLH51,YH51,57..07S,08S198708-198908

BROWN,TRIM4#

58529BMAT, REAR WHEEL HOUSE, LH

main58519-95J08-06iLH71..DX..15S; YH71..15S198810-198908

main58529-95J07-06iLH61..15S; LH71,YH71..DX..15S198810-198908

main58529-95J13-04iLH61,YH61..10S198709-198908

BLUE,TRIM8#

main58529-95J13-06iLH61,YH61..10S198708-198908

BROWN,TRIM4#

58529CCARPET, REAR WHEEL HOUSE, LH

main58519-95J14-14iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

main58519-95J15-04iLH51,6#..SGL198708-198908

BLUE,TRIM8#

main58519-95J19-06iLH71..GL198810-198908

main58529-95J14-06iLH71..GL198708-198908

BROWN,TRIM4#

58530FMAT ASSY, HEADER

main58530-95J19-04iLH61,YH61..10S198709-198908

BLUE,TRIM8#

main58530-95J19-06iLH61,71,YH61..10S198708-198908

BROWN,TRIM4#

main58530-95J41-06iLH56,66..DX198708-198908

BROWN,TRIM4#

main58530-95J46-06iLH51,61..VSP..ST198708-198908

BROWN,TRIM4#

main58530-95J49-06iLH51..DX..09S;LH61..VSG..03S;LH51..VSG..(03S,06S);LH61..(4HC,5H)..DX..ST;LH71,YH50,51,52,6#,71..5H..(CD,DX)..ST198708-198908

BROWN,TRIM4#

main58530-95J50-06iLH61,YH61..06S..WT198708-198908

BROWN,TRIM4#

main58530-95J51-06iLH61..03S..WT198708-198908

BROWN,TRIM4#

58530GCARPET ASSY, HEADER

main58530-95J58-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main58530-95J62-04iLH51,YH51..08S198708-198908

BLUE,TRIM8#

main58530-95J62-06iLH51,YH51..08S198708-198908

BROWN,TRIM4#

main58530-95J63-04iLH51,61..SGL198708-198908

BLUE,TRIM8#

main58530-95J64-04iYH57198708-198908

BLUE,TRIM8#

main58530-95J64-06iYH57198708-198908

BROWN,TRIM4#

main58530-95J65-04iLH51,61,YH50,51,61..GL..05S198708-198908

BLUE,TRIM8#

main58530-95J65-06iLH61..10S198708-198908

main58530-95J66-04iLH51,61,YH51,61..(CTM,GL)..09S198708-198908

BLUE,TRIM8#

main58530-95J66-06iLH71..GL198708-198908

BROWN,TRIM4#

main58530-95J67-04iLH66..SGL198708-198908

BLUE,TRIM8#

main58530-95J68-04iLH56,66..GL..05S198708-198908

BLUE,TRIM8#

main58530-95J69-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198908

58530HCLIP(FOR HEADER MAT & HEADER CARPET)

main90467-08076-04iLH66..SGL..08S;LH61,YH57,61..WG;LH5#,6#,YH50,51,61..(CTM,GL,SGL)..(05S,09S)198709-198908

BLUE,TRIM8#

main90467-08076-06iLH71,YH57;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

BROWN,TRIM4#

main90467-09010-16×2iLH51,YH51..07S,08S; YH57198708-198908

DARK BROWN,TRIM4#; DARK BROWN,TRIM4#,HEADER(RH,LH)

main90467-09010-24×4iLH51,YH51..08S; YH57198708-198908

BLUE,TRIM8#; BLUE,TRIM8#,HEADER(RH,LH)

main90467-09010-36×2iLH51,YH51..07S,08S; YH57198708-198908

BROWN,TRIM4#; BROWN,TRIM4#,HEADER(RH,LH)

58541PMAT, STEP, RH

main58541-95J00-04iLH5#,6#,YH50,51,61..V5D..GL198708-198908

BLUE,TRIM8#

main58541-95J00-06iLH5#,6#,YH50,61..V5D..(CD,DX)198708-198808

BROWN,TRIM4#

58542PMAT, STEP, LH

main58056-95J02-04iLH61,YH61..10S;LH51,YH51..CTM,SCM198709-198908

BLUE,TRIM8#

main58056-95J02-06iLH51,61,71,YH51,61,71..(COM,WG)..(DX,GL,SCM)198708-198908

BROWN,TRIM4#

main58056-95J05-04iLH66,YH57..SCM,SGL198708-198908

BLUE,TRIM8#

main58056-95J05-06iYH57198708-198908

BROWN,TRIM4#

main58542-95J00-04iLH51,61,YH50,51,61..GL,SGL198708-198908

BLUE,TRIM8#

main58542-95J00-06iLH61..03S..WT; LH61..VSP..ST;LH61..VSG..(CD,DX);LH51,71,YH50,52,6#,71..V..(CD,DX)198808-198908

BROWN,TRIM4#

main58542-95J04-04iLH56,66..GL..05S198708-198908

BLUE,TRIM8#

main58542-95J04-06iLH56,66..DX198708-198808

BROWN,TRIM4#

58562ACARPET, FRONT SEAT SIDE, LH

main58562-95J06-04iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main58562-95J06-16iLH51,YH51,57..08S198708-198908

BROWN,TRIM4#

main58562-95J08-04iLH51,6#..SGL198708-198908

BLUE,TRIM8#

main58562-95J09-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

58568BSPACER, REAR FLOOR CARPET

main58568-95J01×2iLH5#,6#,YH50,51,61..V5D..GL; LH51,66,YH51,57..(CTM,SCM,SGL)..(08S,09S);LH5#,6#,YH50,61..V4D..(GL,SGL)..(05S,09S); LH71,YH71..15S198708-198908

50X30

main58568-95J02iLH71,YH71..15S198708-198908

220X25

58570BMAT ASSY, REAR FLOOR

main58050-95J04-04iLH61,YH61..10S198709-198908

BLUE,TRIM8#

main58050-95J04-06iLH61,YH61..10S198708-198908

BROWN,TRIM4#

main58517-95J17-06iYH50..V4D..03S198708-198908

BROWN,TRIM4#

main58517-95J22-06iYH50..V4D..06S198708-198908

BROWN,TRIM4#

main58517-95J23-06iLH51..V4D..06S198708-198908

BROWN,TRIM4#

main58517-95J24-06iYH50..V5D..06S198708-198908

BROWN,TRIM4#

main58517-95J25-06iLH51..V5D..06S198708-198908

BROWN,TRIM4#

main58517-95J28-06iYH50..V4D..06S198708-198808

main58517-95J29-06iYH50..V5D..06S198708-198808

main58517-95J33-06iYH61..V4D..06S..ST198708-198908

BROWN,TRIM4#

main58517-95J34-06iLH61..V4D..06S..ST198708-198908

BROWN,TRIM4#

main58517-95J35-06iYH61..V5D..06S..ST198708-198908

BROWN,TRIM4#

main58517-95J36-06iLH61..V5D..06S..ST198708-198908

BROWN,TRIM4#

main58517-95J39-06iYH61..V4D..WT198708-198908

BROWN,TRIM4#

main58517-95J40-06iLH61..V4D..06S..WT198708-198908

BROWN,TRIM4#

main58517-95J41-06iYH61..V5D..WT198708-198908

BROWN,TRIM4#

main58517-95J42-06iLH61..V5D..WT198708-198908

BROWN,TRIM4#

main58517-95J43-06iYH61..DX..09S198708-198908

BROWN,TRIM4#

main58517-95J44-06iLH61..DX..09S198708-198908

BROWN,TRIM4#

main58517-95J47-06iYH61..SRF..V4D..06S..ST198708-198808

main58517-95J48-06iYH61..DX..09S198708-198808

main58517-95J49-06iLH71,YH71..06S198708-198908

BROWN,TRIM4#

main58517-95J50-06iYH71..09S198708-198908

BROWN,TRIM4#

main58517-95J51-06iLH71..09S198708-198908

BROWN,TRIM4#

main58517-95J56-06iLH66..V4D..DX..05S198708-198908

BROWN,TRIM4#

main58517-95J57-06iLH66..V5D..DX198708-198908

BROWN,TRIM4#

main58517-95J58-06iLH66..DX..08S198708-198908

BROWN,TRIM4#

main58517-95J61-06iLH56..V4D..DX198708-198908

BROWN,TRIM4#

main58517-95J62-06iLH56..V5D..DX198708-198908

BROWN,TRIM4#

main58570-95J78-06iLH71..10S198708-198908

BROWN,TRIM4#

main58570-95N32-06iLH61..15S198708-198908

BROWN,TRIM4#

main58570-95N38-06iLH71,YH71..DX..15S198708-198908

BROWN,TRIM4#

main58570-95N41-06iLH51,YH51..DX..09S198708-198908

BROWN,TRIM4#

main58570-95N56-06iLH51,YH52..V4D..VSG..03S198708-198908

BROWN,TRIM4#

main58570-95N57-06iLH61,YH6#..V4D..VSG..03S198708-198908

BROWN,TRIM4#

main58570-95N58-06iLH61,YH61..V5D..03S198708-198908

BROWN,TRIM4#

main58570-95N88-06iLH51,YH50..V5D..03S198708-198908

BROWN,TRIM4#

58570CCARPET ASSY, REAR FLOOR

main58050-95J02-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

main58050-95J03-04iYH57198708-198908

BLUE,TRIM8#

main58050-95J03-06iYH57198708-198908

BROWN,TRIM4#

main58050-95J05-06iLH51..08S..TD; YH51..MRF..4FC..08S198801-198802

main58050-95J06-04iLH51,YH51..CTM198708-198908

BLUE,TRIM8#

main58050-95J07-04iLH66..SGL..05S198708-198908

BLUE,TRIM8#

main58050-95J08-04iLH66..SGL..08S198708-198908

BLUE,TRIM8#

main58050-95J14-04iLH56..V4D..GL198708-198908

BLUE,TRIM8#

main58050-95J15-04iLH56..V5D..GL198708-198908

BLUE,TRIM8#

main58050-95J16-04iLH66..V4D..GL..05S198708-198908

BLUE,TRIM8#

main58050-95J17-04iLH66..V5D..GL198708-198908

BLUE,TRIM8#

main58050-95J19-06iLH71..GL198708-198908

BROWN,TRIM4#

main58570-95J76-04iLH51..SGL198708-198908

BLUE,TRIM8#

main58570-95J77-04iLH61..SGL198708-198908

BLUE,TRIM8#

main58570-95N01-14iLH51,YH50..V4D..GL198708-198908

BLUE,TRIM8#

main58570-95N02-14iLH51,YH50,51..V5D..05S198708-198908

BLUE,TRIM8#

main58570-95N23-14iLH61,YH61..V4D..GL..05S198708-198908

BLUE,TRIM8#

main58570-95N24-14iLH61,YH61..V5D..05S198708-198908

BLUE,TRIM8#

main58570-95N27-14iLH61,YH61..GL..09S198708-198908

BLUE,TRIM8#

main58570-95N86-04iLH51,YH51..08S198708-198908

BLUE,TRIM8#

main58570-95N86-16iLH51,YH51..08S198708-198908

BROWN,TRIM4#

58578APLATE, REAR FLOOR MAT SUPPORT SIDE, LH

main58578-95J01iLH66,YH57..SCM,SGL198708-198908

main58578-95J02iLH56,66..GL..05S198708-198908

58611APLATE, MAT SET, NO.1 RH

main58621-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

58621APLATE, MAT SET, NO.1 LH

main58621-95J01iLH61..10S; LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,71,YH50,51,57,61..CTM,GL,SCL,SCM,SGL198708-198908

58632BPLATE, REAR FLOOR MAT SET, NO.1 LH

main58632-95J00×3iLH66..V4D..DX..05S198708-198801

main58632-95J01iLH51,61,YH51..SCL,SCM,SGL198708-198908

58633APLATE, BACK DOOR SCUFF

main58633-95J00iLH71;LH61,YH61..(CD,DX)..ST;LH5#,66,YH50,52,62,71..(COM,V)..(CD,DX)198708-198908

main58633-95J01-24iLH51,YH51,57..CTM,SCM198708-198908

BLUE,TRIM8#

main58633-95J01-26iLH51,YH51,57..WG..(DX,SCL,SCM)198708-198908

BROWN,TRIM4#

main58633-95J02iLH61,YH61..WT198708-198908

main58633-95J03iLH66..SGL..08S;LH5#,6#,YH50,51,61..(GL,SGL)..(05S,09S)198708-198908

58634CPLATE, REAR FLOOR MAT SET, NO.1 RH

main58634-95J00iLH5#,6#,YH50,51,61..V5D..GL198708-198908

67913PLATE, FRONT DOOR SCUFF, RH

main67913-95J00-14iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198708-198709

BLUE,TRIM8#

main67913-95J00-16iLH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM198708-198908

BROWN,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-95J00-14iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198708-198709

BLUE,TRIM8#

main67914-95J00-16iLH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM198708-198908

BROWN,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-95J00iLH5#,6#,YH50,51,61..V5D..GL198708-198908

67918APLATE, REAR DOOR SCUFF, LH

main67907-95J00iLH51,61,YH51..SCL,SCM,SGL198708-198908

main67907-95J01iLH66,YH57..SCM,SGL198708-198908

main67918-95J00iYH61,71..VSG..(CD,DX);LH51,61,71,YH50,52,62..03S,06S198808-198908

main67918-95J03iLH56..V4D..DX; LH66..DX..08S;LH56,66..V5D..DX198709-198808

6777295J02WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J02

9016860013

main90168-60013

9018904006

main90189-04006

9018905012

main90189-05012

9018906084

main90189-06084

9033903003

main90339-03003

9053006001

main90530-06001

9053018002

main90530-18002

9054106010

main90541-06010

9353044016

main93530-44016

9354025010

main93540-25010

9354045010

main93540-45010

9356054020

main93560-54020

44 parts on this diagram · 4 diagrams in section
